Corded QR Code Reader 1D 2D Barcode Scanner Portable Wireless Barcode Reader For Inventory
Product Description:

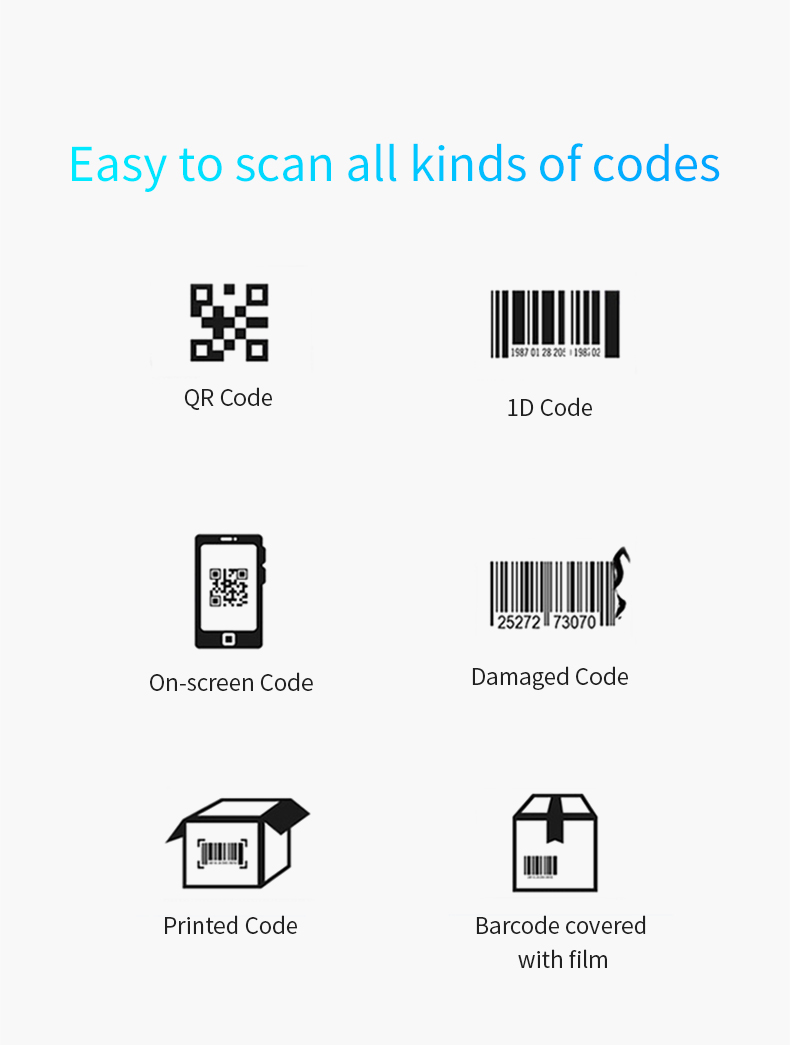

IBC-5100 series wireless barcode scanner is good performance on reading 1D and 2D barcodes. The barcode scanner supports decode most of 1D 2D QR barcodes on labels, paper and screen. With super scanning and decoding ability, it can read incomplete and fuzzy codes. With Excellent Error-Correcting Performance, it can scan the decodes for damaged lncomplete Barcode, fuzzy barcode, twsited wrinkled barcode, reflective barcode, colorful and long barcode etc. It supports the multinational language keyboard. It is widely used in Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.
Product Features:
* Adopts Wired & wireless 2.4G & wireless bluetooth three modes optional.

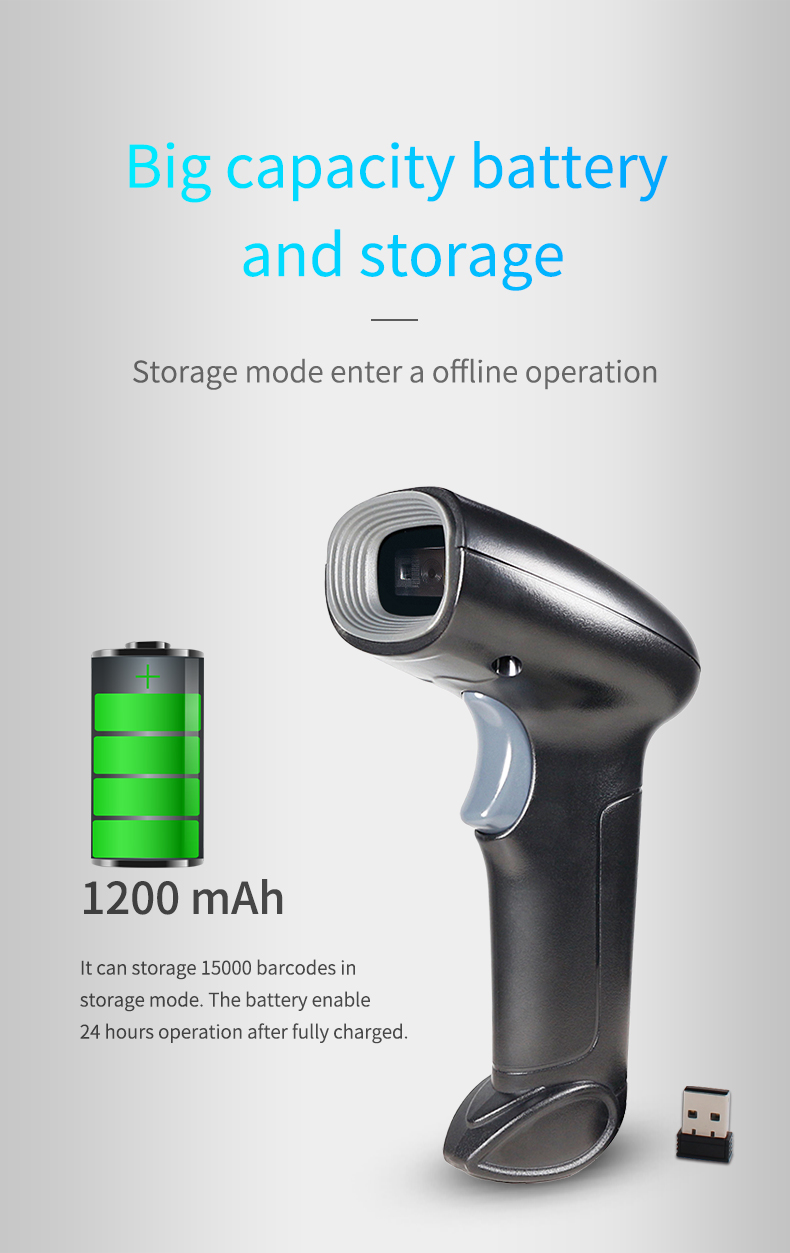

* Large capacity battery, 1800MAH Li-ion battery.
* Plug and play, not need install any procedure.
* Support Multinational keyboard languages

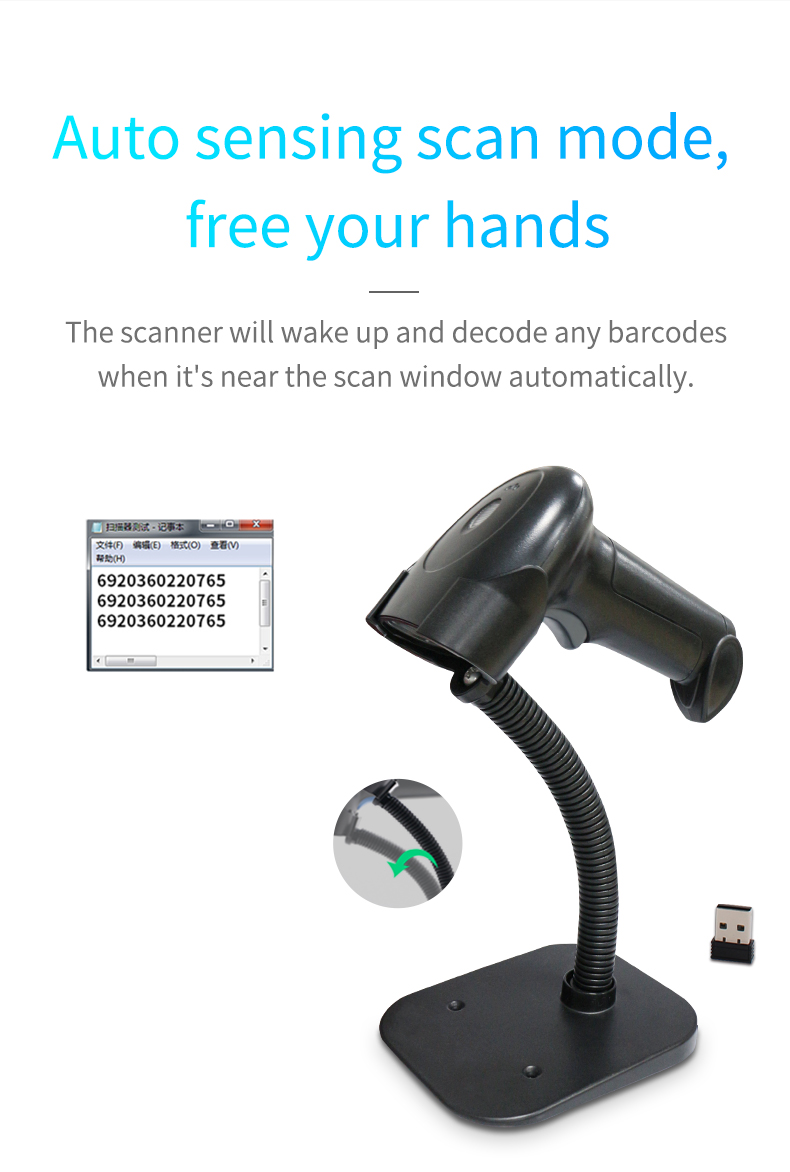

* Supports Handheld/Continuous/Auto-Induction, 3modes for option.
* With advanced CMOS sensor, Global shutter exposure, easily decode most of 1D 2D QR barcodes on labels, paper and screen more accurate.
* Application fields: Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.
Product Specification:
| Product Name | 2D Wireless Barcode Scanner |
| Model | IBC-5100R, IBC-5100RB |
| Performance | |
| Image Sensor | 640*480 CMOS |
| Illumination | White LED |
| Aiming | Red LED |
| Decode Capacities | 1D: Codabar, Code 39, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, Code 11, Code 128, UPC-A, UPC-E, EAN -8, EAN -13, MSI, ISSN, ISBN, GS1 DataBar 2D: PDF417, Micro PDF417, QR Code, Micro QR, Aztec, Data Matrix |
| Resolution | ≥5mil |
| Typical Decode Range | UPC-13 (13mil): 30mm~ 200mm（Barcode Size: 32mm*25mm） |
| PDF417 (6.67mil): 30mm~70mm（Barcode Size: 17mm*12mm） | |
| Code39 (5mil): 30mm~70mm（Barcode Size: 25mm*10mm） | |
| Data Matrix (10mil): 20mm~80mm（Barcode Size: 6mm*6mm） | |
| QR (15mil): 30mm~120mm（Barcode Size: 8mm*8mm） | |
| Minimum Print Contrast | ≥20% |
| Scan Angle | Skew±70°，Pitch±70°，Roll 360° |
| FOV | 52.1°(D) ，43.1°(H) |
| Wireless | |
| Data Transmission Mode | Real Time Mode／Batch Mode |
| Wireless Version | 2.4G/Bluetooth |
| Transmission Distance | ≥60 Meters（2.4G）≥15 m (Bluetooth) (Empty Space) |
| Storage Capacity | ≥15000 bar codes（20 characters Code128 ） |
| Battery Capacity | 2000 mAh |
| Charge Hours | ≤4.5 Hours |
| Operating Hours Per Charge | ≥25 hours（6 sec/scan）（wireless mode） |
| Physical | |
| Interface | USB |

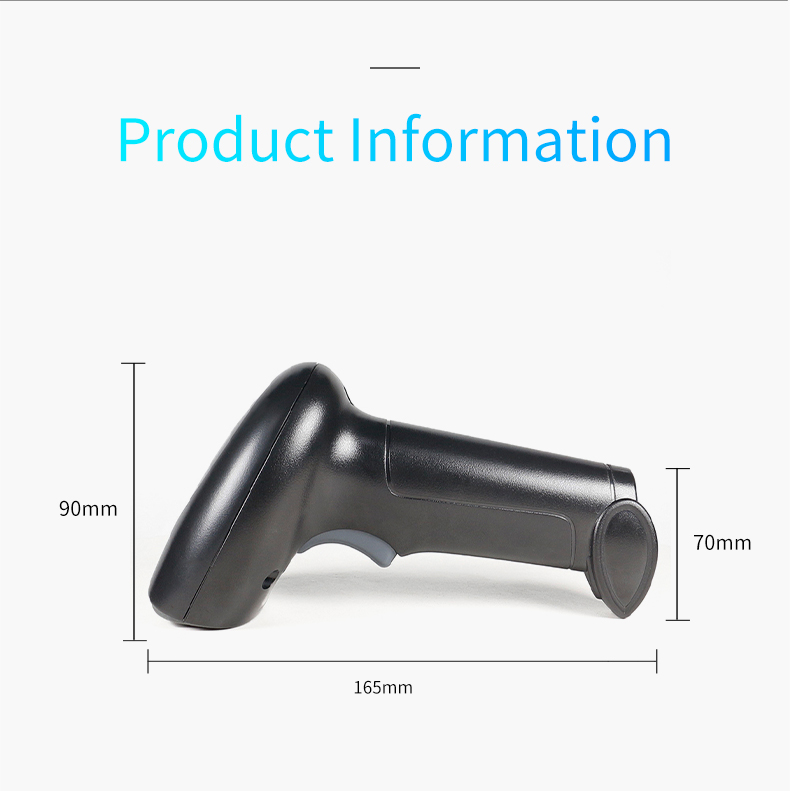

| Dimension(mm) | 165(W)×70(D)×90(H) |
| Net Weight | 136g |

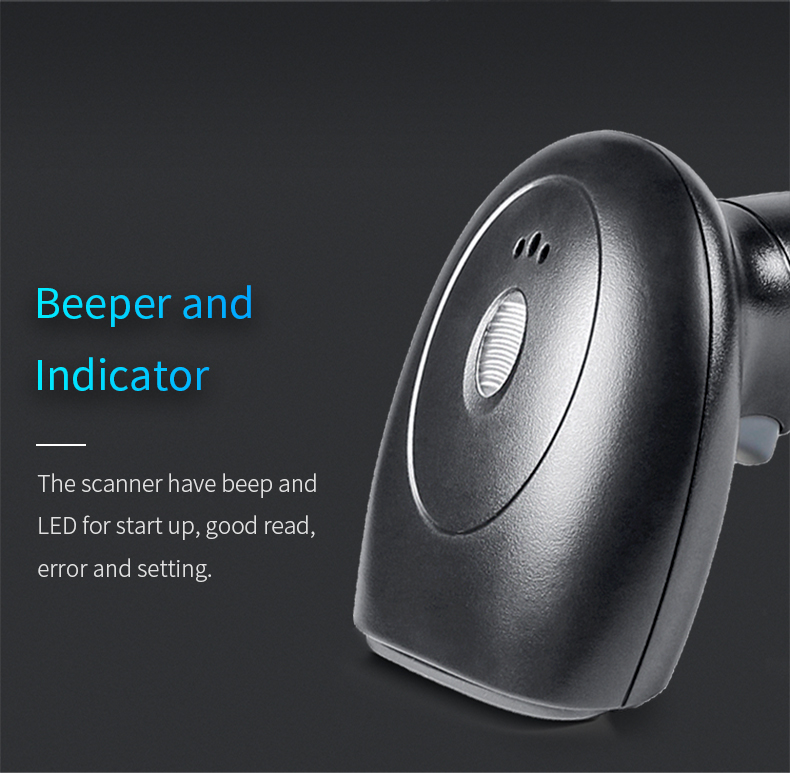

| Indicator/Alarm | Beeper, LED |
| Charging Voltage | 5 VDC±5% |
| Environmental | |
| Operating Temperature | 0℃~+50℃ |
| Storage Temperature | -40℃~+50℃ |
| Humidity | 5%~95%（Non-Condensing） |
| Ambient Light | 0~100,000LUX |
| Accessories | Cable |
| USB Cable | Data Transmission(Wire Mode), Charging |
| Receiver Dongle | Support 2.4G / Bluetooth wireless transmission product matching |

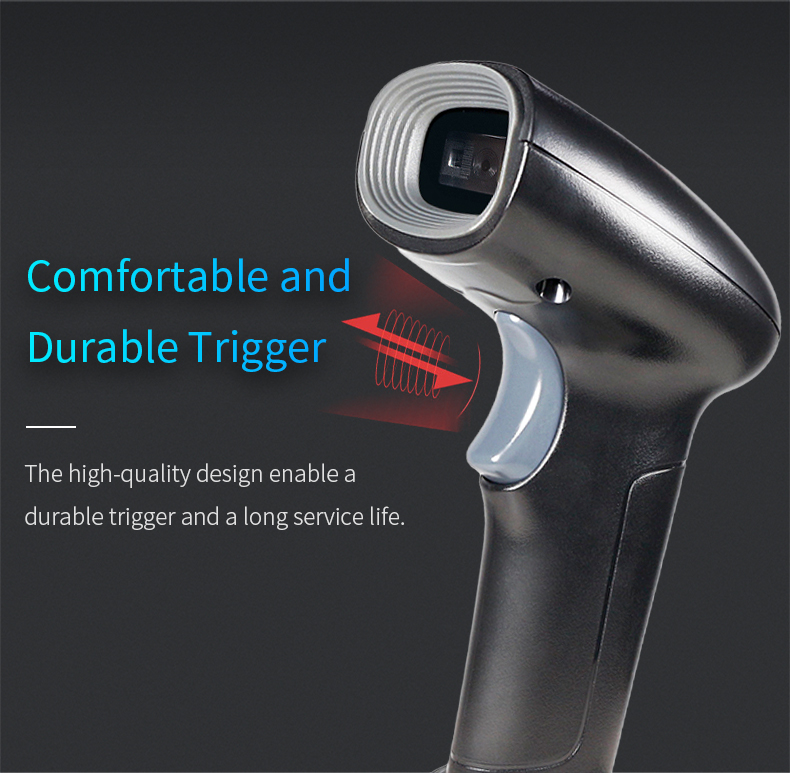

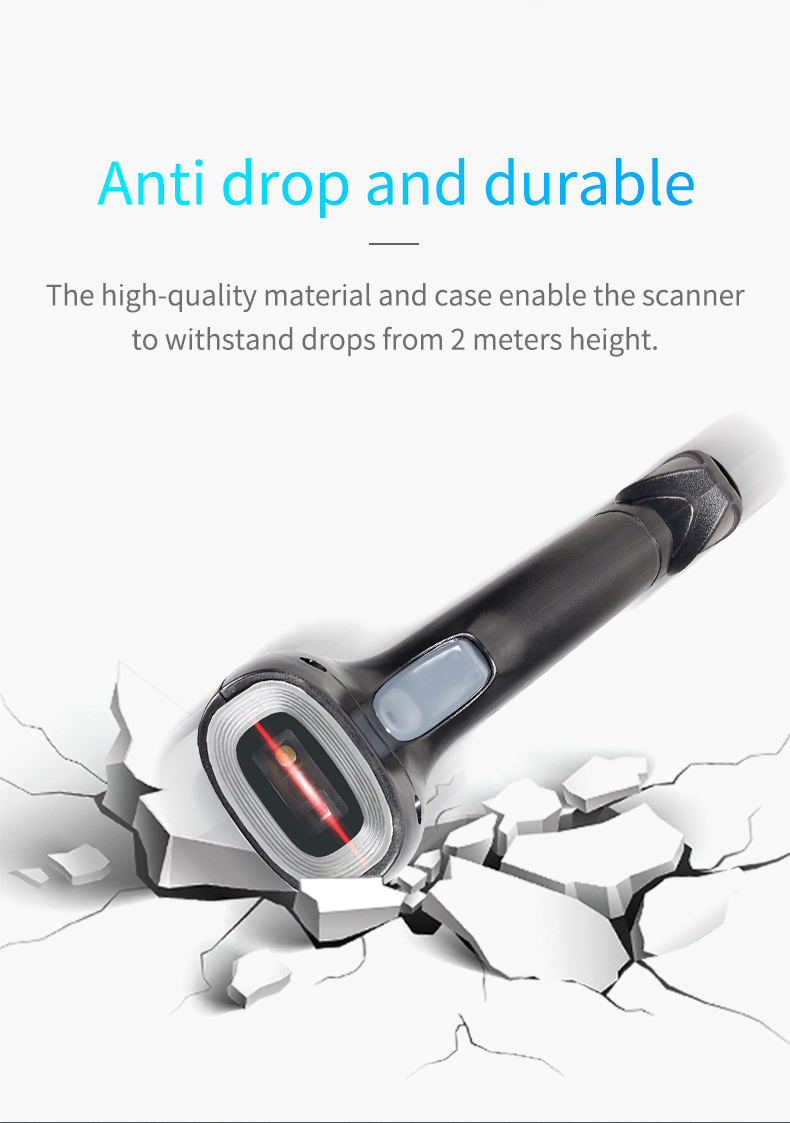

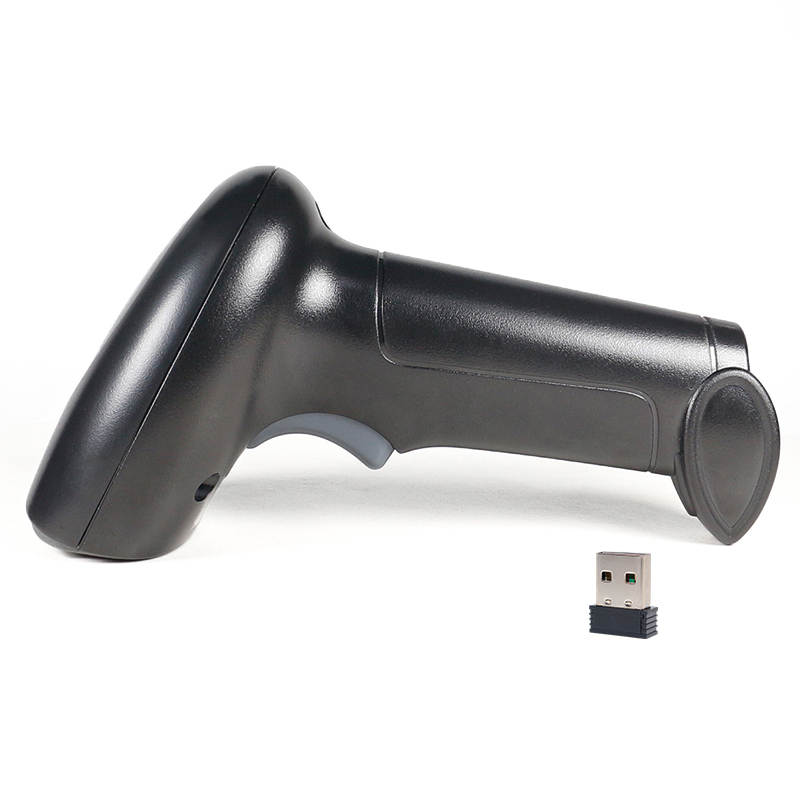

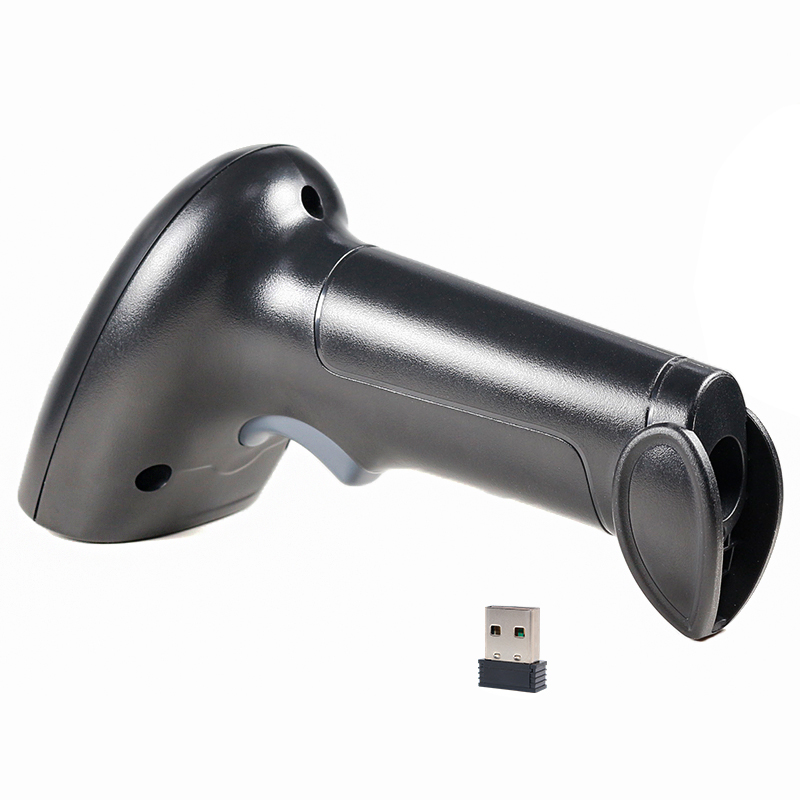

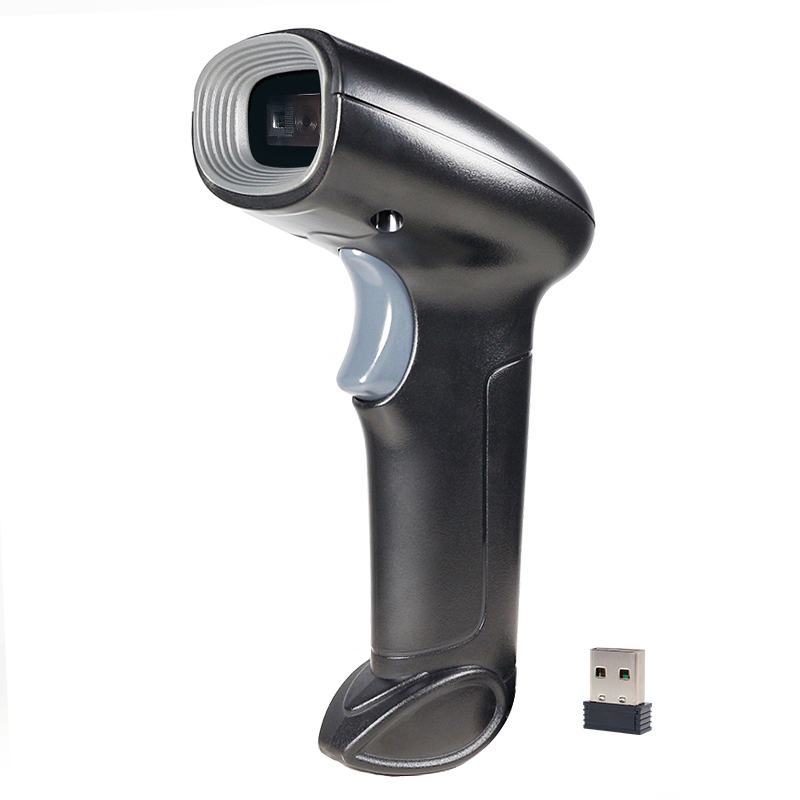

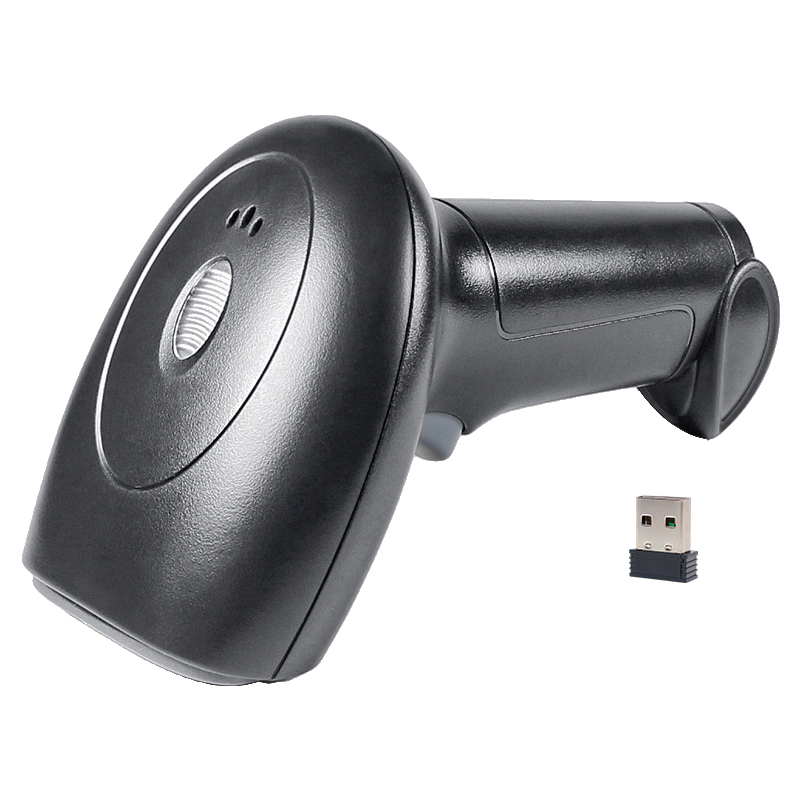

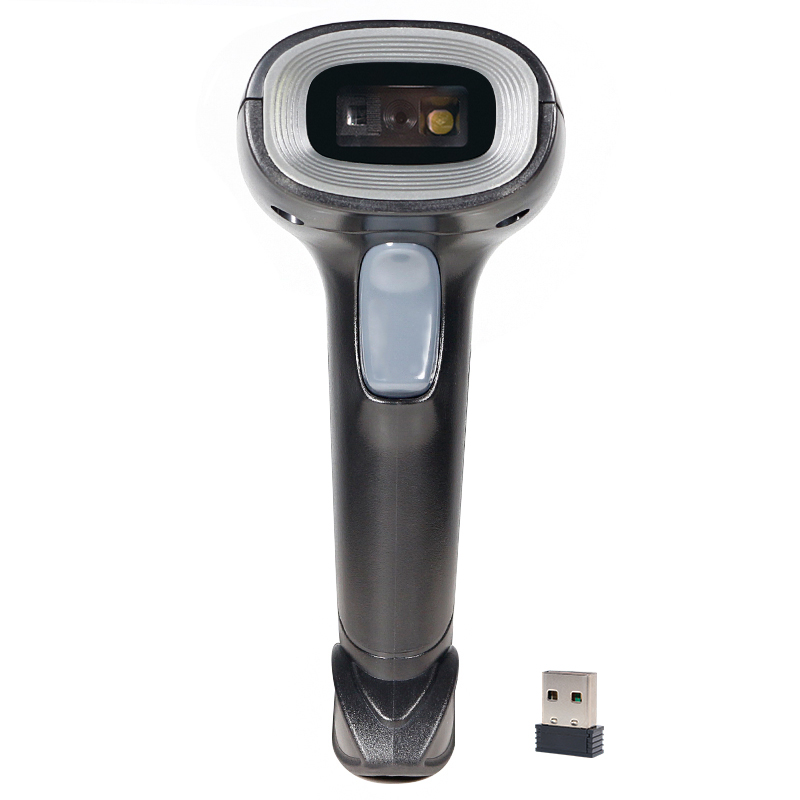

Product Pictures:
