Auto Scanning Barcode Reader Laser Wired 1D Bar Code Scanner Handheld Barcode Scanner
Product Description:
IBC-680 barcode scanner is good performance on reading 1D bar codes. It represents high-durability and faster customer checkouts, with an unbeatable first read scan success rate. It’s highly functional and is a great business companion. Its good ergonomic design, make feel very comfortable in the hand, advanced decode technology make this barcode reader capable of reading all standard 1d barcodes fast and accurate.It is an affordable handheld Laser scanner that allows the user to easily target the desired bar code and provide complete data transmission by just triggering a button. This Laser scanner fits in various environments starting from small warehouses, offices, and retail shops.
Product Features:
• USB cable plug and play
• Fast and accurate scanning
• Strong Decoding Ability for 1D bar codes
• Support Manual trigger and automatic scanning mode
• Compatible with Windows, Mac and Linux OS
Product Specification:
| Technical Parameter | |
| Model | IBC-680 |
| Item | Handheld Laser 1D Wired Barcode Scanner |
| Physical Parameter | |
| Material | ABS+PVC+PC |
| Power Supply | DC 5V ±5% |
| Current | 50mA (working); 30mA (standby); 100mA (maximum) |
| Maximum Power Consumption | 0.5W |
| Weight | 131±5g (With cable) |

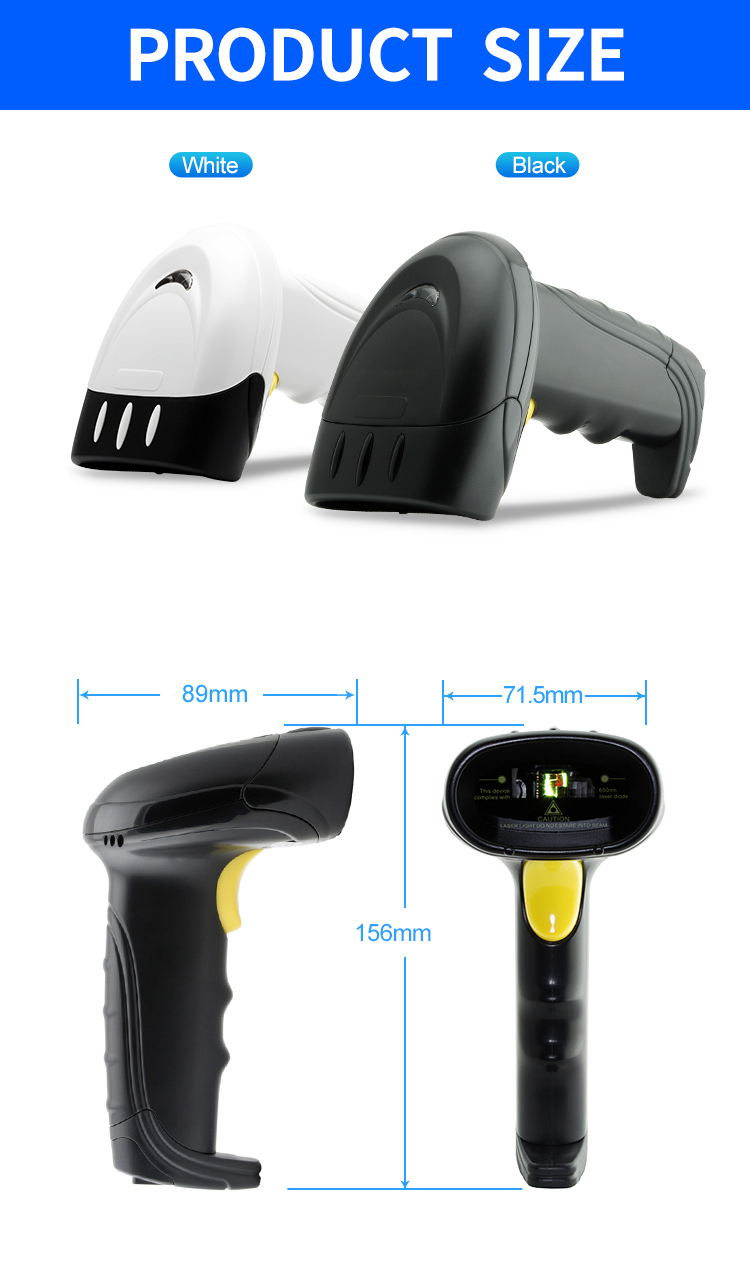

| Size | L*W*H: 161.5 * 88.0 * 77.0 (unit: mm) |
| Color | Black; Grayish white |
| Button Lifespan | ＞100000times |
| Performance Parameter | |
| Interface | USB, PS/2; (RS232 can be customized) |
| System Supported | Linux, Android, Windows XP, 7, 8, 10, MAC |
| Language Supported | English, French, Dutch, Spanish (international), Italian (Italian 142), German, etc. (language can be customized) |
| Light Source | Visible laser 650nm |
| Resolution | 3mil |
| Bit Error Rate | 1/5000000 |
| Scanning speed | 400 times/sec |
| Reading Mode | laser |
| Trigger Mode | Manual ; Continuous scanning |
| Scanning Distance | 10mm-600mm |
| Prompt Mode | Buzzer, Indicator Light (LED) |
| Print Contrast | 30% |
| Decoding Capability | ●Code25-Interleaved ●Code25-Standard ●Code25-Matri ●Code39-Regular ●Code39-FullASCII ●Code32 ●Code93-Regular ●Code93-FullASCII ●Code128 ●EAN/GSL/UCC-128Auto ●Codabar ●MSI ●EAN/JAN-13 ●UPC-A ●JAN-8 ●Code11 ●UPCE0 ●IATA (Aviation 25) |
| Scanning Angel | Roll30°, Pitch75°, Yew75° |
| Scanning Depth | Code39 (4mil): 4 – 7 cm Code39 (10mil): 6 – 28 cm |
| Environment Parameter | |
| IP Grade | IP52 |
| Operating Temp. | 0 to 50℃ / 32 to 122℉ |
| Storage Temp. | 0 to 50℃ / 32 to 122℉ |
| Operating Humidity | 20% to 85% (No Condensation) |
| Storage Humidity | 20% to 85% (No Condensation) |
| ESD Protection | 15KV air discharge |

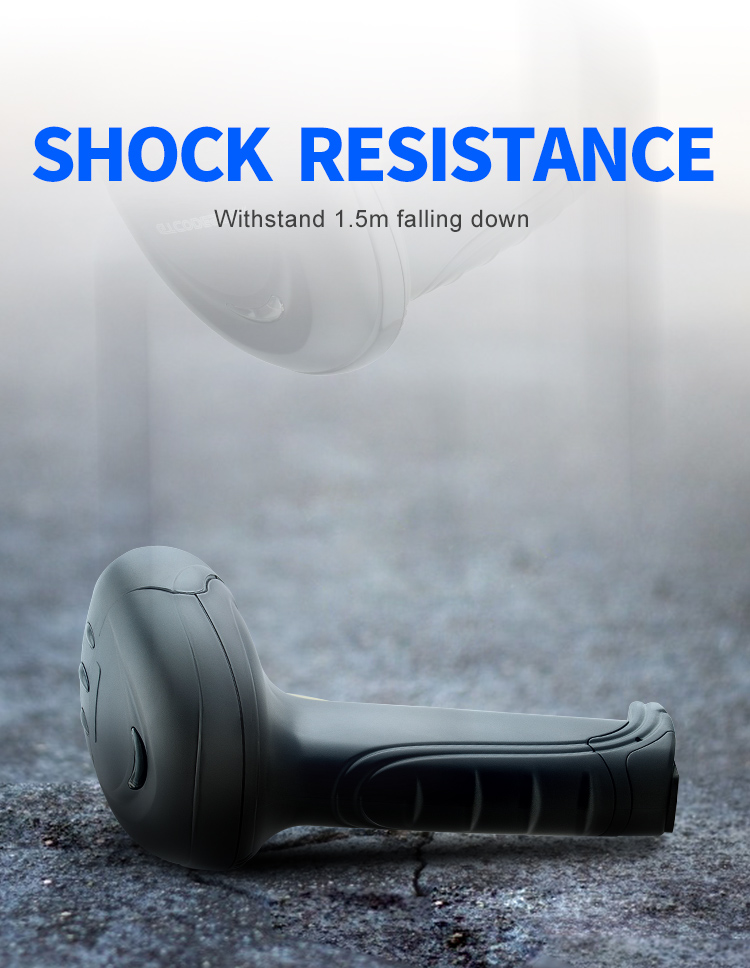

| Shock Resistance | Withstands multiple times 1.5m drops to concrete |

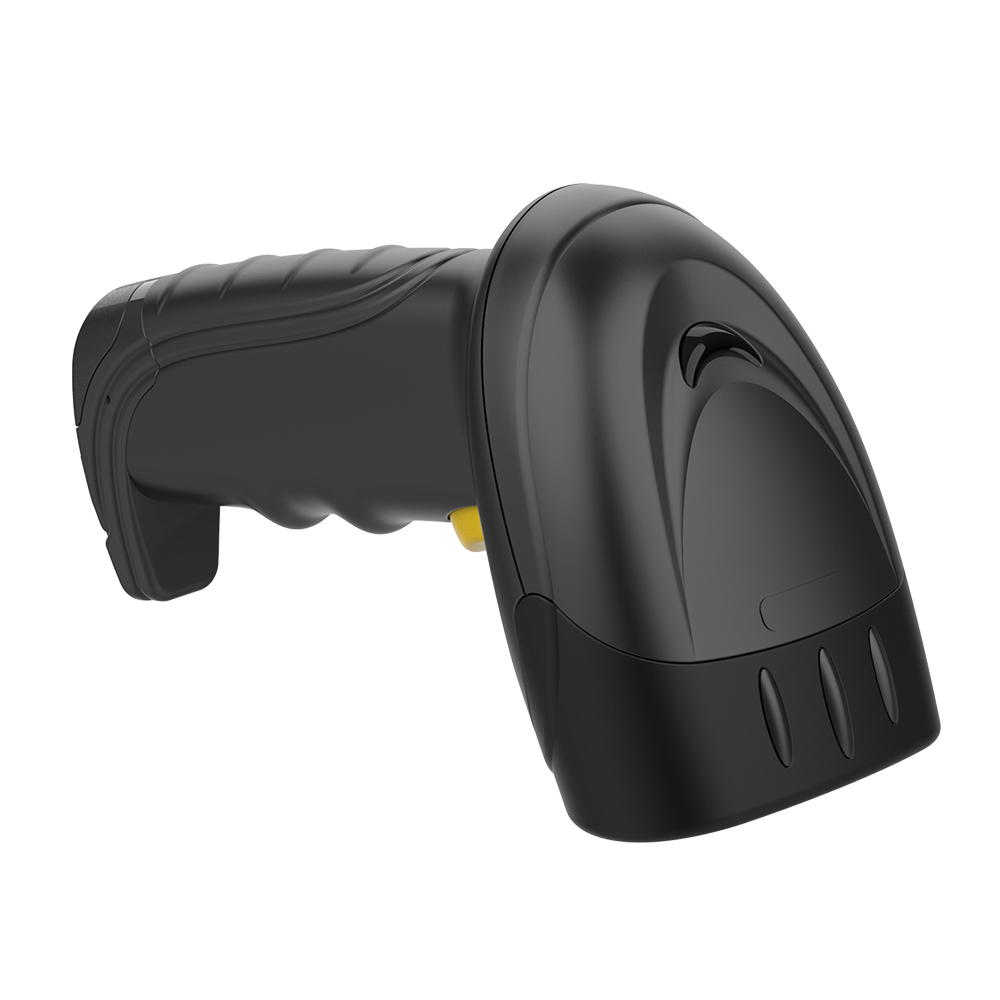

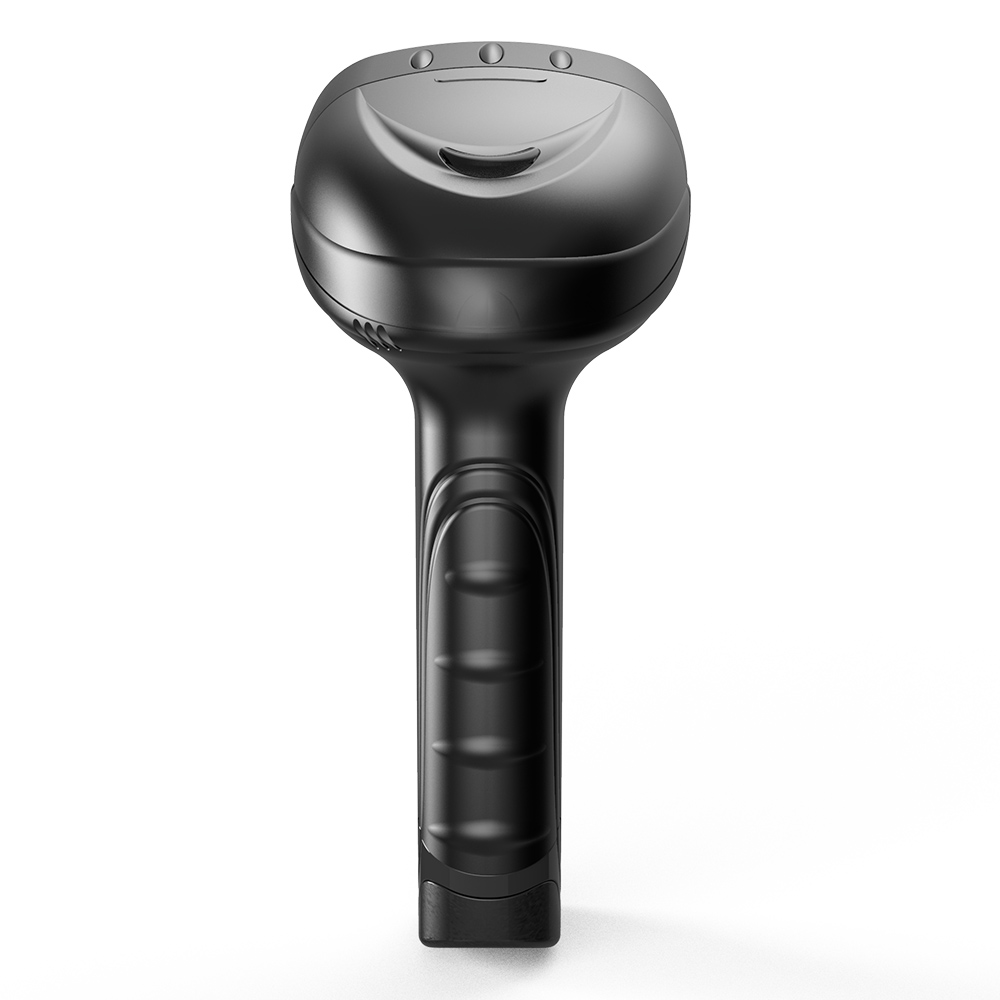

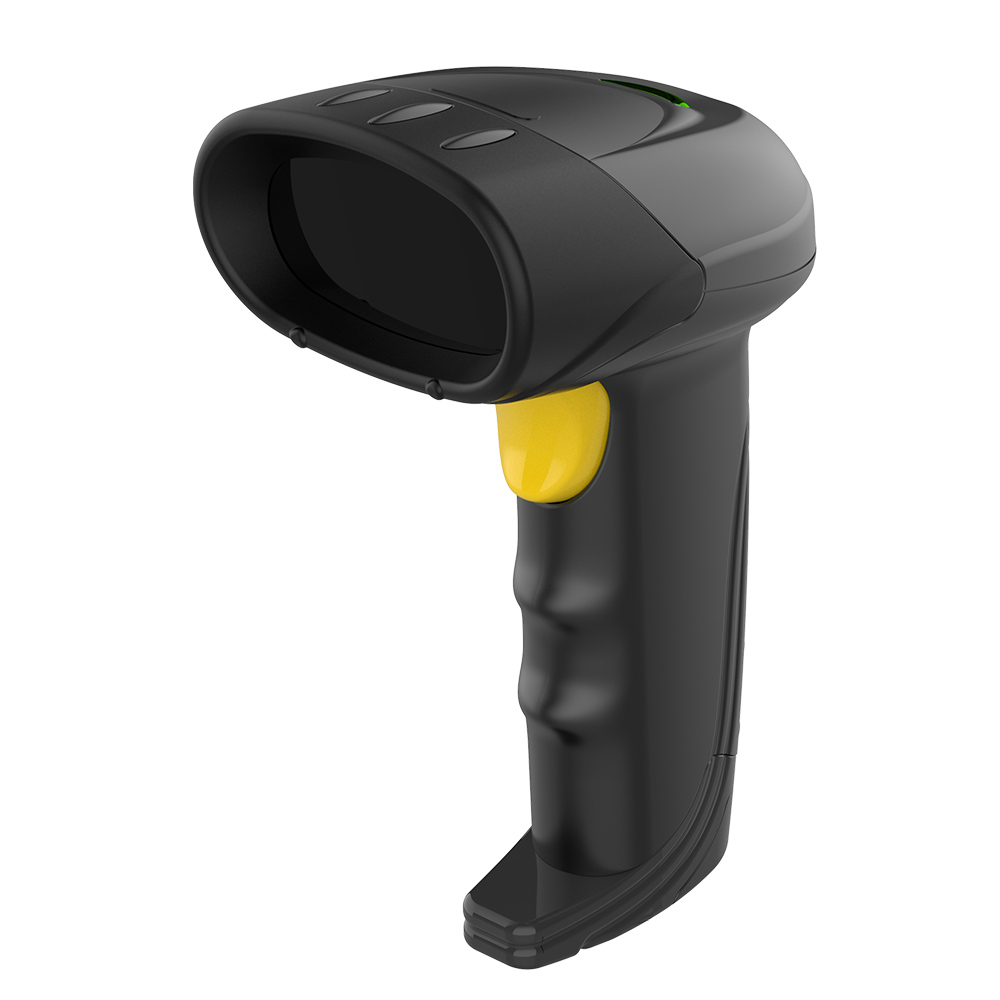

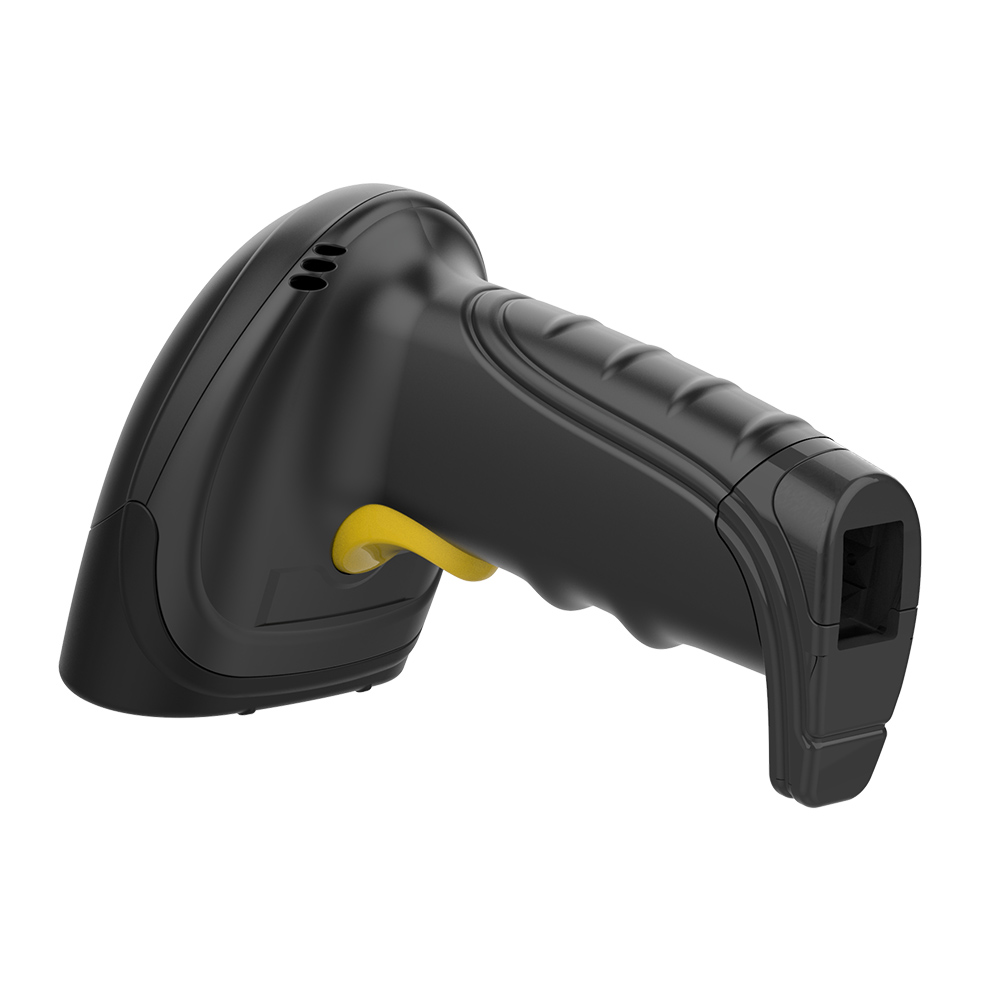

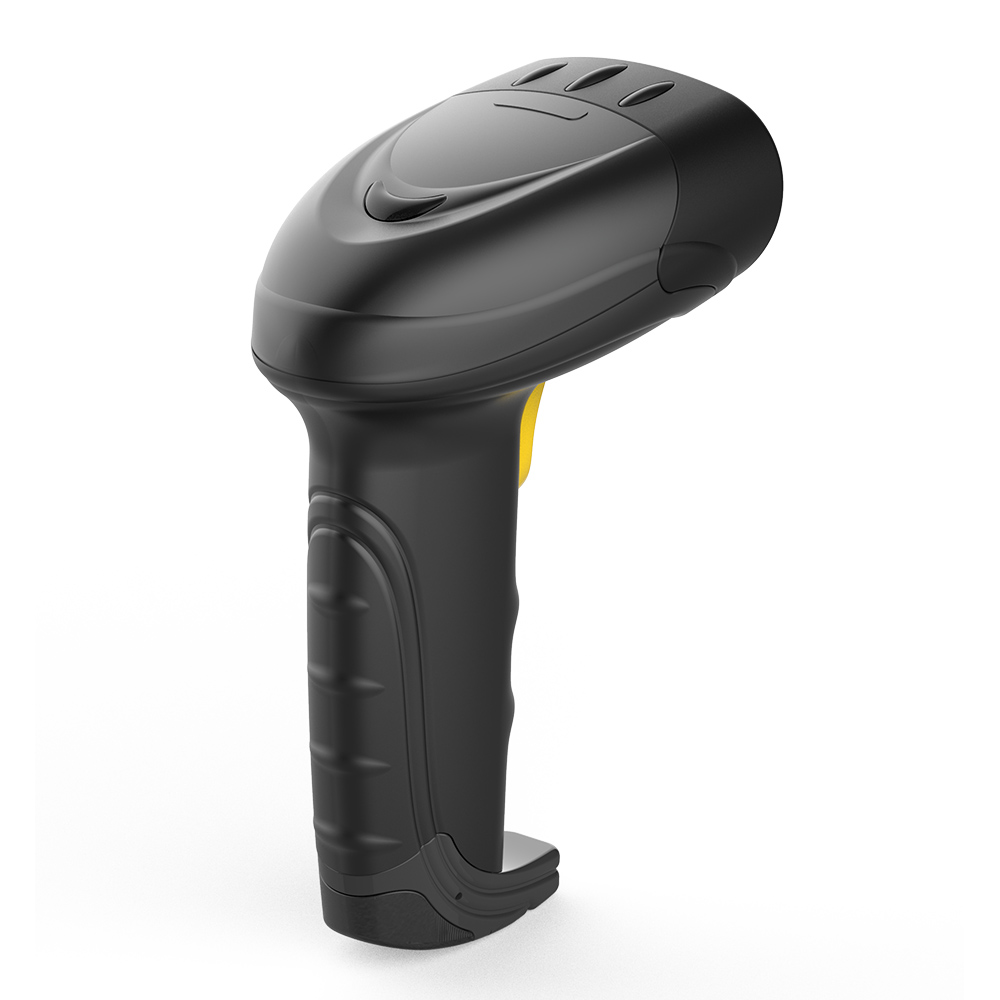

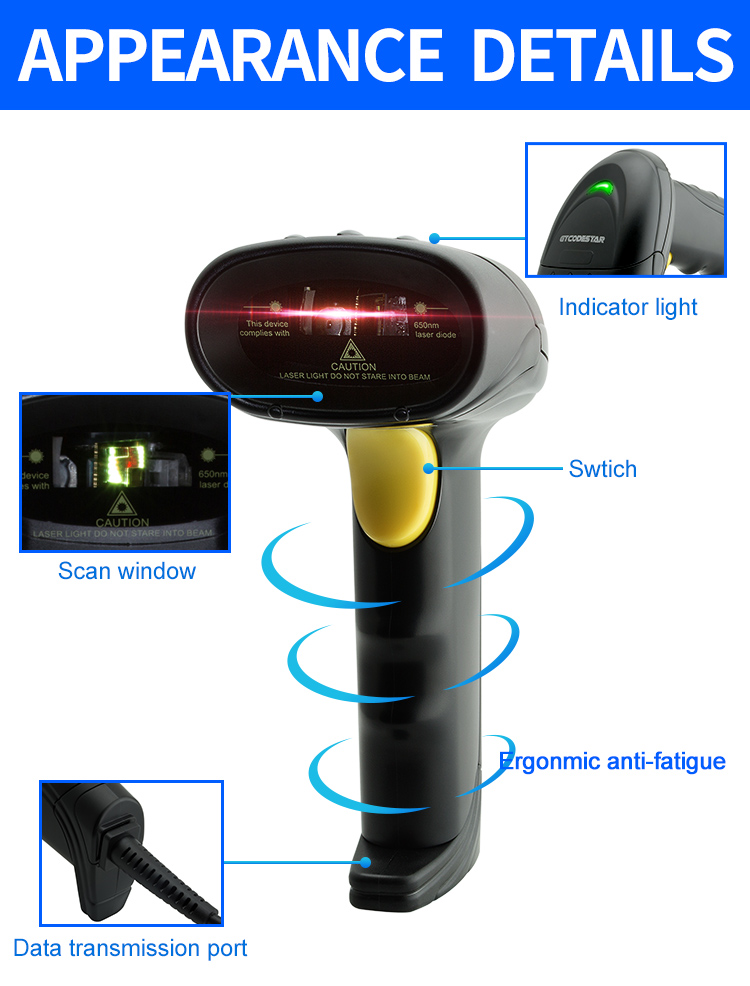

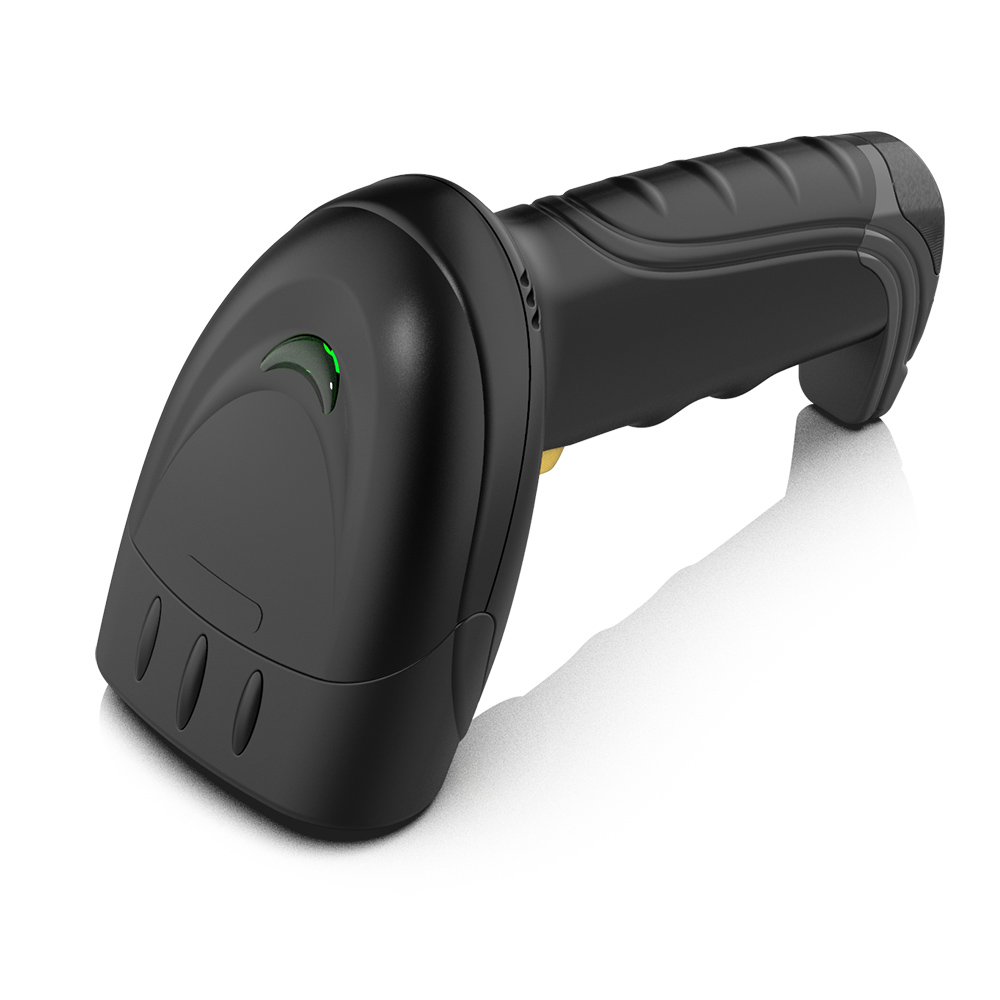

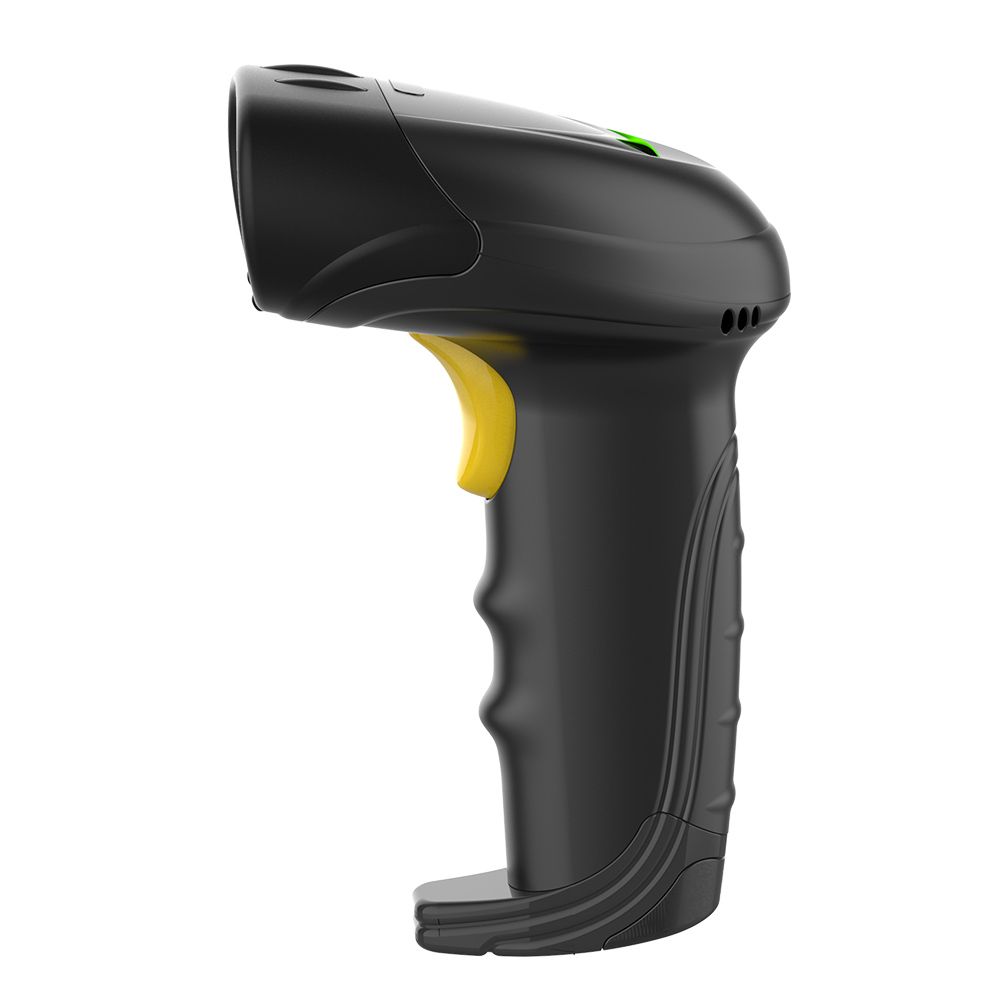

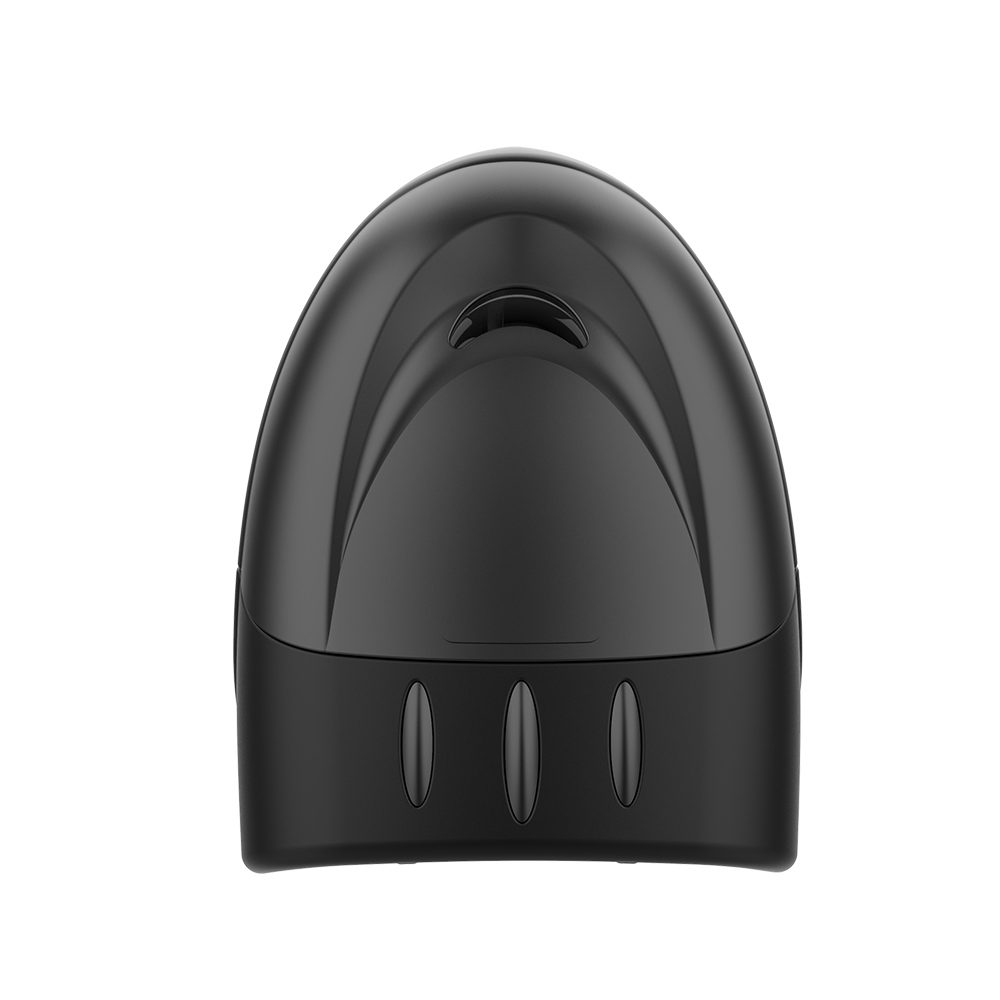

Product Pictures:
