Auto Detective Desktop Barcode Scanner 2d Omnidirectional Platform QR Code Reader for POS Supermarket
Product Testing Video:
Product Description:
IBC-9290 is CMOS desktop barcode scanner. It is strong body with scratch-resistant material. Quickly read various LCD and OLED mobile phone screen codes and printed product codes. Using international advanced image transmission technology, with two-way communication instant error correction feedback, complete a variety of commonly used one-dimensional code and two-dimensional code reading. Supports the reading of paper barcodes, LCD display barcodes, mobile phone screen barcodes, anti-color barcodes, and non-standard barcodes such as print distortion and wrinkle breakage. with Powerful scanning function, it is Excellent at decoding colorful, distorted, poor printed, fuzzy barcodes. Auto-Sensing Scan, when the barcode is close, it will be automaticallyscanned by induction, without manual operation. Adjust the scanning window according to theneeds of the scanning scene. Compatible With Multiple operation system, USB interface is plug and play, no need to set upconvenient and fast. It is the best choice for you to improve your work efficiency. It is widely used in retail stores, supermarket, library, hospital, pharmacy and other industries.
Product Features:
• Equipped with the new 500,000 global exposure scan engine
• Larger scanning window for easier reading
• Adjustable angle, flexible and easy to use

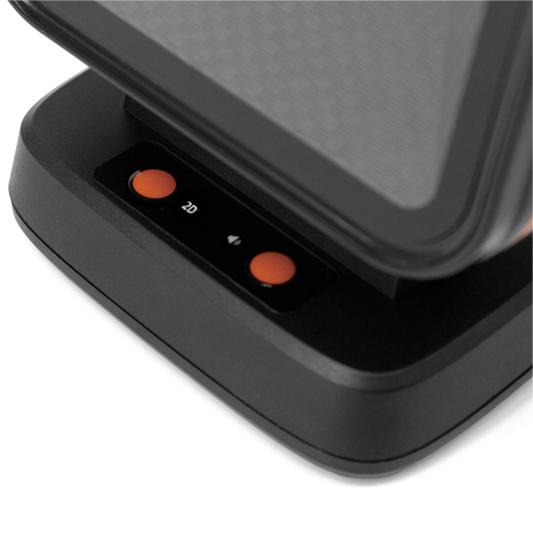

• Common function buttons, easier to setup
• 5 different styles of prompt sound, soft and bright LED indicator
• Multiple interface, strong compatibility, support a variety of systems and cash registers
Product Specification:
Parameters Sheet | |
Model No. | IBC-9290 |
Product Name | 1D 2D Wired Desktop Barcode Scanner |
Physical parameters | |
Scan mode | Auto-sensing/continuous scanning |
Communication interface | USB-HID keyboard, USB-COM virtual serial port, RS232 serial port |
Interface type | USB TYPE-B |
Prompt mode | Buzzers, LED lights |
Set up way | Press the button to set, manually scan the setting code in turn |
Shell material | ABS+PC |
Cable standards | Straight line 1m |
Exterior dimensions | 122mm×160mm×76mm |
Weight | 312g (without cable). |
Performance parameters | |
Scan type | CMOS global exposure |
Differentiation | 800*600 |
Light source | 617nm red LED |
Scan angle | ± 60°, ±54°, 360° (left and right, front and back, rotation). |
Scan rate | 20 cm/s |
Field of view angle | 48° (H) x 30° (V) |
Print contrast | Minimum 20%. |
Decoding Types | 1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite |
2D: QR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417, Micro QRCode, MaxiCode, Aztec Code, Code16K, support mobile phone screen reading | |
Minimum resolution | 4 mil |
Electrical parameters | |
Input voltage | DC 5V±10% |
Current | Working: 240 mAh; Standby: 190 mAh |
Environment parameters | |
Temperature | 0°C-50°C (working); -20°C~+70°C (storage). |
Humidity | 5%-95% non-condensing |
