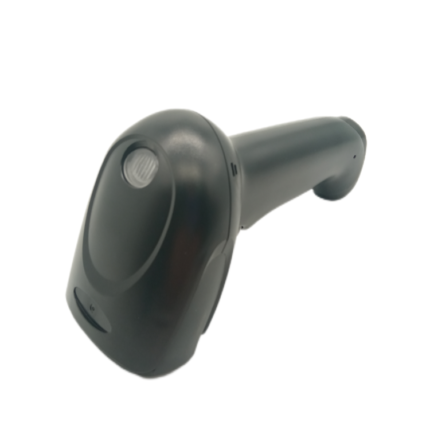

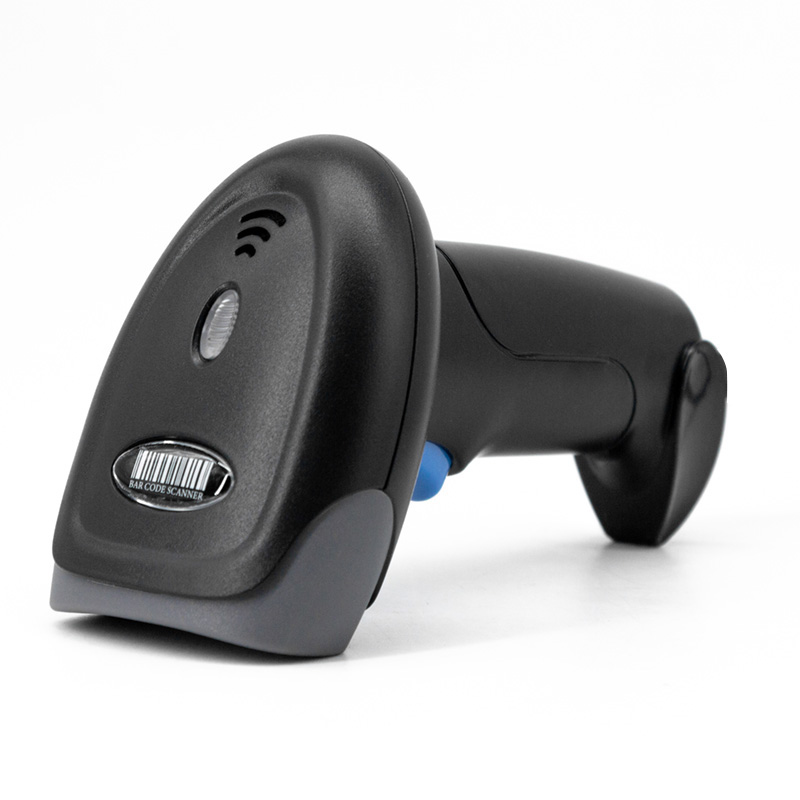

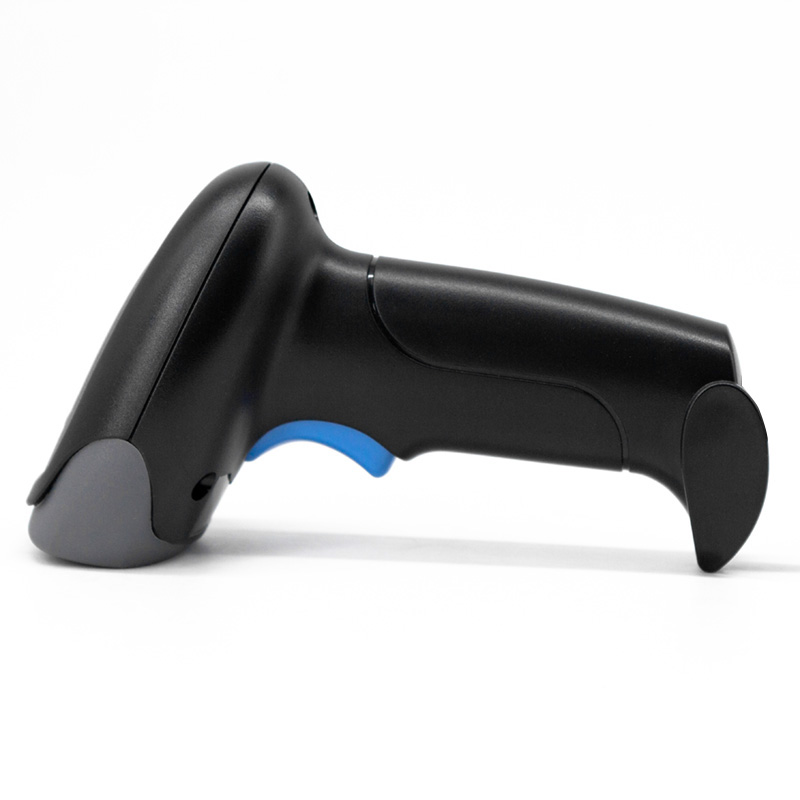

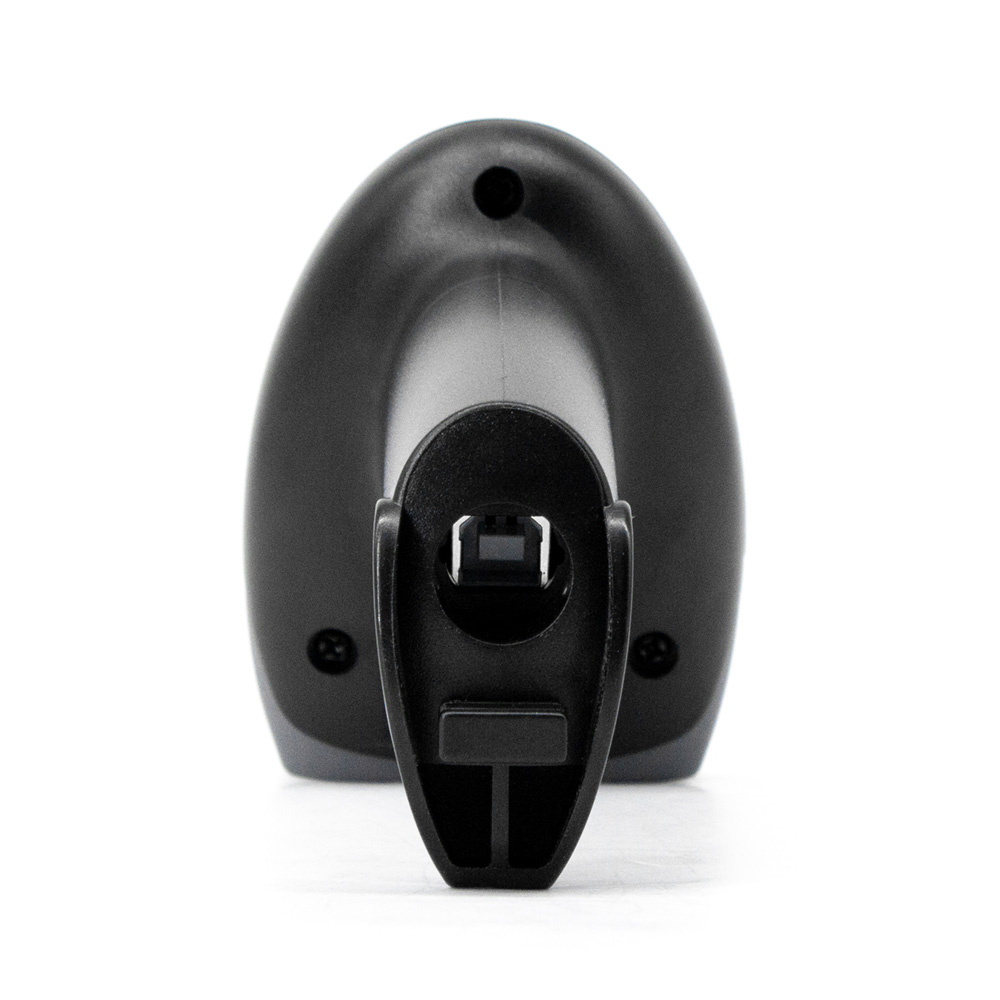

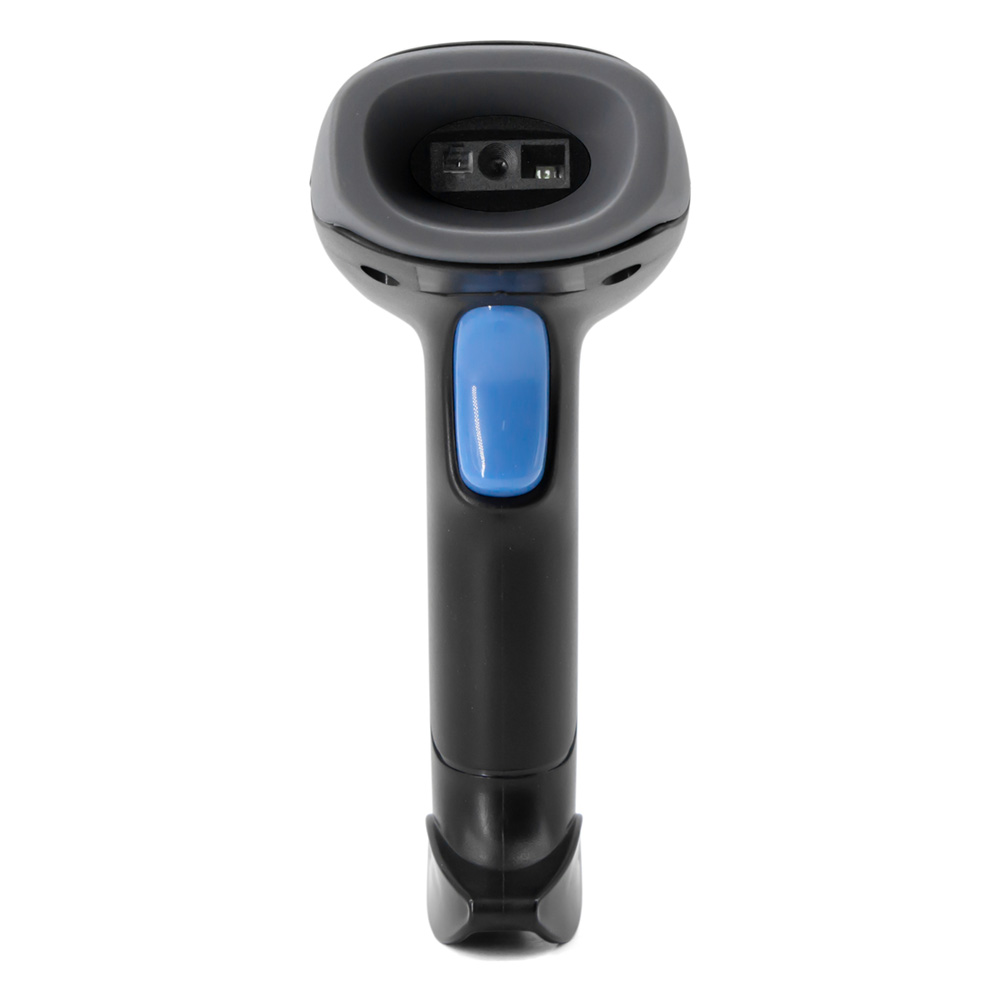

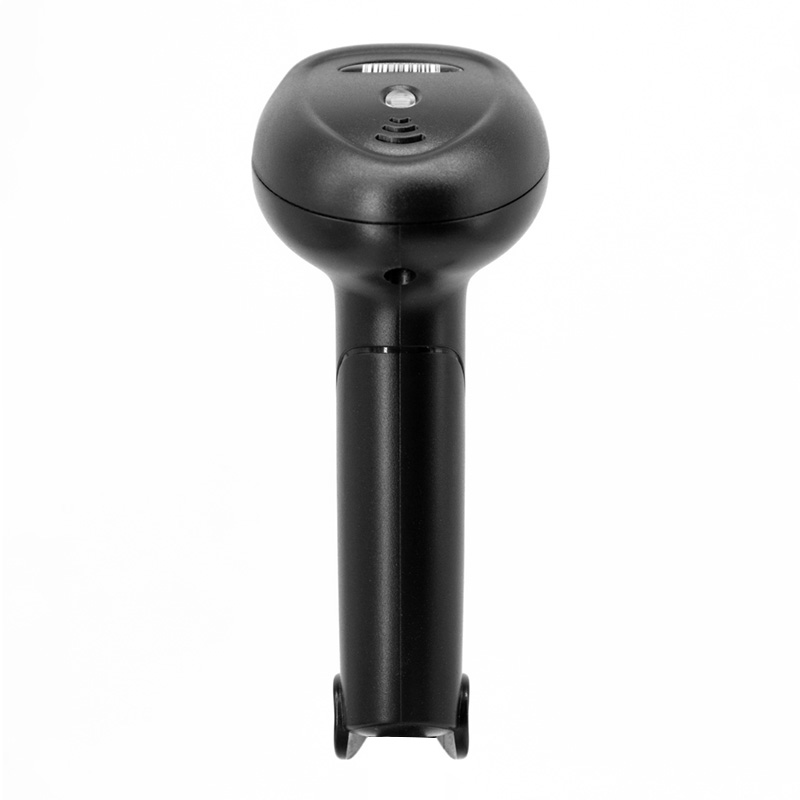

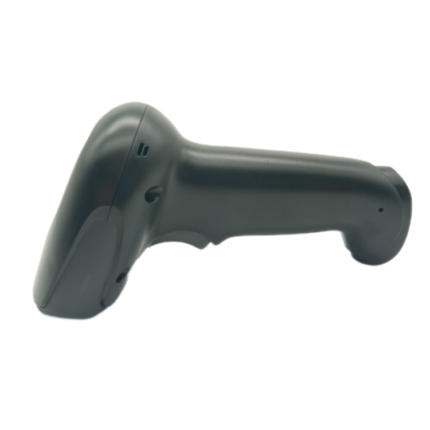

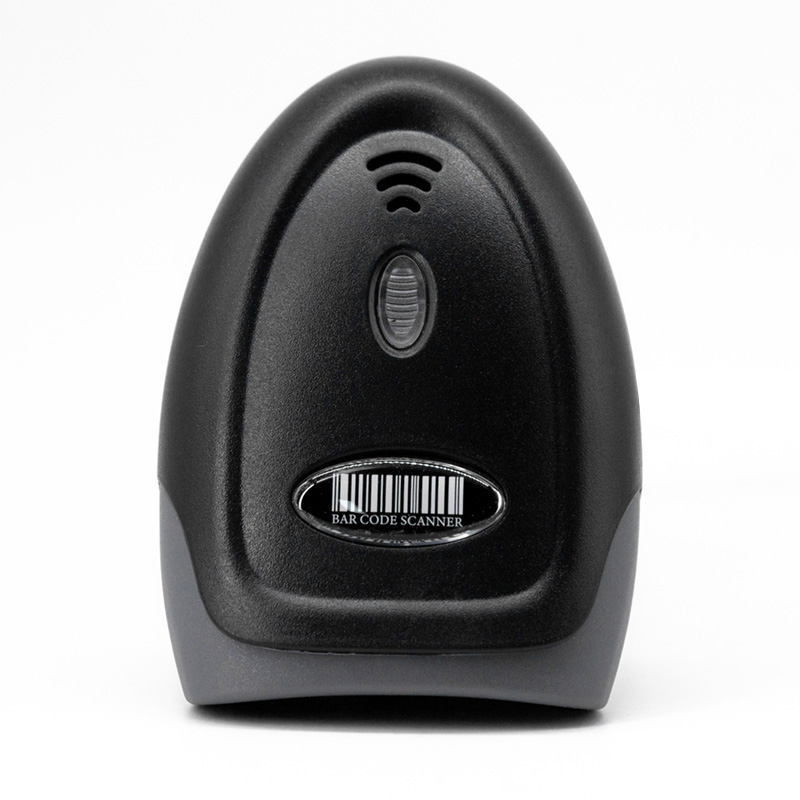

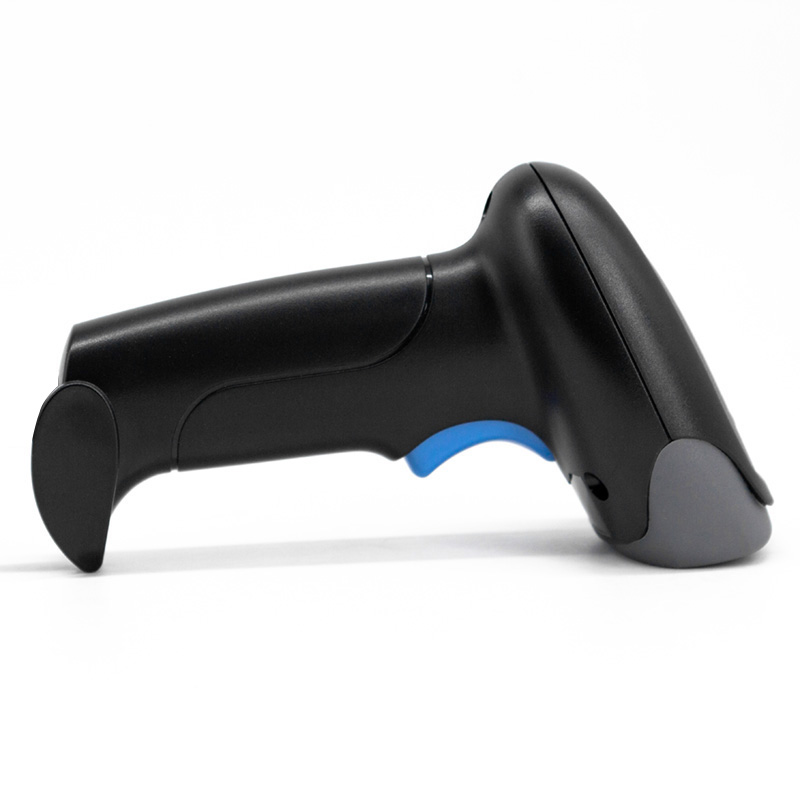

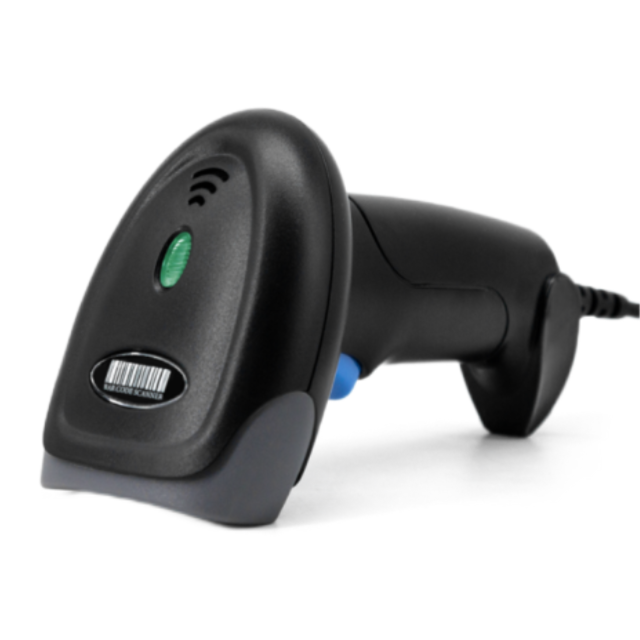

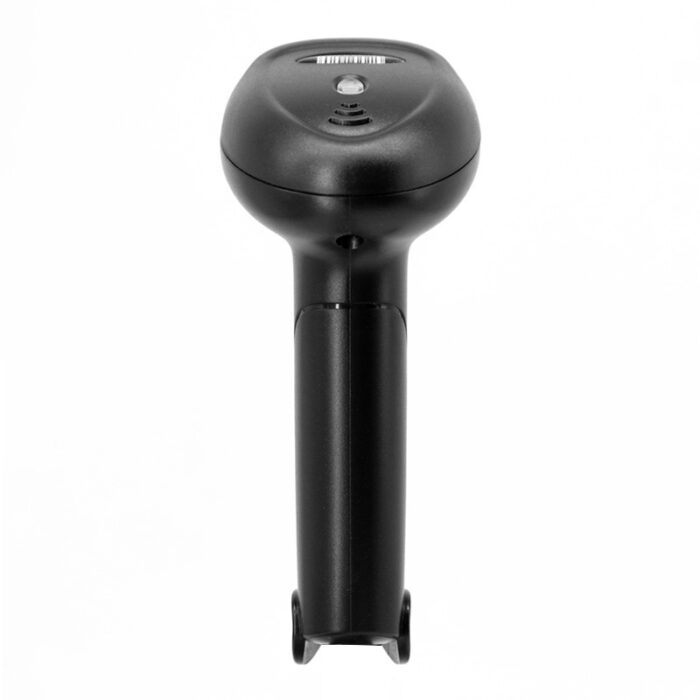

Advanced Barcode Reader QR Code Reader USB Wired Wireless Bluetooth Handheld Barcode Scanner 1D 2D Reader
Product Description:
IBC-6700 series CMOS barcode scanner is universal handheld image 2D barcode scanner, using international advanced image transmission technology, with two-way communication instant error correction feedback, complete a variety of commonly used one-dimensional code and two-dimensional code reading. Equipped with auxiliary lighting, can be used in different lighting environments, can also be used at night, the applicability is strong. Read barcodes in any direction at 360degrees, faster and more efficient.
Supports the reading of paper barcodes, LCD display barcodes, mobile phone screen barcodes, anti-color barcodes, and non-standard barcodes such as print distortion and wrinkle breakage.
Product Features:
• High-speed decoding, responsive
• Strong versatility: USB, USB-COM and other interfaces are provided
• Built-in storage function, support inventory mode
• Outstanding durability: IP54 rated for dust and water resistance, while withstanding a 1.5-meter drop to a concrete floor
Product Specification:
1D 2D Wired Handheld Barcode Scanner IBC-6700:
| Parameters Sheet | |
| Model No. | IBC-6700 |
| Product Name | 1D 2D Wired Handheld Barcode Scanner |
| Physical parameters | |
| Scan mode | Push-button trigger/auto-sensing/continuous scanning |
| Communication interface | USB-HID keyboard/USB-COM virtual serial port/RS232 serial port (optional). |
| Interface type | USB TYPE-B |
| Prompt way | Buzzer, LED light |
| How it’s set up | Manually scan the setting code one after the other |
| Housing material | ABS+PC |
| Cable standards | Straight line 1.6m |
| Exterior dimensions | 160mm× 66mm×90mm(product);195mm×105mm×80mm(outer packing) |
| Weight | 171.5 g (net weight) and 256.5g (including packaging accessories). |
| Performance parameters | |
| Sensors | Global CMOS |
| Resolution | 640*480 |
| Light source | LED |
| Scan angle | ± 60°, ±60°, 360° (elevation, declination, rotation). |
| Scan rate | 120 frames/sec |
| Field of view | 48° (H) x 30° (V) |
| Print contrast | 15% minimum |
| Decode the kind | 1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, GS1 Composite |
| 2D: QR Code, Data Matrix (DM), PDF417, Micro QRCode, MaxiCode, Aztec Code, support mobile phone screen reading | |
| Minimum resolution | 1D code 4MIL;QR code 10MIL |
| Depth of field | QR (15mil): 30~210mm |
| QR payment code (mobile code): 80~550mm | |
| Data Matrix（10mil）: 30- 140mm | |
| PDF 417（6.7mil）: 50- 120mm | |
| EAN-13（13mil）: 50~280mm | |
| Code 39（8mil）: 30- 190mm | |
| Code 128（15mil）: 80~320mm | |
| Electrical parameters | |
| Input voltage | DC 5V±10% |
| Current | Operating: 350 mA, Standby: 130 mA |
| Environmental parameters | |
| Temperature | 0°C-50°C(Working);-40°C~+60°C(Storage). |
| Humidity | 5%-95% non-condensing |
| Ambient brightness | Max.5,000 Lux (fluorescent) |
| Seismic resistance | It can withstand a 1.5m drop in the air |
1D 2D Wireless Handheld Barcode Scanner IBC-6700R:
| Parameters Sheet | |
| Model No. | IBC-6700R |
| Product Name | 1D 2D Wireless 2.4G Handheld Barcode Scanner |
| Physical parameters | |
| Scan mode | Push-button trigger/auto-sensing/continuous scanning |
| Communication interface | USB-HID keyboard/USB-COM virtual serial port |
| Wireless communication distance | Wireless 2.4G: 0-80m (open environment). |
| Prompt way | Buzzer, LED light |
| How it’s set up | Manually scan the setting code one after the other |
| Housing material | ABS+PC |
| Cable standards | USB straight line 1m |
| Exterior dimensions | 160mm× 66mm×90mm(product);195mm×105mm×80mm(outer packing) |
| Weight | 176g (net weight), 256.5g (including packaging accessories). |
| Performance parameters | |
| Sensors | 300,000 global CMOS |
| Resolution | 640*480 |
| Light source | LED |
| Internal storage | 512K |
| Scan angle | ± 60°, ±60°, 360° (elevation, declination, rotation). |
| Scan rate | 120 frames/sec |
| Field of view | 48° (H) x 30° (V) |
| Print contrast | 15% minimum |
| Decode the kind | 1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, GS1 Composite |
| 2D: QR Code, Data Matrix (DM), PDF417, Micro QRCode, MaxiCode, Aztec Code, support mobile phone screen reading | |
| Minimum resolution | 1D code 4MIL;QR code 10MIL |
| Depth of field | QR (15mil): 30~210mm |
| QR payment code (mobile code): 80~550mm | |
| Data Matrix（10mil）: 30- 140mm | |
| PDF 417（6.7mil）: 50- 120mm | |
| EAN-13（13mil）: 50~280mm | |
| Code 39（8mil）: 30- 190mm | |
| Code 128（15mil）: 80~320mm | |
| Electrical parameters | |
| Input voltage | DC 5V±10% |
| Current | Operating: 350 mA, Standby: 130 mA |
| Battery | 2000mAh lithium-ion battery |
| Charging time | 4 hours |
| Battery life | 30 days (standby), 72 hours (operating: scanning every 5 seconds) |
| Environmental parameters | |
| Temperature | 0°C-50°C(Working);-40°C~+60°C(Storage). |
| Humidity | 5%-95% non-condensing |
| Ambient brightness | Max.5,000 Lux (fluorescent) |
| Seismic resistance | It can withstand a 1.5m drop in the air |
1D 2D Wireless Bluetooth Handheld Barcode Scanner IBC-6700RB:
| Parameters Sheet | |
| Model No. | IBC-6700RB |
| Product Name | 1D 2D Wireless Bluetooth Handheld Barcode Scanner |
| Physical parameters | |
| Scan mode | Push-button trigger/auto-sensing/continuous scanning |
| Communication interface | USB-HID keyboard/USB-COM virtual serial port |
| Wireless communication distance | Wireless 2.4G: 0-80m (open environment), Bluetooth: 0-20m (open environment). |
| Prompt way | Buzzer, LED light |
| How it’s set up | Manually scan the setting code one after the other |
| Housing material | ABS+PC |
| Cable standards | USB straight line 1m |
| Exterior dimensions | 160mm× 66mm×90mm(product);195mm×105mm×80mm(outer packing) |
| Weight | 176g (net weight), 256.5g (including packaging accessories). |
| Performance parameters | |
| Sensors | 300,000 global CMOS |
| Resolution | 640*480 |
| Light source | LED |
| Internal storage | 512K |
| Scan angle | ± 60°, ±60°, 360° (elevation, declination, rotation). |
| Scan rate | 120 frames/sec |
| Field of view | 48° (H) x 30° (V) |
| Print contrast | 15% minimum |
| Decode | 1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, GS1 Composite |
| 2D: QR Code, Data Matrix (DM), PDF417, Micro QRCode, MaxiCode, Aztec Code, support mobile phone screen reading | |
| Minimum resolution | 1D code 4MIL;QR code 10MIL |
| Depth of field | QR (15mil): 30~210mm |
| QR payment code (mobile code): 80~550mm | |
| Data Matrix（10mil）: 30- 140mm | |
| PDF 417（6.7mil）: 50- 120mm | |
| EAN-13（13mil）: 50~280mm | |
| Code 39（8mil）: 30- 190mm | |
| Code 128（15mil）: 80~320mm | |
| Electrical parameters | |
| Input voltage | DC 5V±10% |
| Current | Operating: 350 mA, Standby: 130 mA |
| Battery | 2000mAh lithium-ion battery |
| Charging time | 4 hours |
| Battery life | 30 days (standby), 72 hours (operating: scanning every 5 seconds) |
| Environmental parameters | |
| Temperature | 0°C-50°C(Working);-40°C~+60°C(Storage). |
| Humidity | 5%-95% non-condensing |
| Ambient brightness | Max.5,000 Lux (fluorescent) |
| Seismic resistance | It can withstand a 1.5m drop in the air |
Related Products
Related products
-
Mini Portable QR Bar Code Wired/ Bluetooth/ Wireless 2.4G 2D 1D Barcode Scanner With Color LCD Screen
-
Fashionable USB 4mil Desktop Platform Barcode Reader CMOS Image 1D 2D Omni-directional Bar code Scanner
-

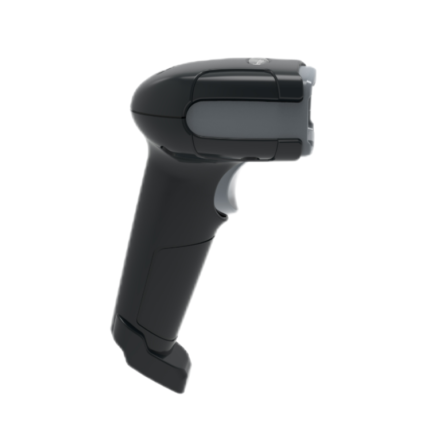

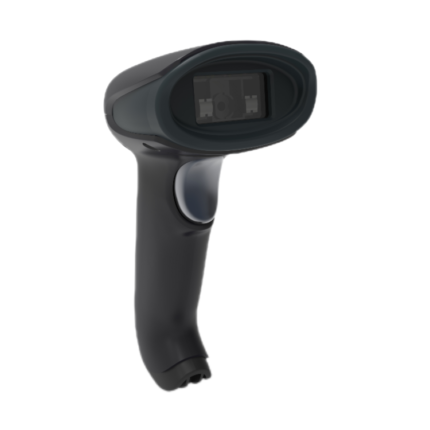

High Speed Automatic USB Wired CMOS Image Handheld QR Code Reader 1D 2D Barcode Scanner
-

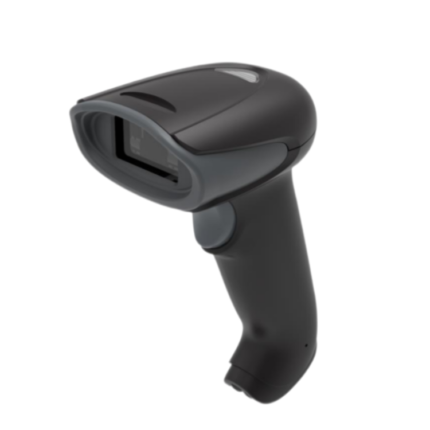

Long Range 1D 2D Image CMOS Qr Code Barcode Scanner Handheld Wireless Barcode Scanner
