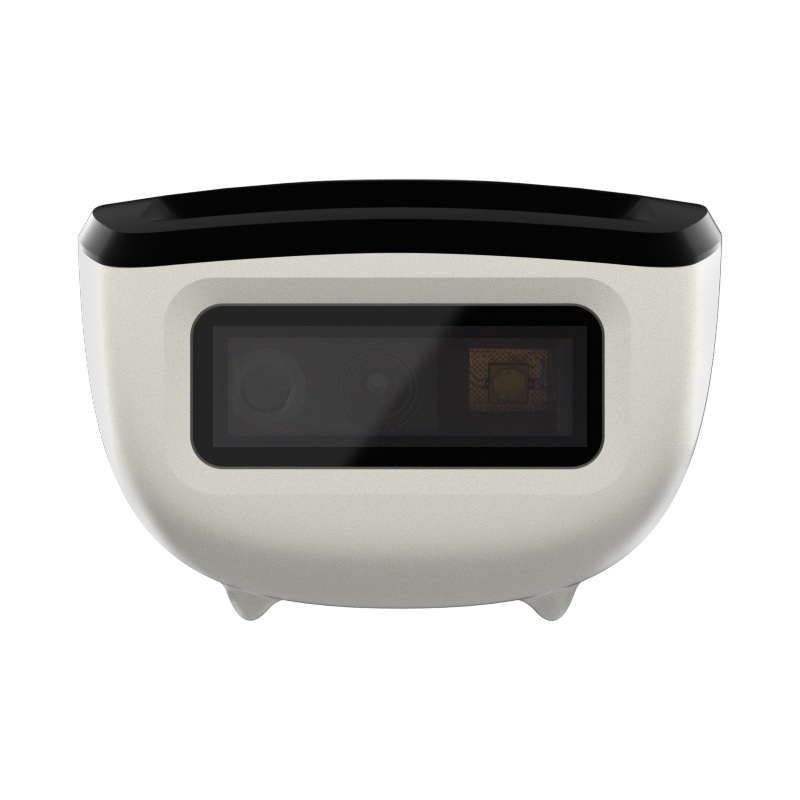

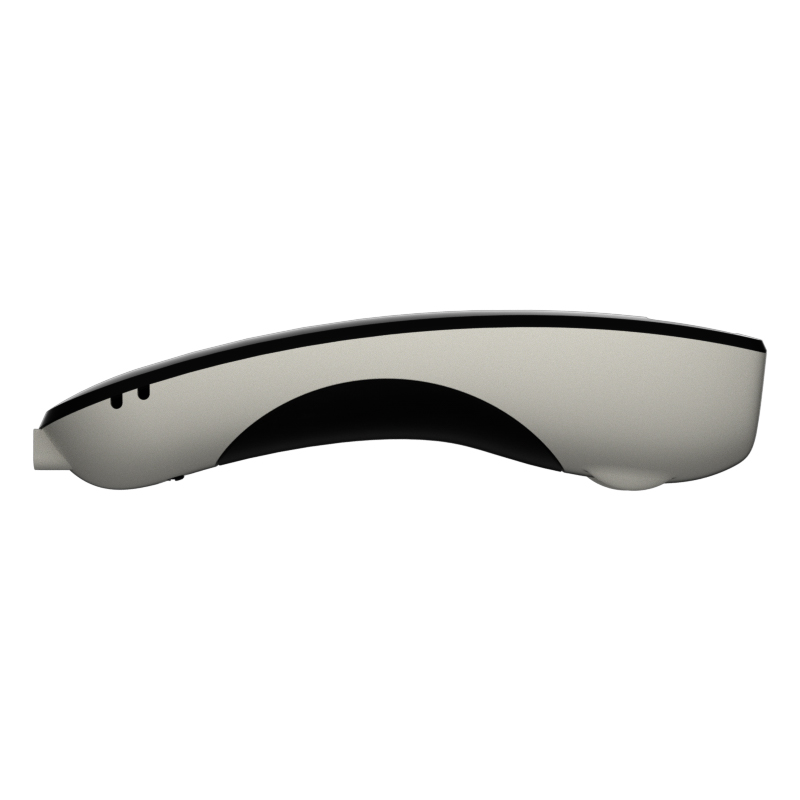

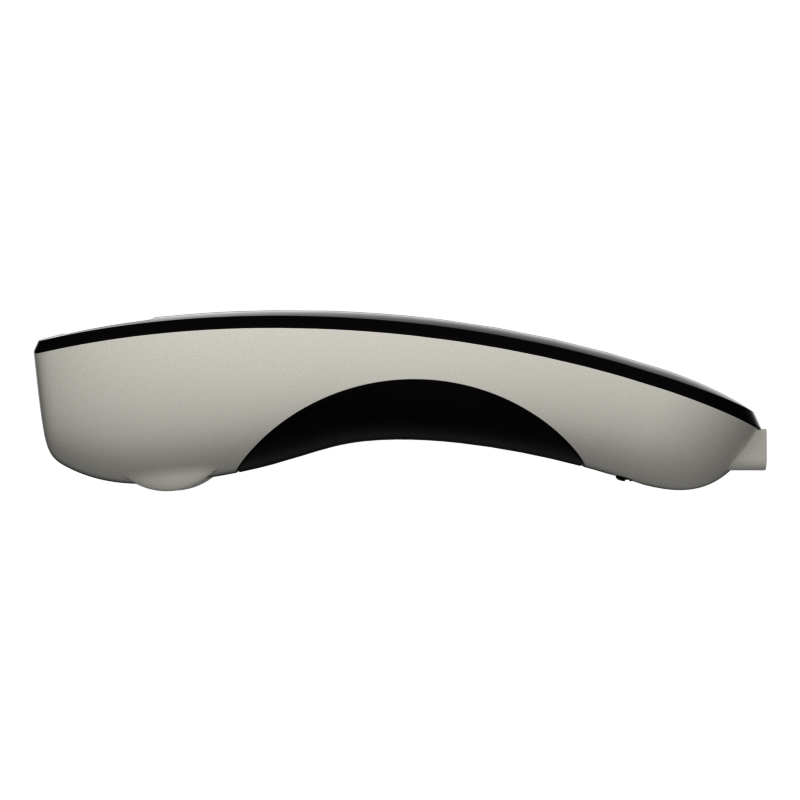

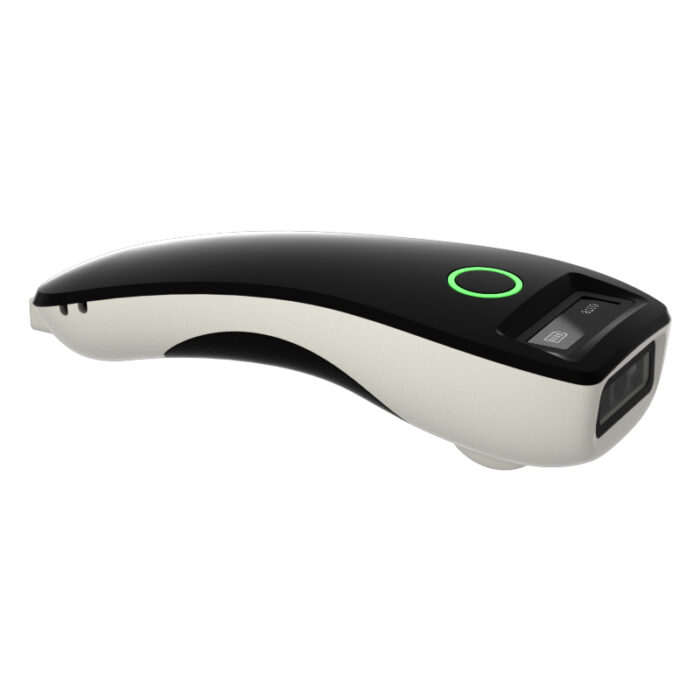

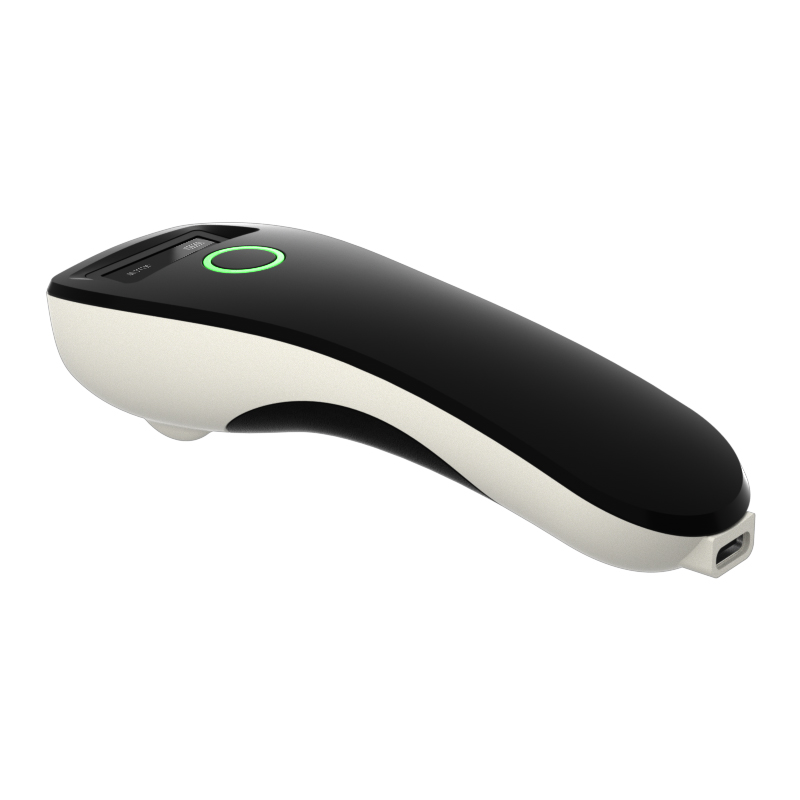

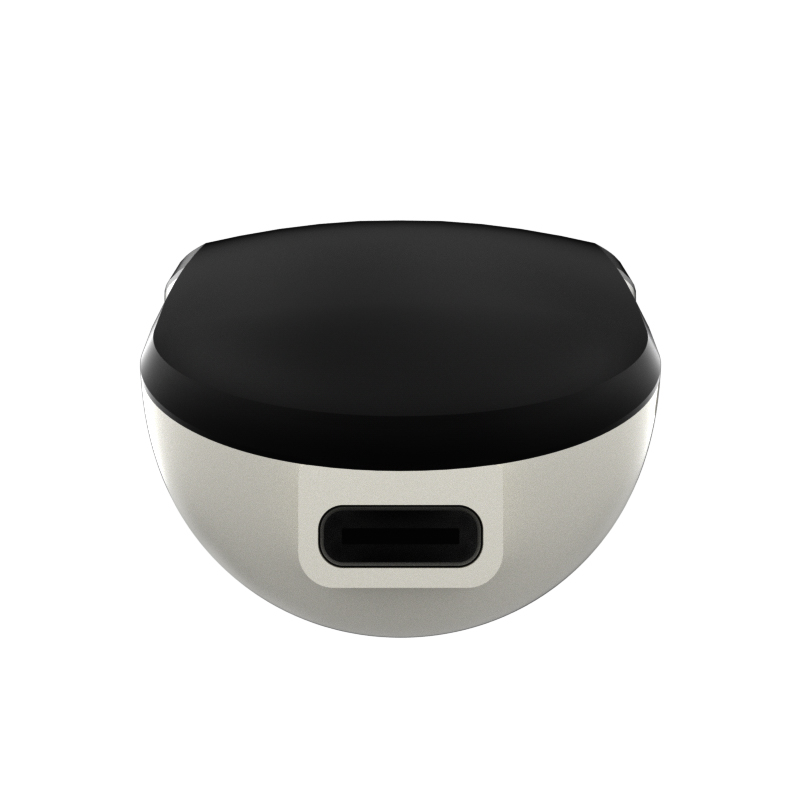

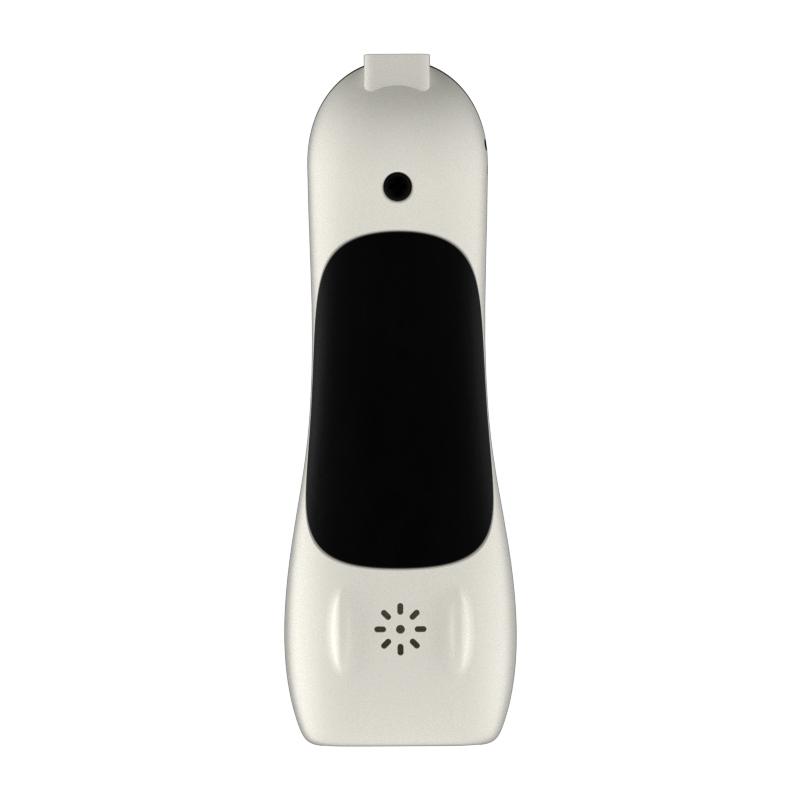

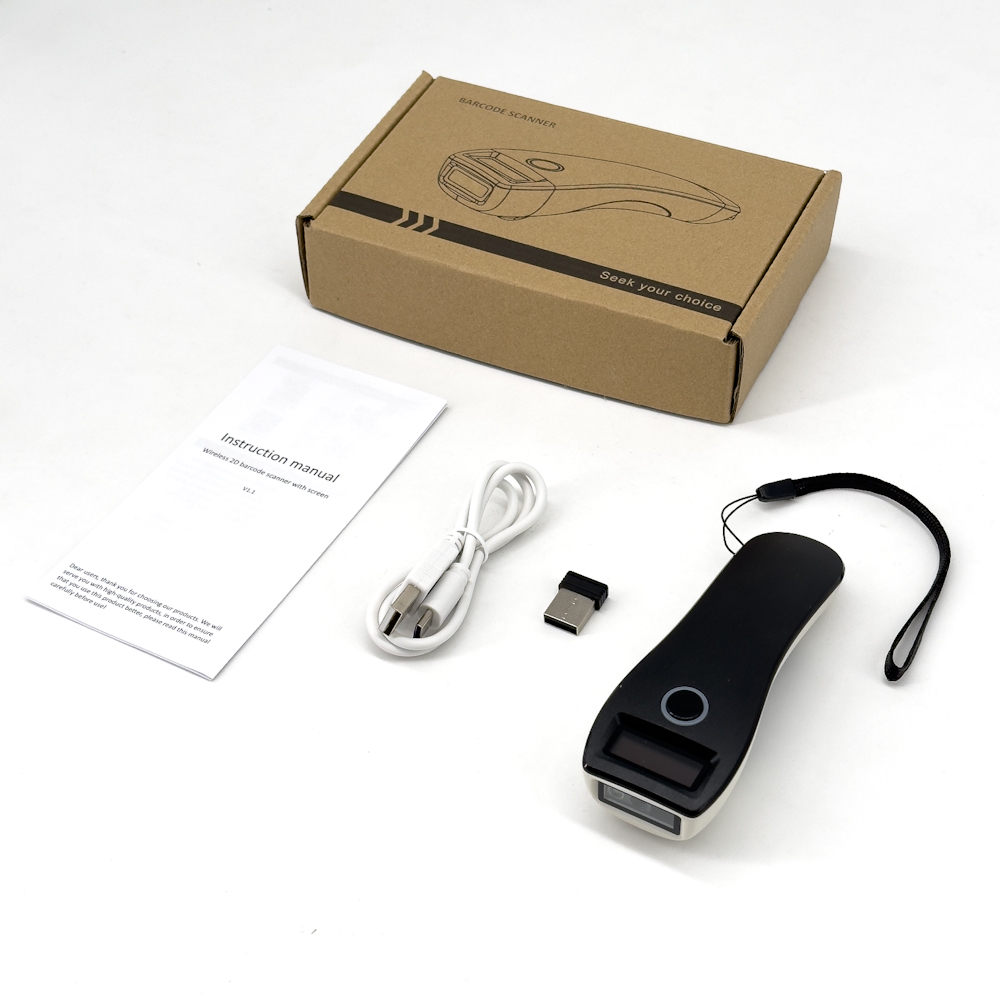

2D Mini Size High-speed Bar Code Reader Scanning Portable Wireless Barcode Scanner With Screen
Product Description:

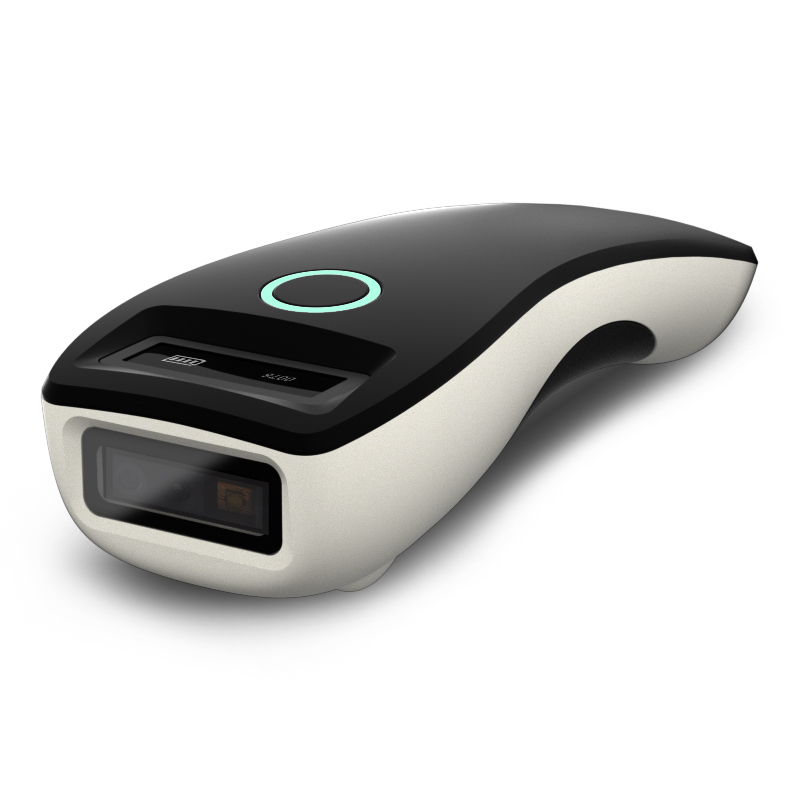

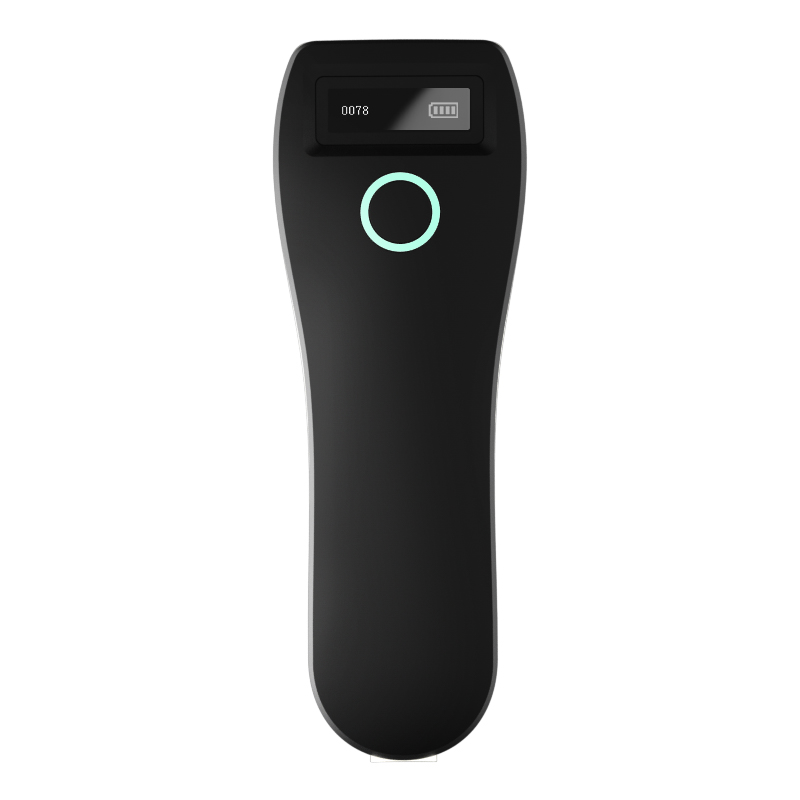

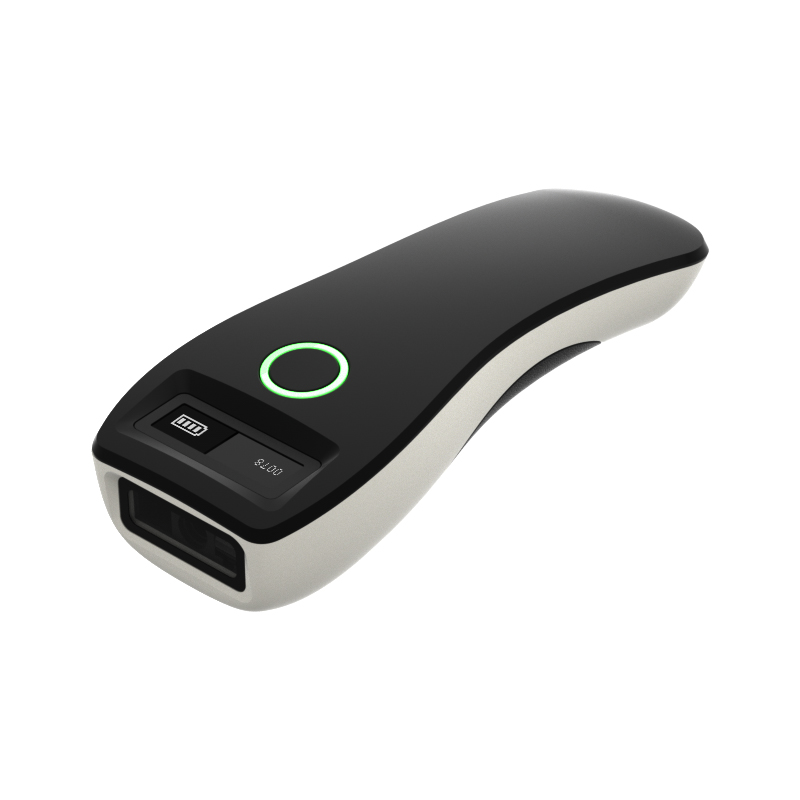

IBC-29, it is portable1D 2D Wireless 2.4G + Bluetooth Handheld Barcode Scanner. It is mini size, light and portable. Using advanced CMOS image recognition technology, intelligent image recognition system, it can easily read barcodes on paper, screens and other media. With excellent code scanning performance, widely adaptable to various application scenarios, including supermarkets, convenience stores, hospitals, pharmacies, shoe and clothing stores, tobacco stores, express logistics, warehouse inventory, express, logistic, etc.
Product Features:
• High-speed decoding, responsive
• Versatile: Provides interfaces such as USB, USB-COM, etc.
• Bluetooth connectivity is supported and communication distances can be up to 10m.
• Support remote online upgrade
• Built-in storage function, support inventory mode
• OLED display
• Small and delicate, easy to carry
• Equipped with vibration feedback prompts
Product Specification:
| Parameters Sheet | |
| Model No. | IBC-29 |
| Product Name | 1D 2D Wireless Bluetooth Handheld Barcode Scanner With Charging Base |
| Physical parameters | |
| Scan mode | Key trigger/ autosensing/ continuous scanning |
| Communication interface | USB-HID /USB-COM |
| Wireless communication distance | Wireless 2.4G: 0-80m (open environment) |
| Bluetooth: 0-20m (open environment) | |
| Prompt mode | Buzzer, display, vibration motor |
| How it is set up | Manually scan the setup codes one after the other |
| Housing material | ABS+PC |
| Cable standard | USB Straight Line 1m |
| Exterior dimensions | 122mm×42mm×30.5mm (barcode scanner) |
| Weight | 60g (net weight) |
| Performance parameters | |
| Internal storage | 900K |
| Sensors | 300,000 CMOS |
| Resolution | 640*480 |
| Light source | White LED |
| Scan angle | ±60°, ±60°,360° (Elevation angle, declination angle, corner of rotation) |
| Scan rate | 120 fps |
| Field of view | 48° (H) x 30° (V) |
| Printing contrast | Min. 15% |
| Decoding kind | 1D: EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39, Code 11, MSI-Plessey,etc |
| 2D: QR Code,Data Matrix,PDF417,Micro QR, Aztec,etc,Support mobile phone screen code reading | |
| Minimum resolution | 1D 3MIL;2D 5MIL |
| Depth of field | QR (20mil): 10~130mm |
| Data Matrix(10mil): 20~100mm | |
| PDF 417 (7mil): 25~105mm | |
| EAN-13 (13mil): 30~175mm | |
| Code 39 (8mil): 25~145mm | |
| Code 128 (7mil): 25~110mm | |
| Electrical parameters | |
| Input voltage | DC 5V±10% |
| Current | Working: 350 mAh; Standby: 130 mAh |
| Battery | 900mAh lithium-ion battery |
| Charging time | About 2 hours |
| Battery life | 5 days (standby), 12 hours (working: scan every 5 seconds) |
| Environment parameters | |
| Temperature | 0°C-50°C (working); -40°C~+60°C (storage). |
| Humidity | 5%-95% non-condensing |
| Ambient brightness | Max.5,000 Lux (fluorescence) |
| Seismic resistance | It can withstand a drop in the air of 1.5m |
