1D USB Handheld Wired Wireless 2.4G Bluetooth Laser Barcode Scanner Reader
1D USB Handheld Wired Wireless 2.4G Bluetooth Laser Barcode Scanner Reader
- Most Competitive Price
We can custom logo ,label,box,etc as your requirements totally,just contact me for accurate price!
- Customized solutions
- Precision manufacturing.
- Affordable excellence, guaranteed.
- Quality products, worldwide delivery.
*Get A Free Quote With No Obligation
- One-Stop Services,Contact Us For Free Samples
- We Provide Global Delivery By Air/Sea/Train Shipping From Door To Door Or To Designated Port.
- 20+ Years Experienced Team To Offer Suitable Packaging Proposal
1D USB Handheld Wired Wireless 2.4G Bluetooth Laser Barcode Scanner Reader
Product Description:
IBC-210 series laser type is universal handheld 1D barcode scanner adopts the international advanced photoelectric conversion technology, coupled with two-way communication and instant error correction feedback to complete the reading of various commonly used one-dimensional codes. It can be used in different lighting environments and has strong applicability. The reading is faster and the operation is more efficient.
Supports the reading of paper barcodes and inverse color barcodes; supports the reading of non-standard barcodes such as printing distortion, wrinkle damage, etc.
Support remote online upgrade.
Product Features:
• High-speed decoding, responsive
• Strong versatility:PS2, USB, USB-COM and other interfaces are provided.
• The reading distance can be as high as 25cm, and the information in the bar code can be read quickly.
• Small shape, light weight, ergonomic design, and comfortable hand feeling.
• Excellent durability: Dustproof and waterproof grade IP54, and can withstand the impact of a 1.5-meter drop to the concrete floor, ensuring reliable operation performance in daily use when liquid splashes, drops and collisions occur.
• Safe and reliable design: Passed CE, RoHS, FCC and other certifications.
Product Specification:
1D Laser Wired Handheld Barcode Scanner: IBC-210
| Model No. | IBC-210 |
| Product Name | 1D Laser Wired Barcode Scanner |
| Technical parameters | |
| The light source type | Visual laser diode, wavelength 650nm |
| Scanning mode | Single line scan |
| Scanning speed | 300 times/second |
| Scanning accuracy | 0.10 mm (pcs0.9) |
| The scanning width | 30mm@ scanner window, 220mm@200mm |
| Scanning depth of field | 0-250 – mm (0.33 mm) PCS 90%) |
| Around the corner | 30° |
| elevation | 65° |
| Angle | 55° |
| Decoding ability | EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China post code, etc. |
| Support interface | Printer USB interface |
| Print contrast | Minimum 30% reflection error |
| ber | 1/5000000 |
| prompt | Buzzer indicator |
| Scanning way | Manual normally on |
| Physical parameters | |
| Overall dimensions | Length x width x height: 160mm x 66mm x 90mm |
| The weight of the | 178g |
| The material | ABS+PC |
| Cable standard | Line: 1.6 m |
| Electrical parameters | |
| voltage | 5V |
| Working current | 400mA |
| The static current | 36mA |
| Laser safety | In line with the national secondary laser safety standards |
| Electromagnetic compatibility | CE & FCC DOC compliance |
| Environmental parameters | |
| Working temperature | 0℃ – 45℃ |
| Storage temperature | – 20℃ to 60℃ |
| humidity | Relative humidity 5%-95% (without condensation) |
| Environmental brightness | Max.5,000 Lux |
| Earthquake resistance | Can withstand a drop of 1.5m |
1D Laser Wireless Handheld Barcode Scanner: IBC-210R (Bluetooth is optional)
| Model No. | IBC-210R |
| Product Name | 1D Laser Wireless Barcode Scanner |
| Technical parameters | |
| Battery capacity | 2000mA |
| Wireless distance | 50-80m |
| Wireless storage | The number of visual characters ranges from 5000-20000 |
| Wireless standby | 30 days |
| Wireless continuous operation | Over 72 hours |
| Transfer mode | 2.4g wireless, USB charging cable can be used as a wired data transfer |
| The light source type | Visual laser diode, wavelength 650nm |
| Scanning mode | Single line scan |
| Scanning speed | 300times /second |
| Scanning accuracy | 0.10 mm (pcs0.9) |
| The scanning width | 30mm@ scanner window, 220mm@200mm |
| Scanning depth of field | 0-250 – mm (0.33 mm) PCS 90%) |
| Around the corner | 30° |
| elevation | 65° |
| Angle | 55° |
| Decoding ability | Ean-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China post code, etc. |
| Support interface | Printer USB interface |
| Print contrast | Minimum 30% reflection error |
| ber | 1/5000000 |
| prompt | Buzzer indicator |
| Scanning way | Manual normally on |
| Physical parameters | |
| Overall dimensions | Length x width x height: 160mm x 66mm x 90mm |
| The weight of the | 180g |
| The material | ABS+PC |
| Cable standard | Line: 1 m |
| Electrical parameters | |
| voltage | 5V |
| Working current | 400mA |
| The static current | 36mA |
| Laser safety | In line with the national secondary laser safety standards |
| Electromagnetic compatibility | CE & FCC DOC compliance |
| Environmental parameters | |
| Working temperature | 0℃ – 45℃ |
| Storage temperature | – 20℃ to 60℃ |
| humidity | Relative humidity 5%-95% (without condensation) |
| Environmental brightness | Max.5,000 Lux |
| Earthquake resistance | Can withstand a drop of 1.5m |

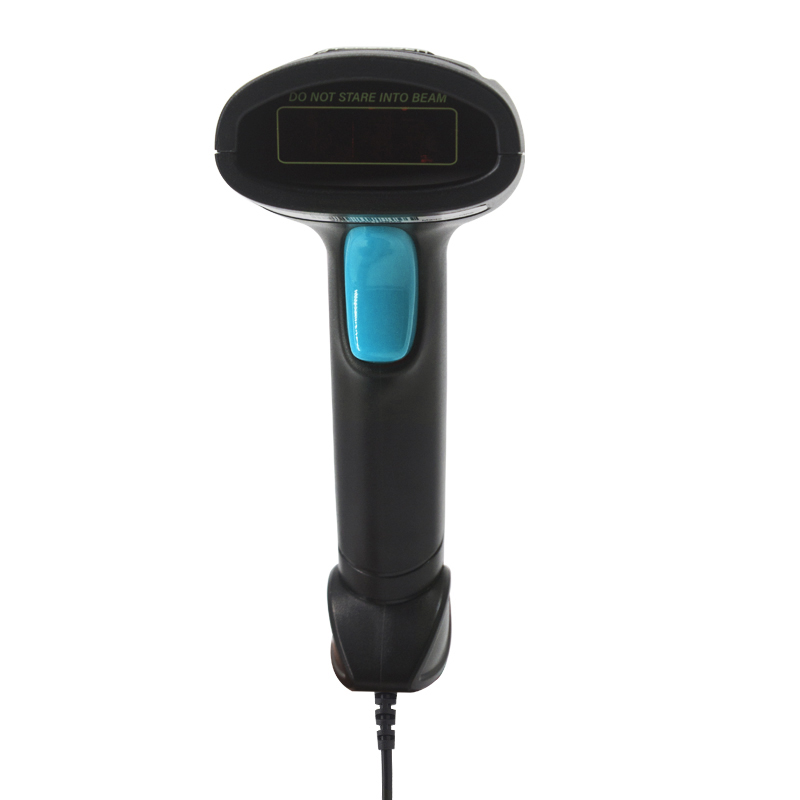

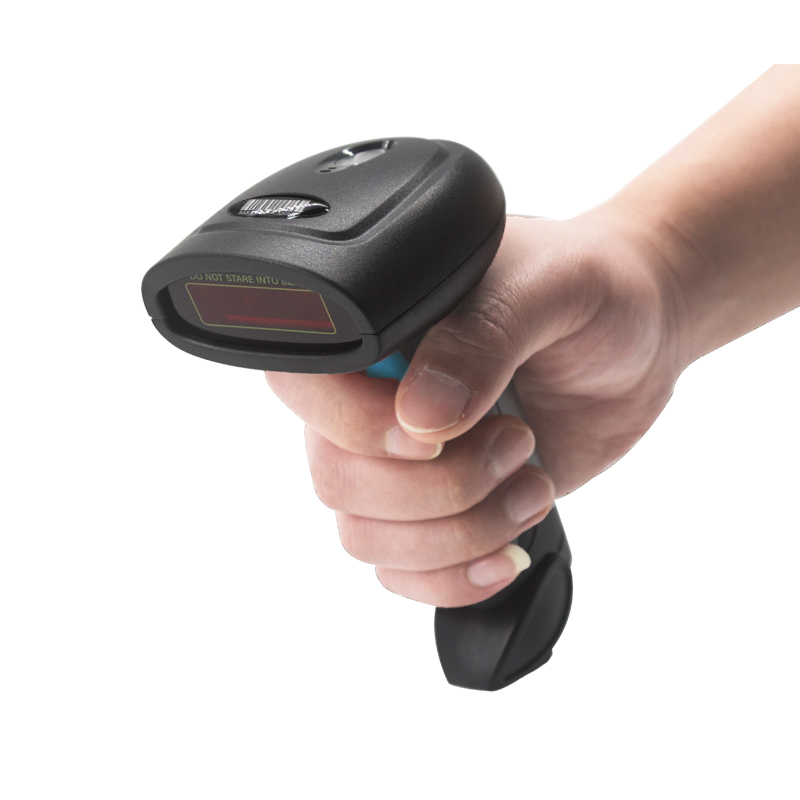

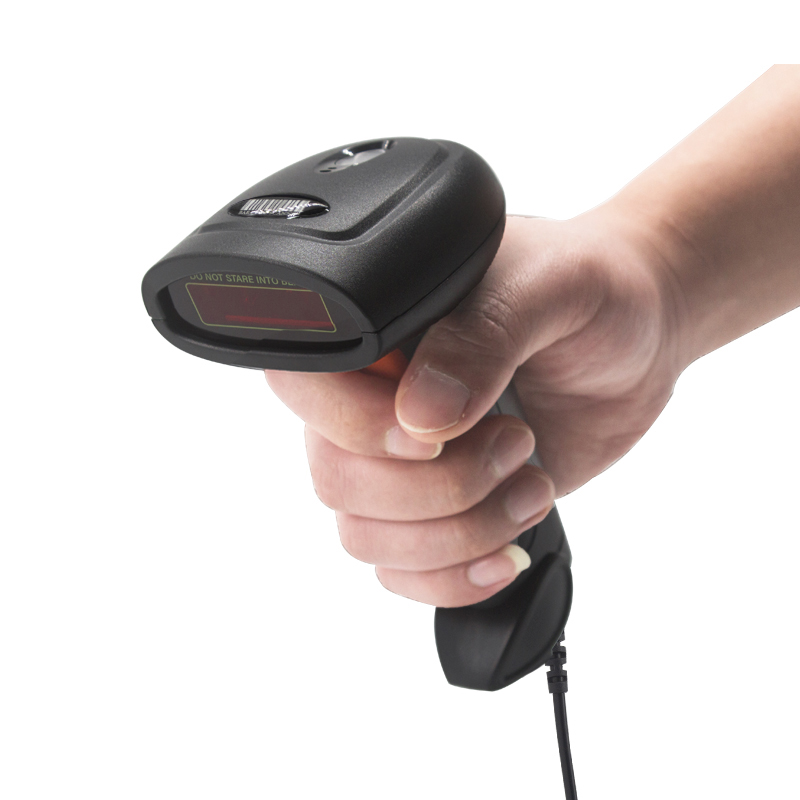

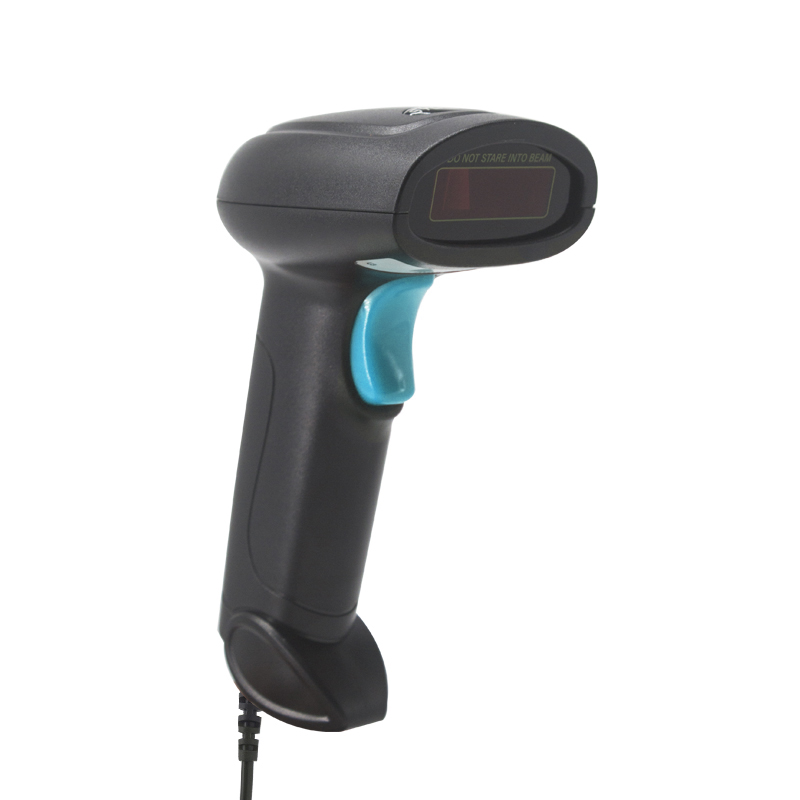

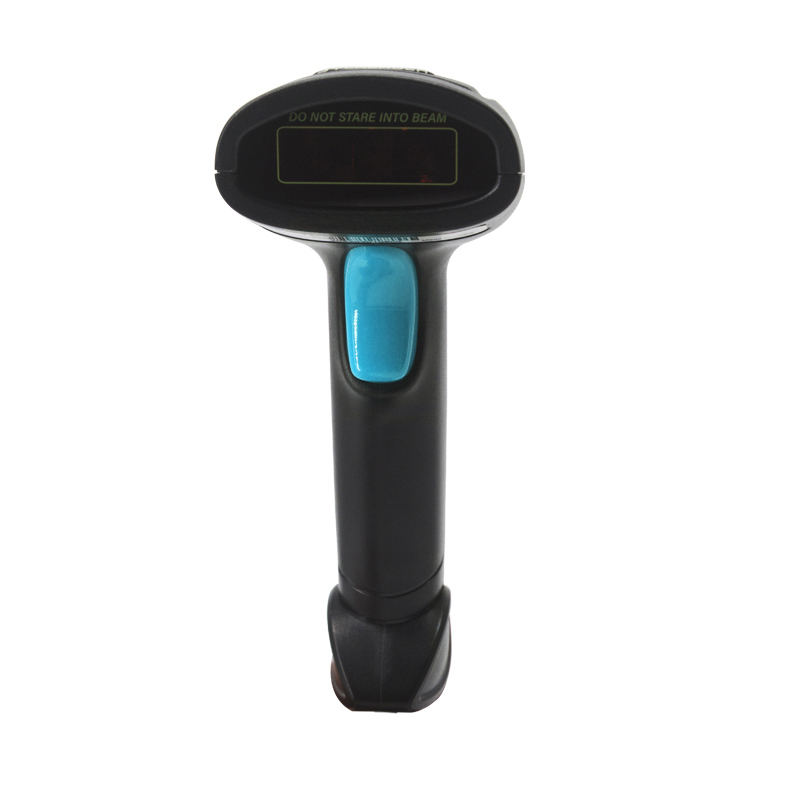

Product Pictures:
