1D USB Handheld Wired Wireless 2.4G Bluetooth CCD Barcode Scanner Reader
Product Description:
IBC-310 series CCD type is universal handheld 1D barcode scanner, using the international advanced photoelectric conversion technology, with two-way communication instant error correction feedback, to complete a variety of commonly used one-dimensional code reading. It can be used in different lighting environments and has strong applicability. Read faster and operate more efficiently.
Support the reading of paper barcodes and anti-color barcodes; support the reading of non-standard barcodes such as printing distortion and wrinkle damage.
Support screen code reading.
Support remote online upgrade.
Product Features:
• High-speed decoding, responsiveness.
• Strong versatility: provideS2, RS232, USB, USB-COM and other interfaces.
• The reading distance can be as high as 20cm, which can quickly read out the information in the barcode.
• Small, lightweight, ergonomic and comfortable.
• Excellent durability: Dustproof and waterproof rated IP54, while withstanding 1.5 meters of drops to the cement floor, ensuring reliable operation in the event of liquid splashes, drops and collisions in daily use.
Product Specification:
1D CCD Wired Handheld Barcode Scanner: IBC-310
| Model No. | IBC-310 |
| Product Name | 1D CCD Wired Barcode Scanner |
| Technical parameters | |
| The type of light source | Red led |
| Scanning speed | 300times/second |
| Scan accuracy | ≥4mil |
| Read depth of field | EAN-13 60mm-160mm (13mil) |
| Code39 50mm-80mm (5mil 10 bytes). | |
| CODE128 30mm-180mm (20mil 16 bytes). | |
| Code39 40mm-90mm (6.67mil 7 bytes). | |
| elevation | 55° |
| Angle | 55° |
| Decoding capability | 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5 |
| Supported interfaces | Printer USB port |
| Prompt mode | Buzzer LED |
| Scan mode | Manual Solid |
| Physical parameters | |
| Dimensions | Length× width× height: 160mm×66mm×90mm |
| weight | 173.3g (Net weight); 233.5g (Gross Weight). |
| Material | ABS+PC |
| Cable standards | Straight Line: 1.6m |
| Electrical parameters | |
| voltage | 5V |
| Operating current | 400mA |
| Quiescent current | 36mA |
| Environment parameters | |
| Operating temperature | 0℃-45℃ |
| Storage temperature | -20℃-60℃ |
| humidity | Relative humidity 5%-95% (non-condensing) |
| Ambient brightness | Max.5,000 Lux (fluorescent) |
| Seismic resistance | It can withstand an aerial drop of 1.5m |
1D CCD Wireless Handheld Barcode Scanner: IBC-310R
| Model No. | IBC-310R |
| Product Name | 1D CCD Wireless Barcode Scanner |
| Technical parameters | |
| Battery capacity | 2000mA |
| Wireless distance | 50-80 meters |
| Wireless storage | 5000-20000 depending on the number of characters |
| Wireless standby | 30 days |
| Wireless continuous operation | More than 72 hours |
| Transfer mode | 2.4G wireless, USB charging cable can be used as wired transmission data |
| The type of light source | Red led |
| Scanning speed | 300times/second |
| Scan accuracy | ≥4mil |
| Read depth of field | EAN-13 60mm-160mm (13mil) |
| Code39 50mm-80mm (5mil 10 bytes). | |
| CODE128 30mm-180mm (20mil 16 bytes). | |
| Code39 40mm-90mm (6.67mil 7 bytes). | |
| elevation | 55° |
| Angle | 55° |
| Decoding capability | 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5 |
| Supported interfaces | Printer USB port |
| Prompt mode | Buzzer LED |
| Scan mode | Manual Solid |
| Physical parameters | |
| Dimensions | Length× width× height: 160mm×66mm×90mm |
| weight | 180g |
| Material | ABS+PC |
| Cable standards | Straight line: 1m |
| Electrical parameters | |
| voltage | 5V |
| Operating current | 400mA |
| Quiescent current | 36mA |
| Environment parameters | |
| Operating temperature | 0℃-45℃ |
| Storage temperature | -20℃-60℃ |
| humidity | Relative humidity 5%-95% (non-condensing) |
| Ambient brightness | Max.5,000 Lux (fluorescent) |
| Seismic resistance | It can withstand an aerial drop of 1.5m |
1D CCD Wireless Bluetooth Handheld Barcode Scanner: IBC-310RB
| Model No. | IBC-310RB |
| Product Name | 1D CCD Wireless Bluetooth Barcode Scanner |
| Technical parameters | |
| Battery capacity | 2000mA |
| Wireless distance | 50-80 meters |
| Bluetooth distance | 10 meters |
| Wireless storage | 5000-20000 depending on the number of characters |
| Wireless standby | 30 days |
| Wireless continuous operation | More than 72 hours |
| Transfer mode | 2.4G wireless, USB charging cable can be used as wired transmission data |
| The type of light source | Red led |
| Scanning speed | 300times/second |
| Scan accuracy | ≥4mil |
| Read depth of field | EAN-13 60mm-160mm (13mil) |
| Code39 50mm-80mm (5mil 10 bytes). | |
| CODE128 30mm-180mm (20mil 16 bytes). | |
| Code39 40mm-90mm (6.67mil 7 bytes). | |
| elevation | 55° |
| Angle | 55° |
| Decoding capability | 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5 |
| Supported interfaces | Printer USB port |
| Prompt mode | Buzzer LED |
| Scan mode | Manual Solid |
| Physical parameters | |
| Dimensions | Length× width× height: 160mm×66mm×90mm |
| weight | 180g |
| Material | ABS+PC |
| Cable standards | Straight line: 1m |
| Electrical parameters | |
| voltage | 5V |
| Operating current | 400mA |
| Quiescent current | 36mA |
| Environment parameters | |
| Operating temperature | 0℃-45℃ |
| Storage temperature | -20℃-60℃ |
| humidity | Relative humidity 5%-95% (non-condensing) |
| Ambient brightness | Max.5,000 Lux (fluorescent) |
| Seismic resistance | It can withstand an aerial drop of 1.5m |

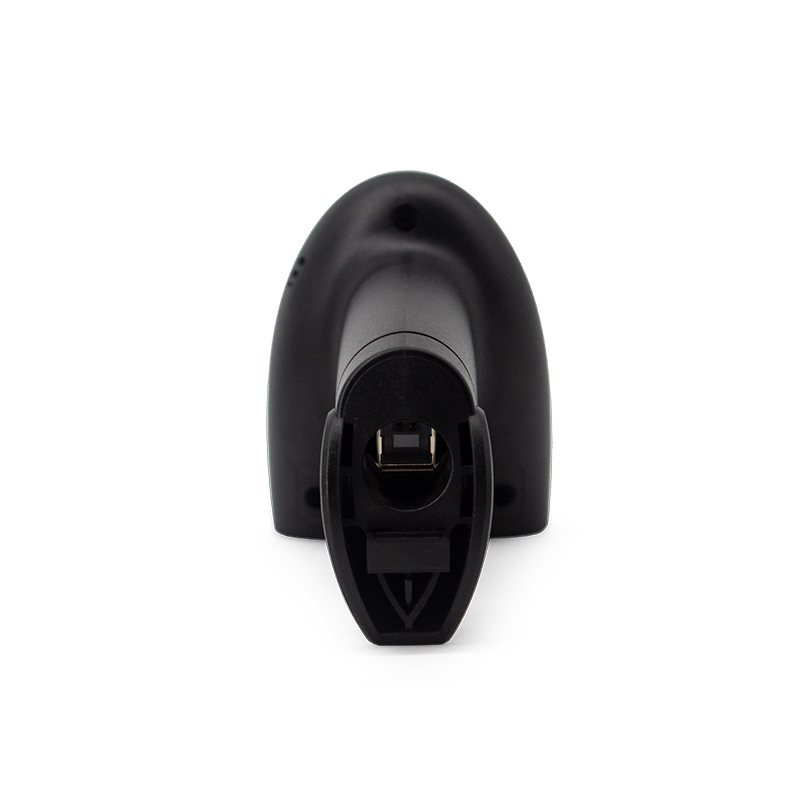

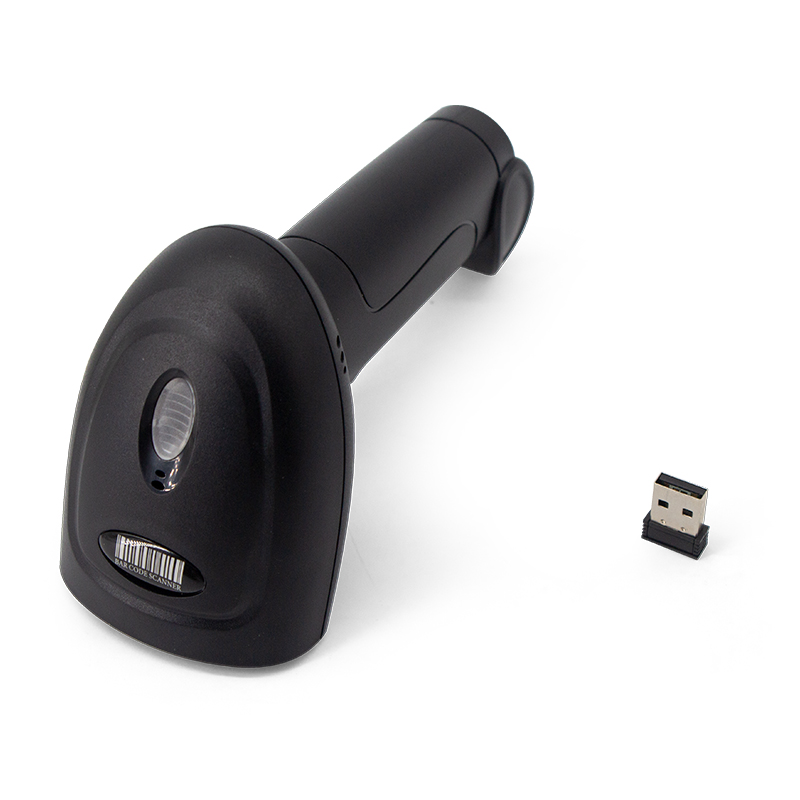

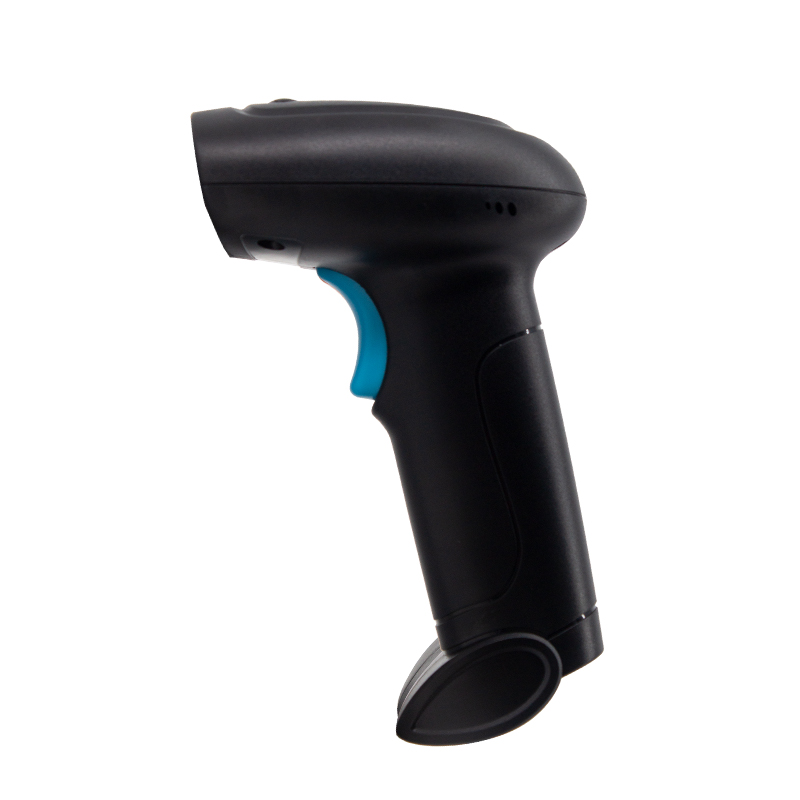

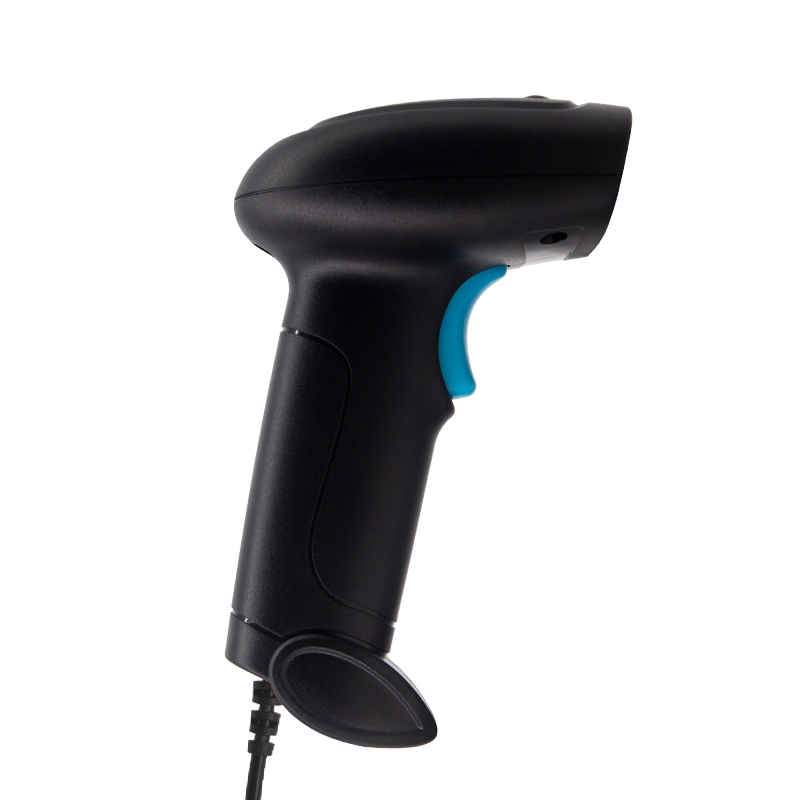

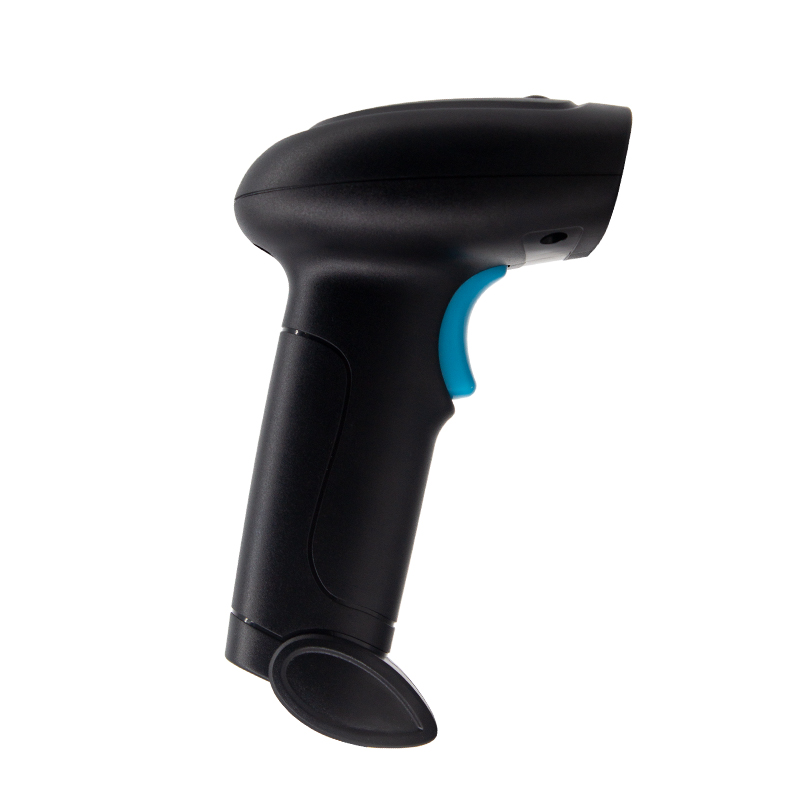

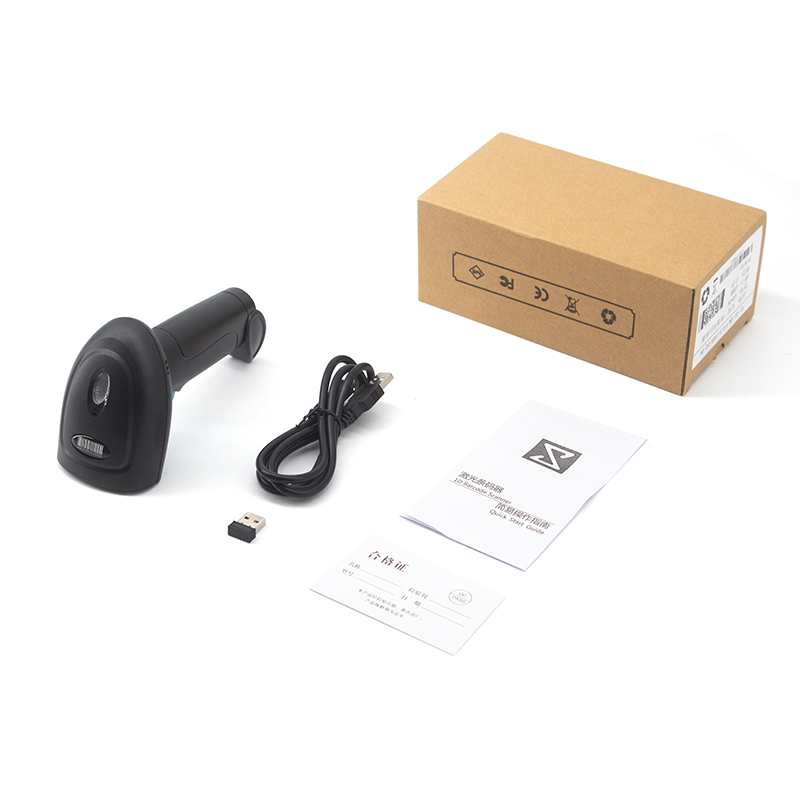

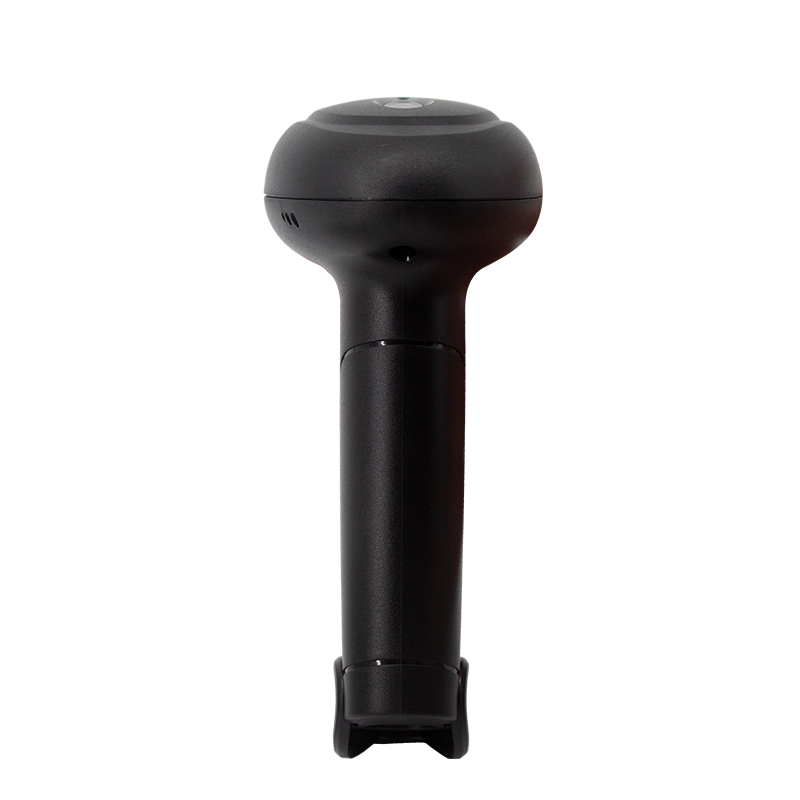

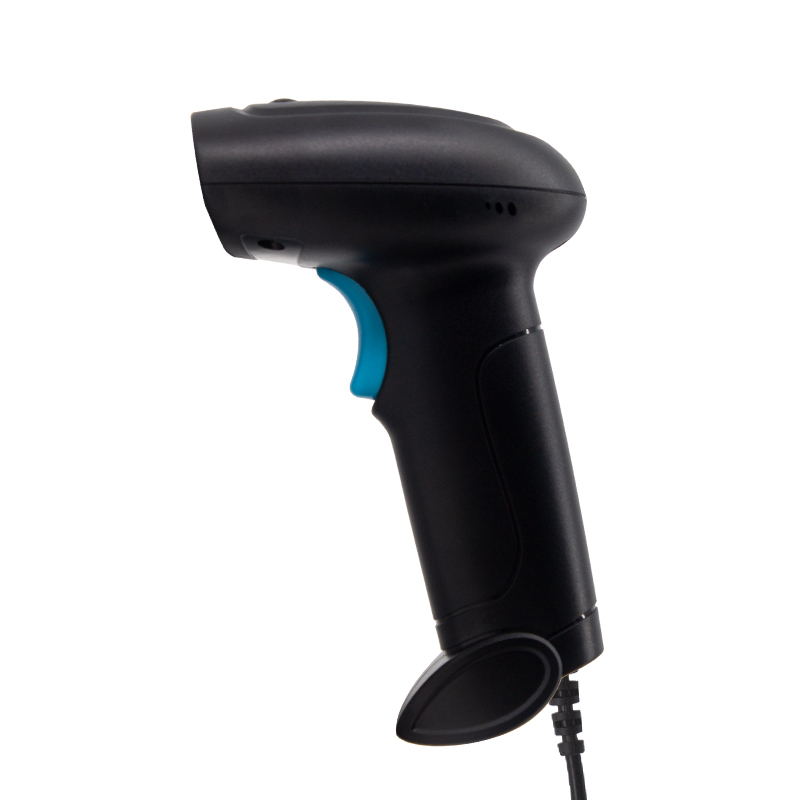

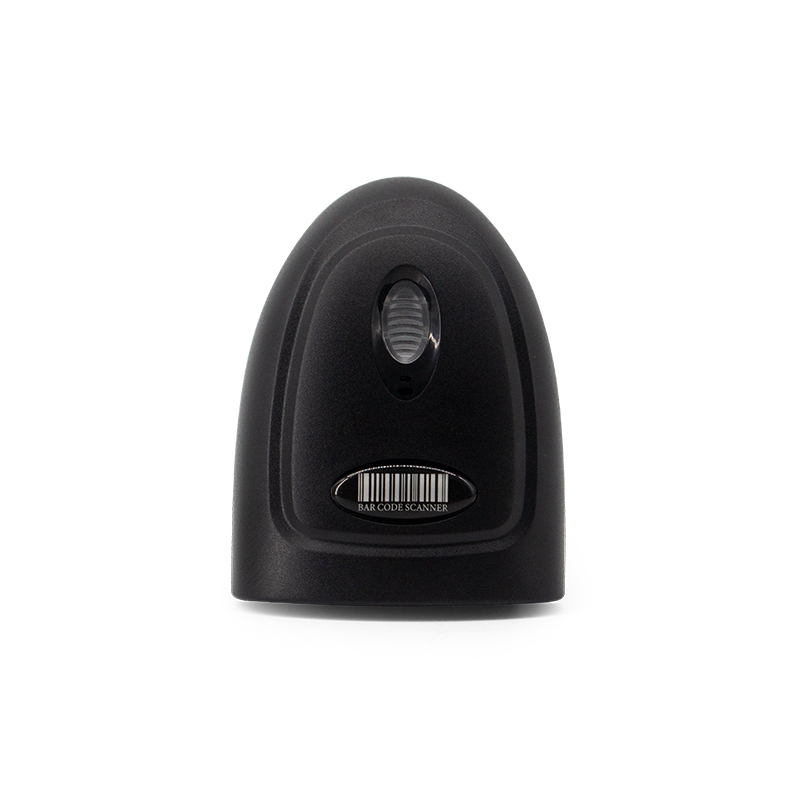

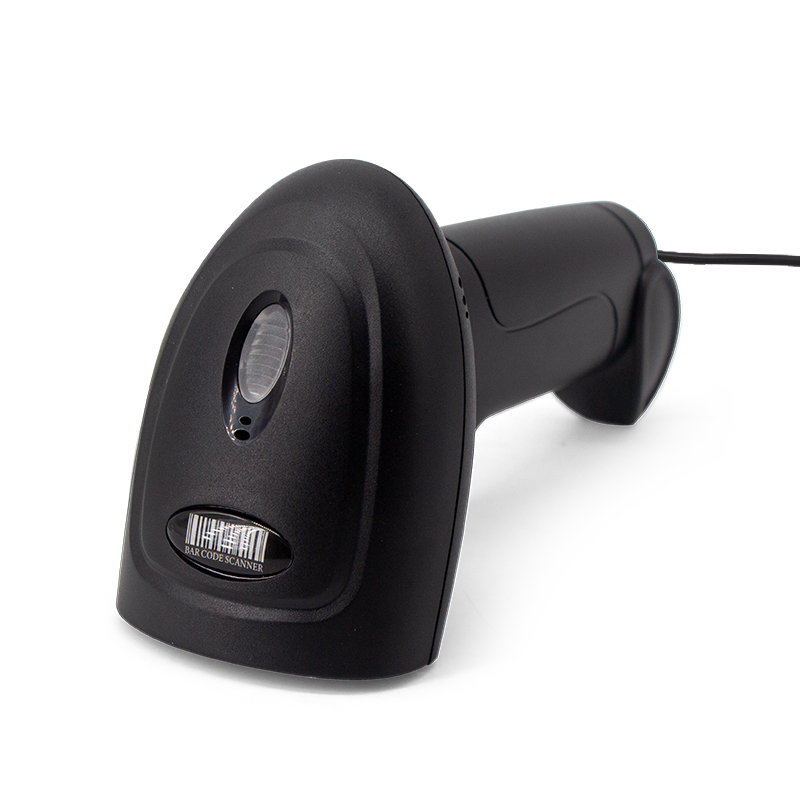

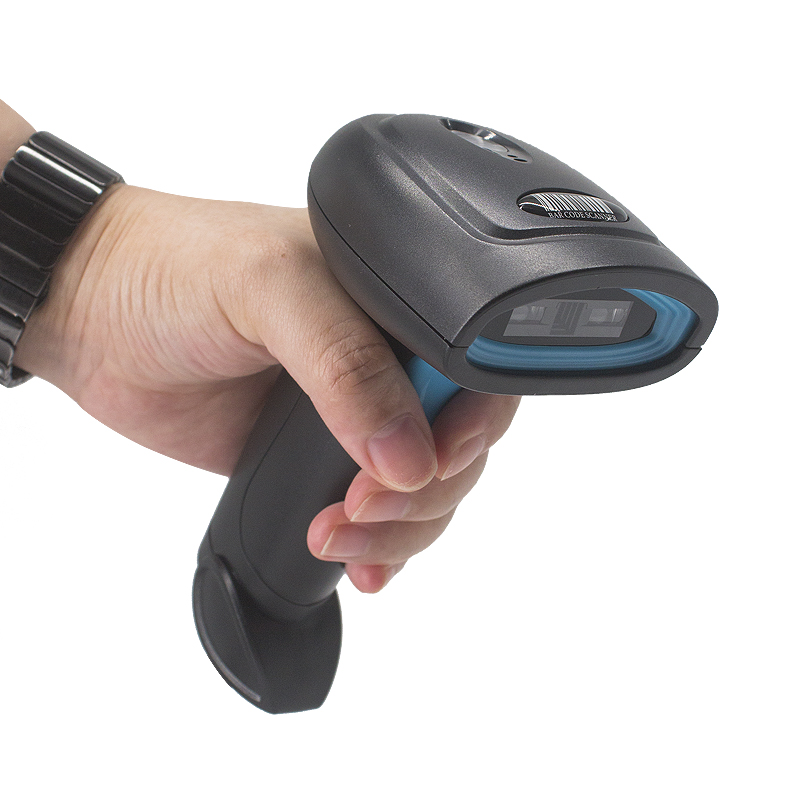

Product Pictures:
