1D Laser Bar Code Reader USB Wired Wireless Bluetooth Handheld Barcode Scanner
1D Laser Bar Code Reader USB Wired Wireless Bluetooth Handheld Barcode Scanner
- Most Competitive Price
We can custom logo ,label,box,etc as your requirements totally,just contact me for accurate price!
- Customized solutions
- Precision manufacturing.
- Affordable excellence, guaranteed.
- Quality products, worldwide delivery.
*Get A Free Quote With No Obligation
- One-Stop Services,Contact Us For Free Samples
- We Provide Global Delivery By Air/Sea/Train Shipping From Door To Door Or To Designated Port.
- 20+ Years Experienced Team To Offer Suitable Packaging Proposal
1D Laser Bar Code Reader USB Wired Wireless Bluetooth Handheld Barcode Scanner
Product Test Video:
Product Description:

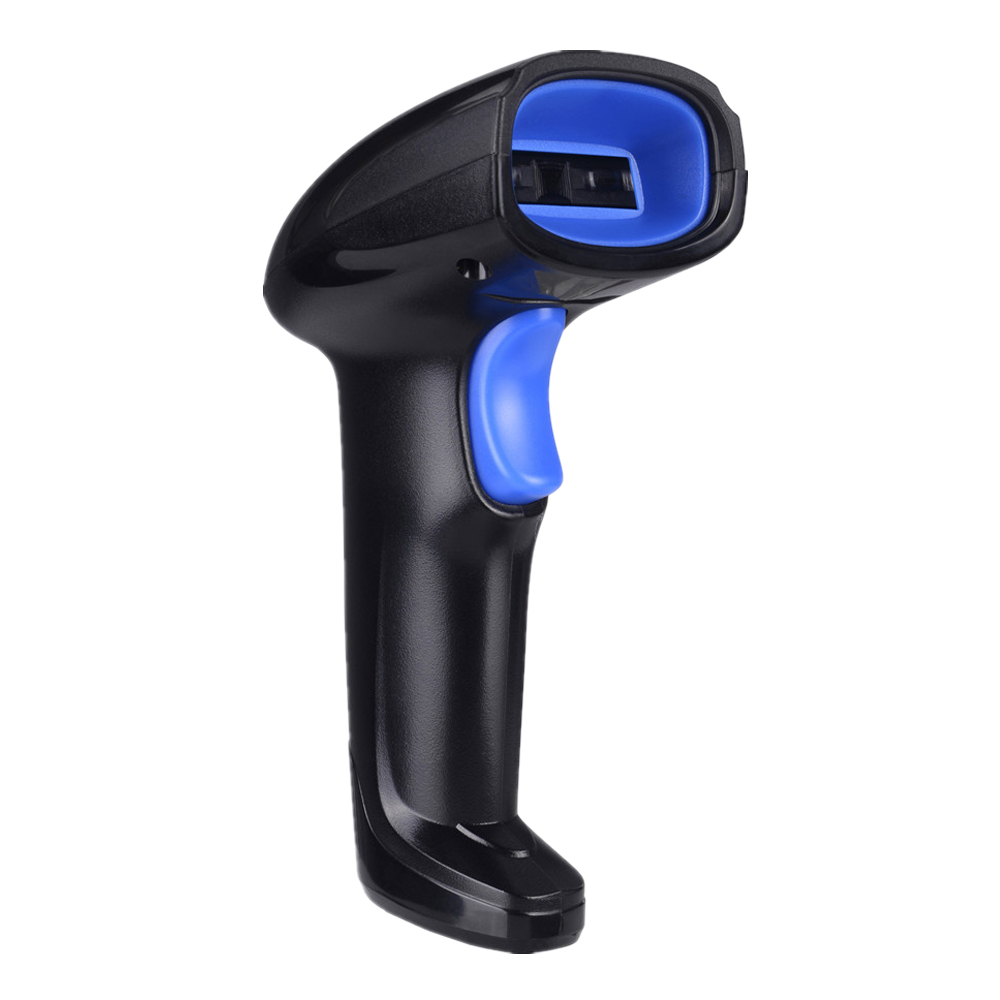

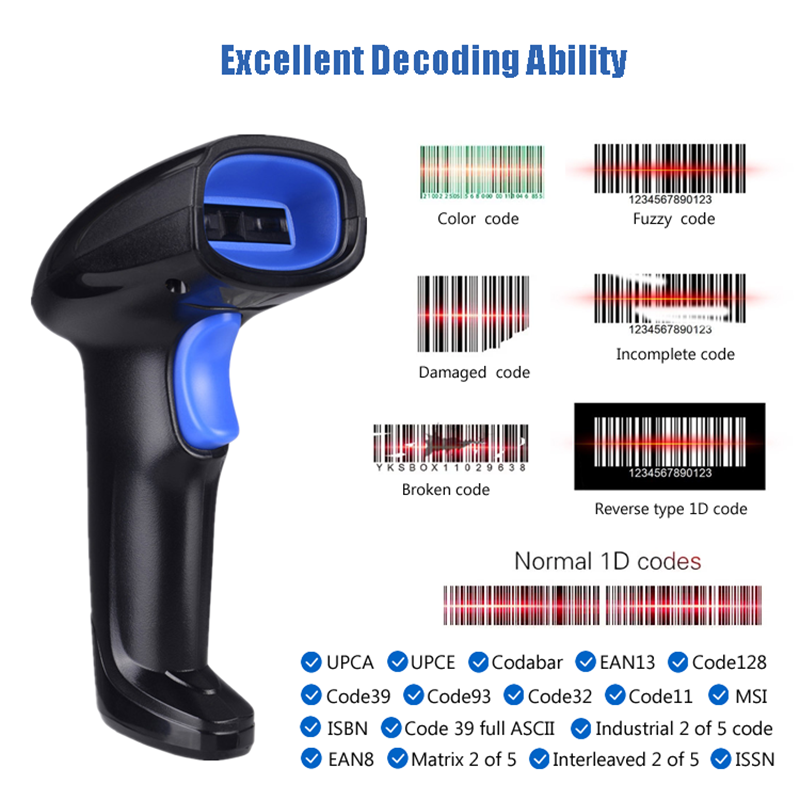

IBC-610 series bar code scanner is good performance on reading 1D. With super scanning and decoding ability, it can read incomplete and fuzzy codes. With Excellent Error-Correcting Performance, it can scan the decodes for damaged lncomplete Barcode, fuzzy barcode, twsited wrinkled barcode, reflective barcode, colorful and long barcode etc. It supports the multinational language keyboard. It is widely used in Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.
Product Features:

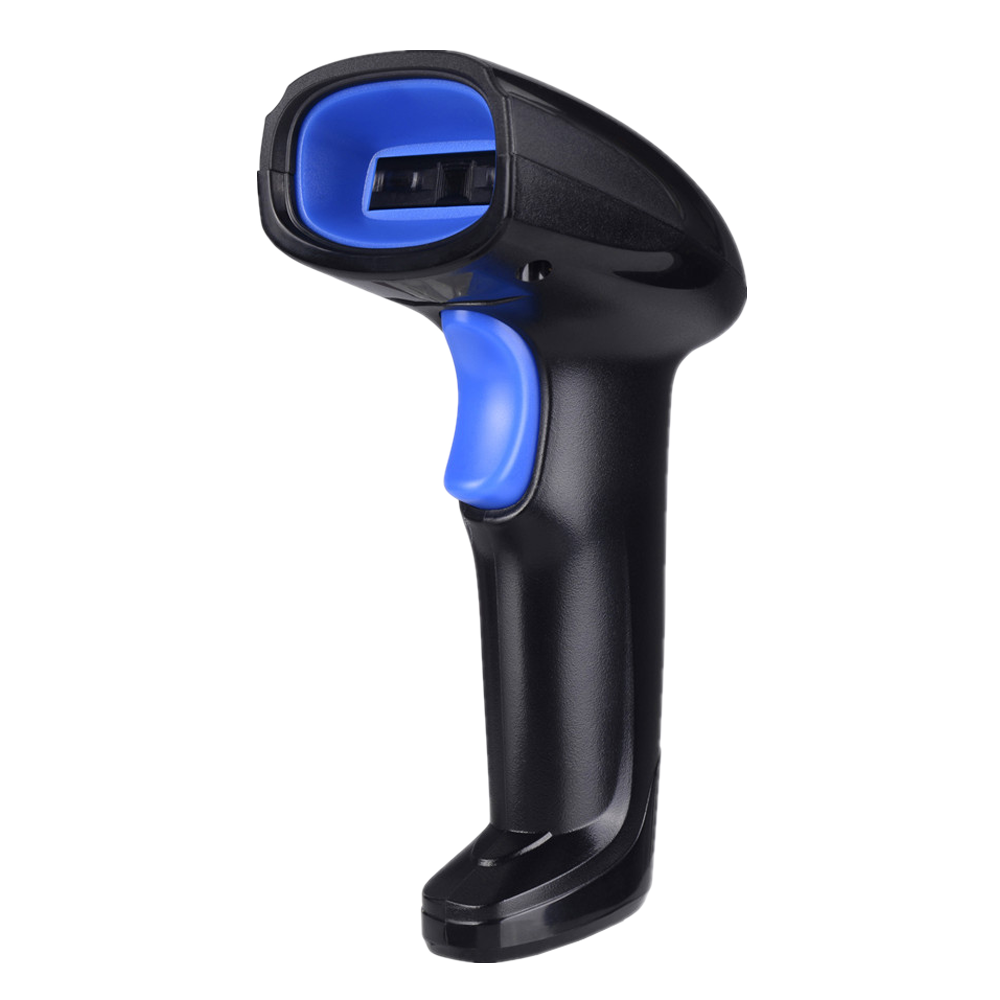

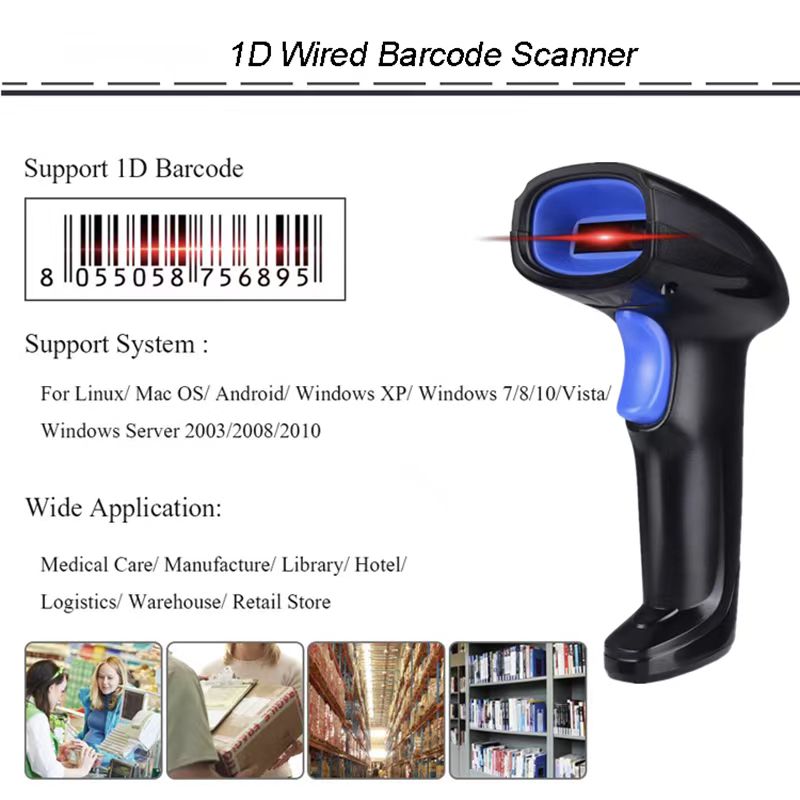

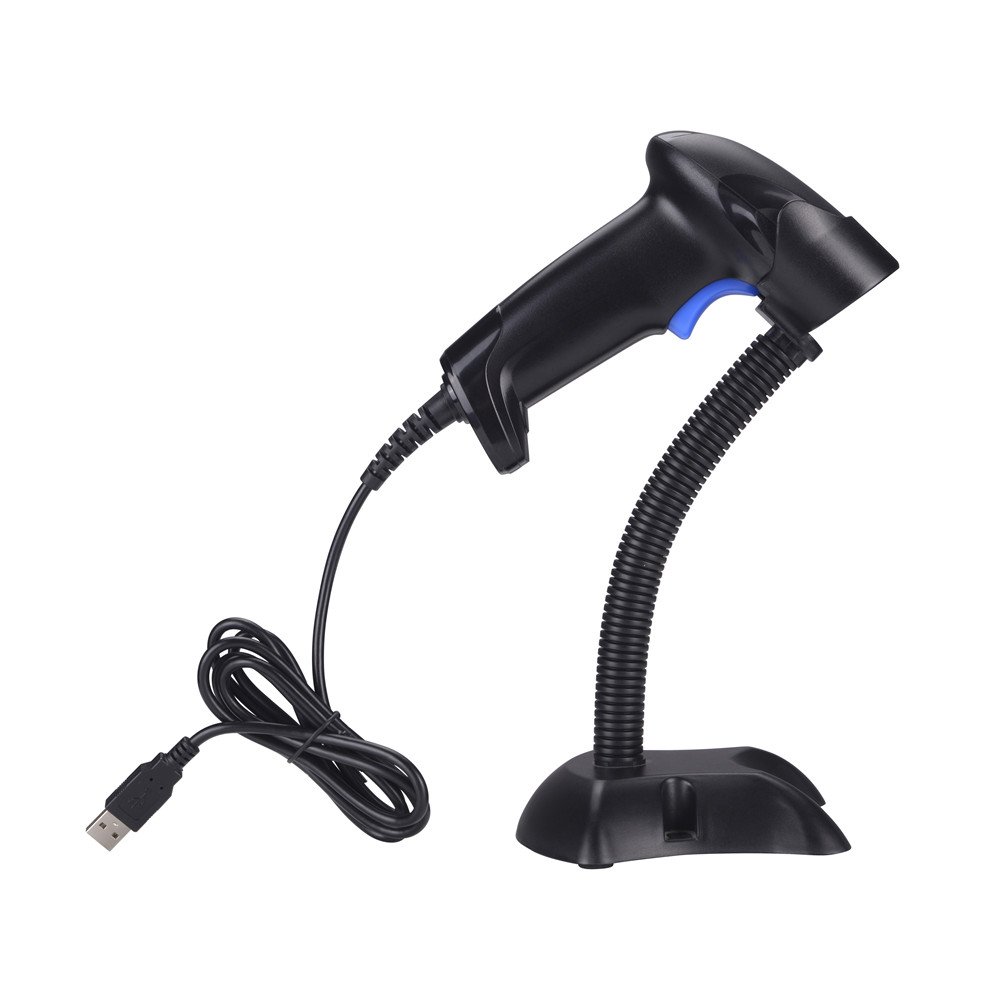

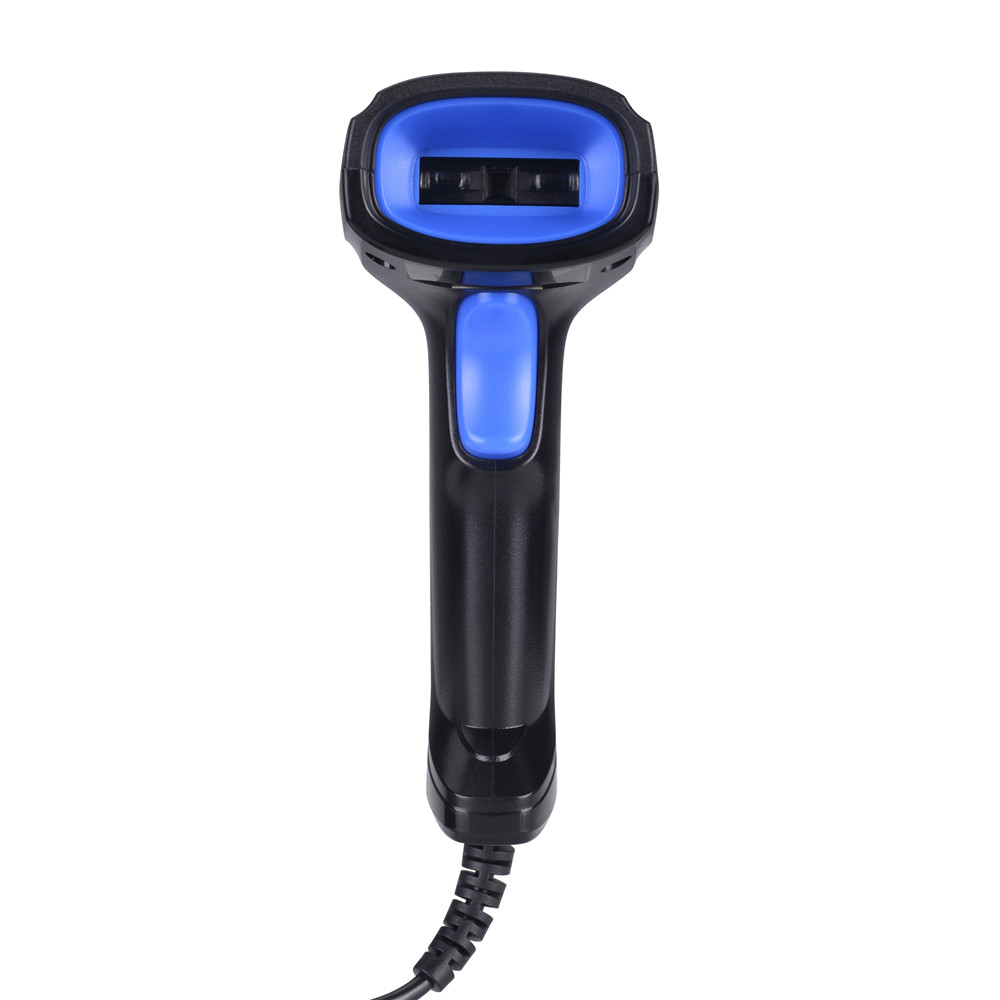

1D Wired Handheld Barcode Scanner IBC-610:
* Factory direct sale, Low price high performance.

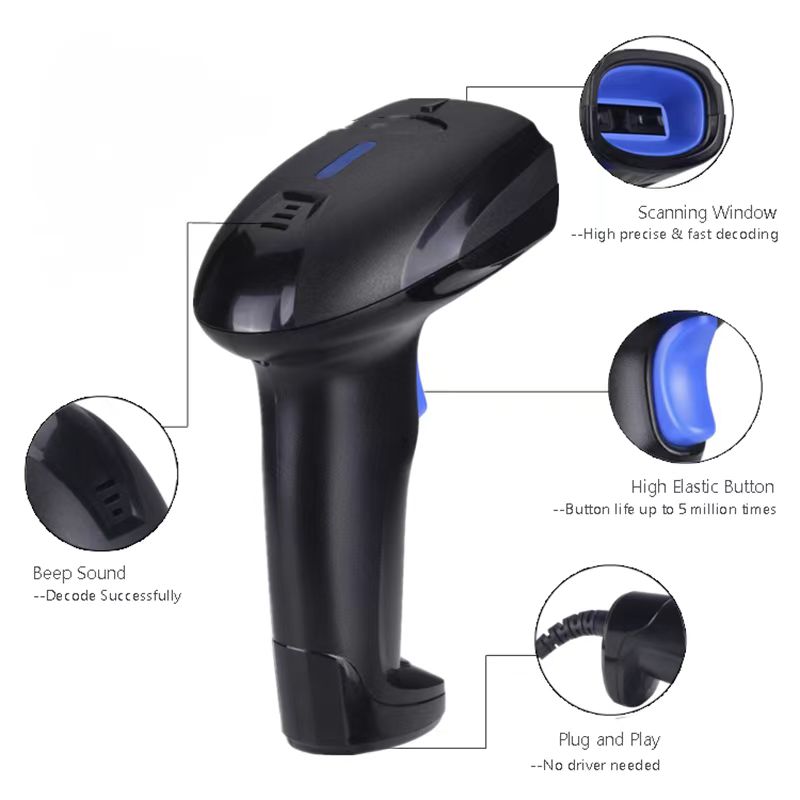

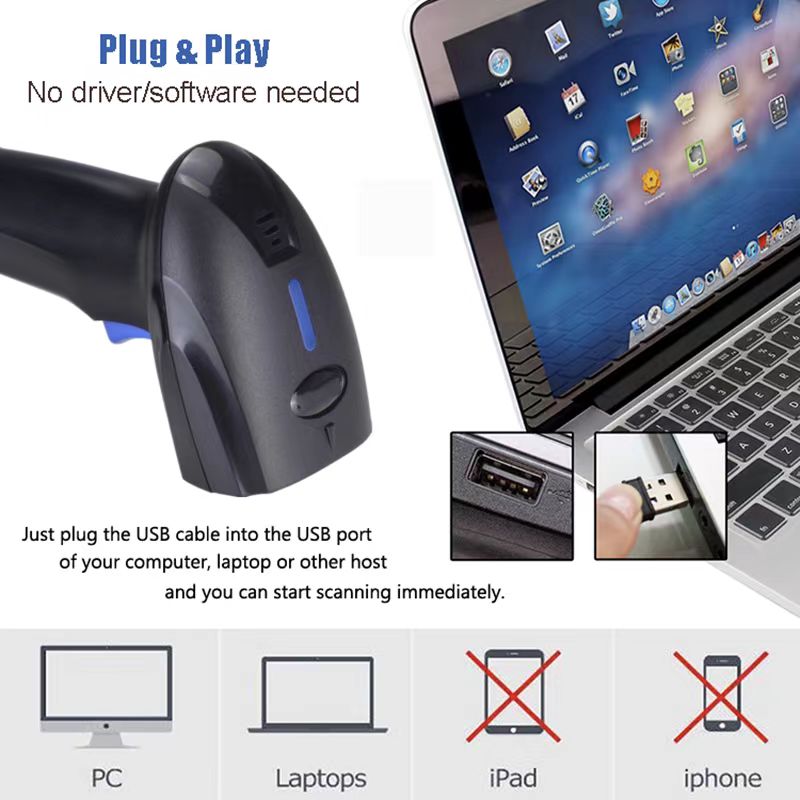

* No driver needed, plug and play.
* Support the multinational language keyboard.
* Service life of button reaches up to 5 million times.
* 32-Bit ARM processor and scan speed 300scans/sec.
* Manual trigger/continuous scan(for choice),very comfortable operating.
* Dopt a highly integrated design, high quality shell, have IP45 protection grade.
* Support connection with computer, laptop. Compatible Operating System for Linux, Windows XP,7,8, 10.

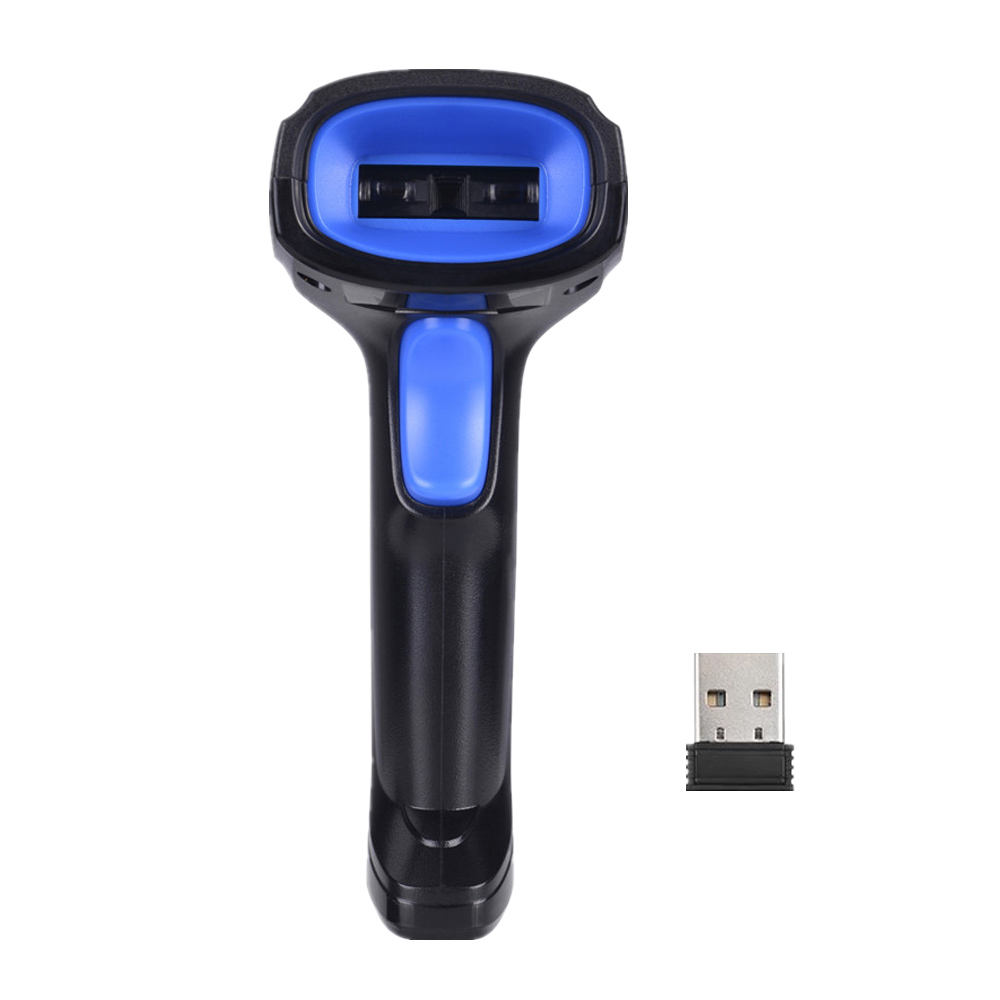

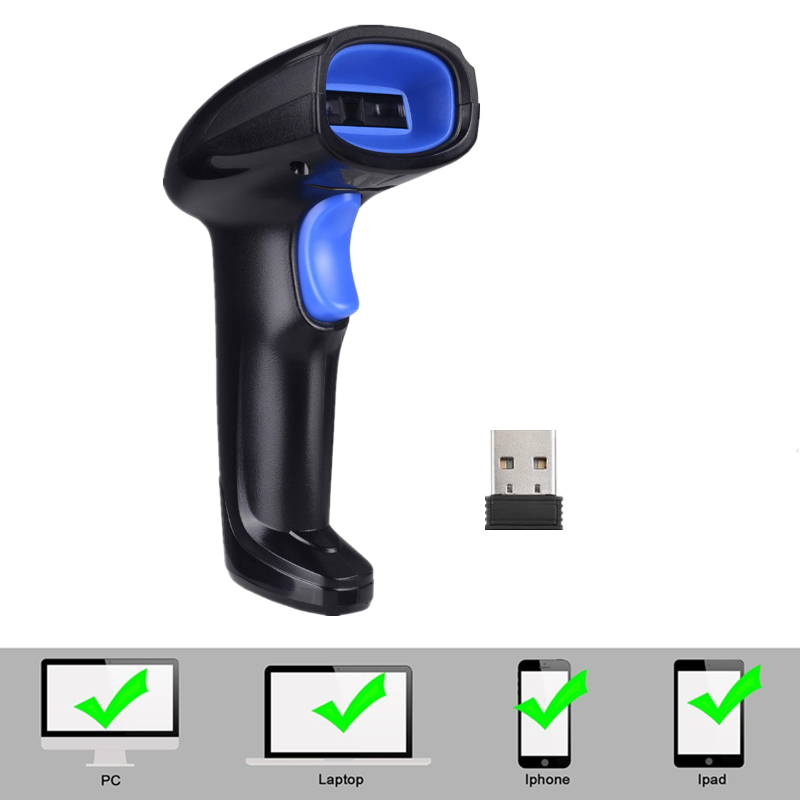

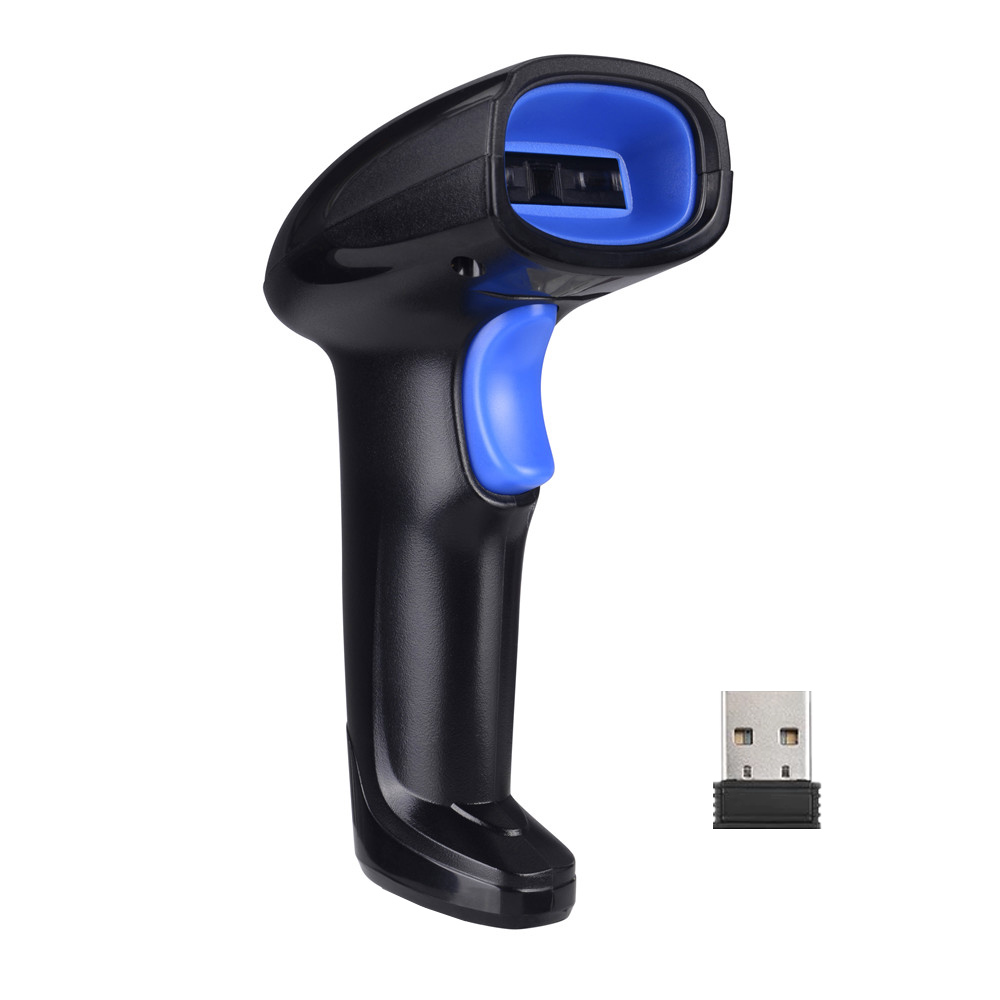

1D Wireless Handheld Barcode Scanner IBC-610R:
* Factory direct sale, Low price high performance.
* With mini USB receiver, plug and play.
* Large capacity battery,1800MAH Li-ion battery.
* Service life of button reaches up to 5 million times.
* 32-Bit ARM processor and scan speed 300scans/sec.
* 2.4GHz wireless and USB wired connection, 2 modes for option.

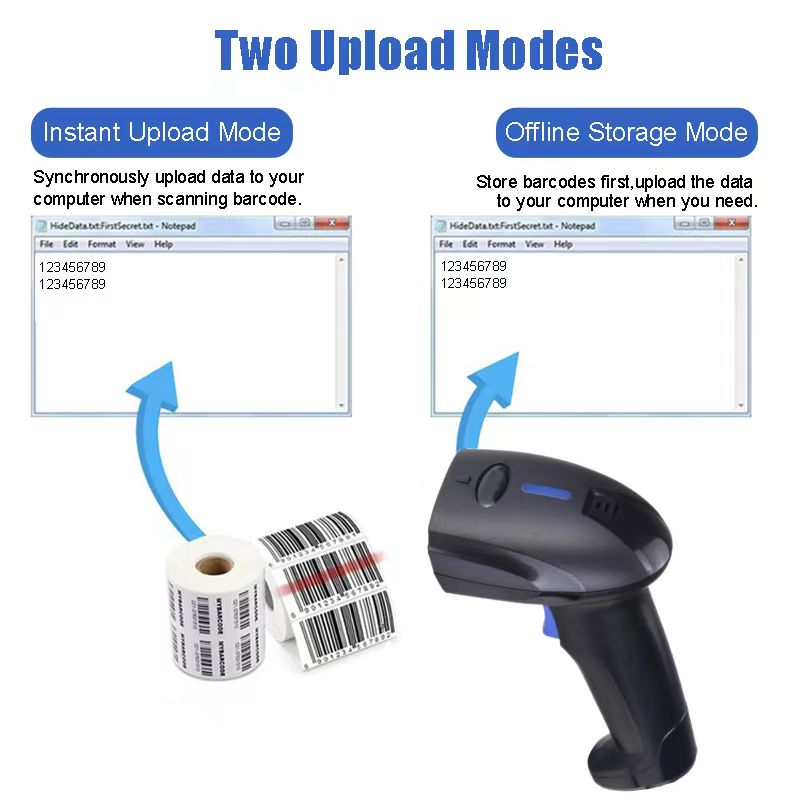

* Supports instant upload mode and storage mode.
* 2.4G Wireless communication distance outdoor 100m, indoor 80m.
* Support connection with computer, laptop. Compatible Operating System for Linux, Windows XP,7,8, 10.
* Can be customized according to customer demand.
1D Wireless Bluetooth Handheld Barcode Scanner IBC-610RB:

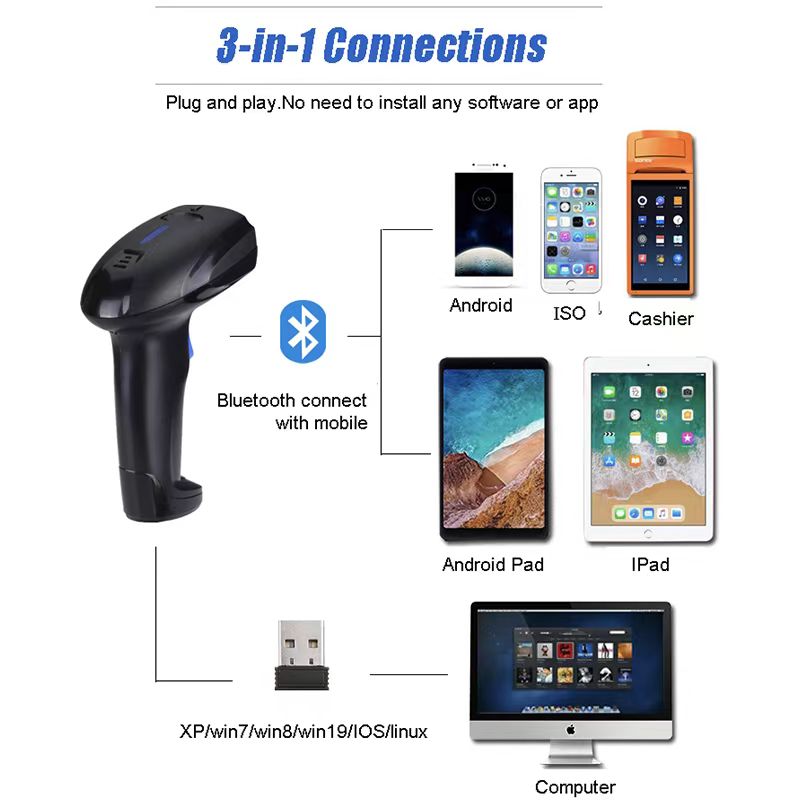

* Bluetooth/2.4G/Wired Mode, 3modes for option.
* 32-Bit ARM processor and scan speed 300 scans/sec.
* Supports instant upload mode and storage mode.
* Support the multinational language keyboard.”

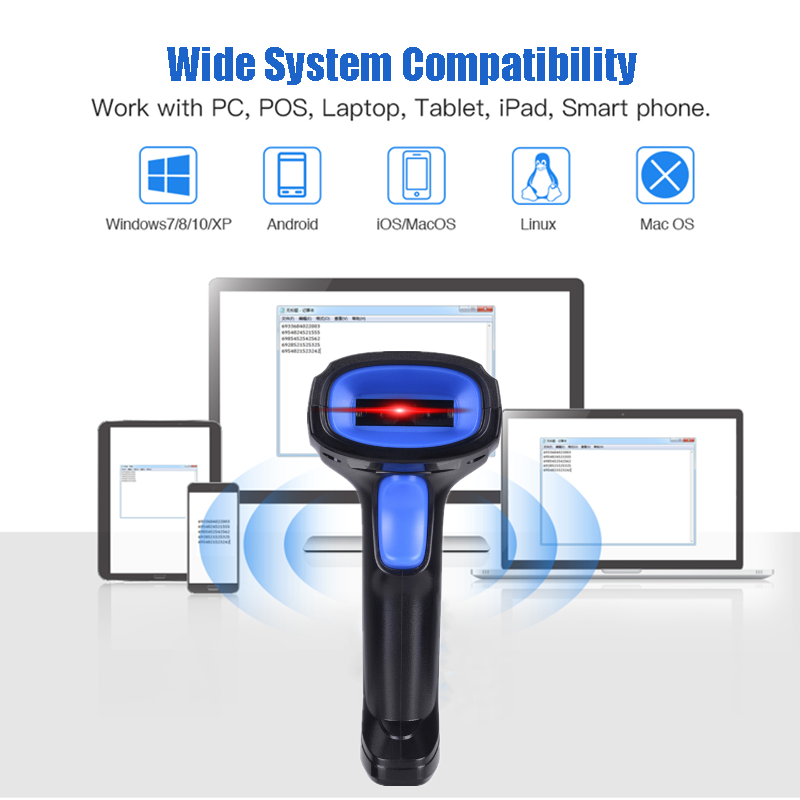

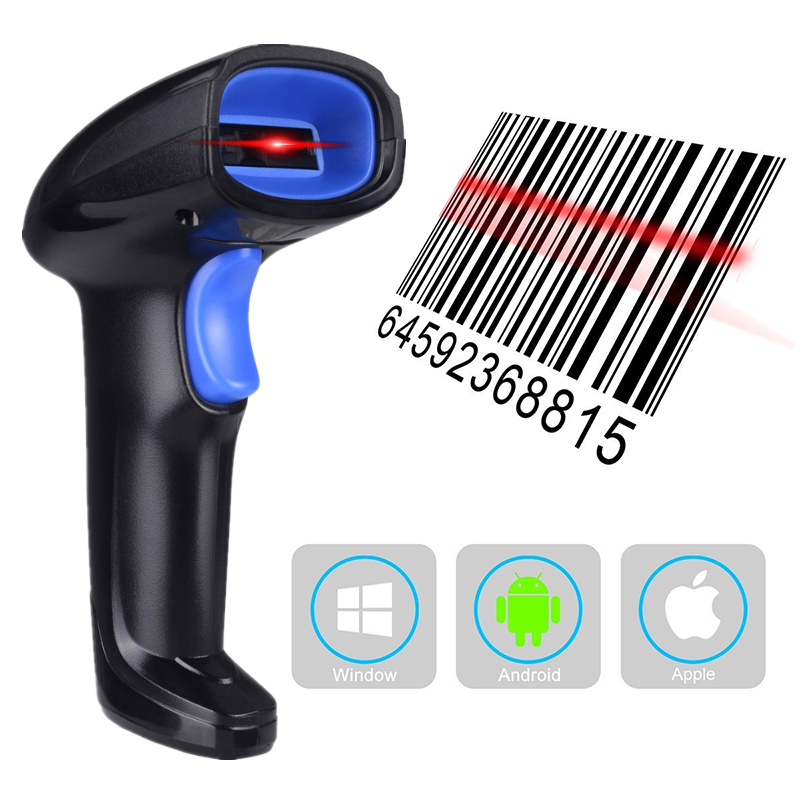

* Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.
* Built-in 1800mAh Battery, it can support 20 hours Continuous scanning and 2 months
standby after 4hours full charge.
* Support turn on or off the sound, hide/add custom prefix/suffix digits, delete character, add
keyboard keys (TAB, CR&LF, etc.)
* Can be customized according to customer demand.
Product Specification:
| Parameters: | ||
| Product name | 1D Laser Wired Handheld Barcode Scanner | |
| Model | IBC-610 | |
| Scanning type | Bi-directional | |
| CPU | ARM 32-bit Cortex | |
| Light source | 650 nm visual laser diode | |
| Trigger Mode | Handheld, Continuous | |
| Indication | Buzzer & LED | |
| Printing Contract | ≥25% | |
| Resolution | 4mil | |
| Decoding speed | 300scans/sec | |
| Bit error rate | 1/5millon | |
| Scanning width | 5-30cm | |
| Depth of Field | 4mil | 2mm-85mm |
| 10mil | 2mm-320mm | |
| 15.6mil | 5mm-580mm | |
| 35mil | 10mm-900mm | |
| Scanning angle | rotor angel±30°, inclination± 55°, declination ± 60° | |
| Anti inference | industrial lighting or sun will not make any difference | |
| Decoding Capability | UPC/EAN, with complementary UPC/EAN Code128, Code39, Code 39 Full ASCII, Coda bar, industrial/Interleaved2 of 5, Code93, MSI, Code11, ISBN, ISSN, China post, etc | |
| Life | Button life 5000, 000 times ; laser life: 12000 hours | |
| Interface | USB / RS232 / PS2 / TTL | |
| Voltage | 5/3.3 V | |
| Operating current | 40ma (operation mode); 28ma (standby mode) 154ma (max peak) |
|
| Temperature | Working : -20℃-50℃ Storage: -40℃-60℃ | |
| Material | ABS+PC | |
| Drop test | 1.8m fall to concrete | |
| Certificate | CE, FCC, RoHS, IP54 | |
| Product name | 1D Laser Wireless Handheld Barcode Scanner | |
| Model | IBC-610R | |
| Transmission mode : 2.4G Wireless/Wired | ||
| Scanning type: Bi-directional | ||
| Distance: 100m/ 1.5m | ||
| CPU: ARM 32-bit Cortex | ||
| Storage: 10000 barcodes | ||
| Battery: 1800mAh | ||
| Trigger Mode : Handheld, Continuous | ||
| Light source: 650nm LD | ||
| Printing Contract : ≥25% | ||
| Indication: Buzzer & LED | ||
| Resolution : 4mil | ||
| Scanning width : 5-30cm | ||
| Decoding speed: 300scans/sec | ||
| Bit error rate : 1/5million | ||
| Button life : 5000, 000 times | ||
| Laser life: 12000 hours | ||
| Depth Of Field | 4mil | 2mm-85mm |
| 10mil | 2mm-320mm | |
| 15.6mil | 5mm-580mm | |
| 35mil | 10mm-900mm | |
| Decoding Capability: 1D: UPC/EAN, with complementary UPC/EAN, Code128, Code39, Code 39Full ASCII, Coda bar, industrial /Interleaved 2 of 5 Code93, MSI, Code11, ISBN, ISSN, China post, etc |
||
| Scanning angle: rotor angel±30°, inclination± 55°, declination ± 60° | ||
| Anti inference: industrial lighting or sun will not make any difference | ||
| Temperature : Working : -20℃-50℃ Storage: -40℃-60℃ | ||
| Working current: 38mA–185mA (max peak) | ||
| Standby current : 30mA | ||
| Working time : 3 to 7days | ||
| Charging power: 5V | ||
| Material : ABS+PC | ||
| Drop test : 1.8m | ||
| Certificate : CE, FCC, RoHS, IP54 | ||
| Product name | 1D Laser Wireless Bluetooth Handheld Barcode Scanner | |
| Model | IBC-610RB | |
| Transmission mode : Bluetooth/2.4G/Wired | ||
| Scanning type: Bi-directional | ||
| Distance: 50m/ 100m/ 1.5m | ||
| CPU: ARM 32-bit Cortex | ||
| Storage: 10000 barcodes | ||
| Battery: 1800mAh | ||
| Trigger Mode : Handheld, Continuous | ||
| Light source: 650nm LD | ||
| Printing Contract : ≥25% | ||
| Indication: Buzzer & LED | ||
| Resolution : 4mil | ||
| Scanning width : 5-30cm | ||
| Decoding speed: 300scans/sec | ||
| Bit error rate : 1/5million | ||
| Button life : 5000, 000 times | ||
| Laser life: 12000 hours | ||
| Depth Of Field |
4mil | 2mm-85mm |
| 10mil | 2mm-320mm | |
| 15.6mil | 5mm-580mm | |
| 35mil | 10mm-900mm | |
| Decoding Capability: 1D: UPC/EAN, with complementary UPC/EAN, Code128, Code39, Code 39Full ASCII, Coda bar, industrial /Interleaved 2 of 5 Code93, MSI, Code11, ISBN, ISSN, China post, etc |
||
| Scanning angle: rotor angel±30°, inclination± 55°, declination ± 60° | ||
| Anti inference: industrial lighting or sun will not make any difference | ||
| Temperature : Working : -20℃-50℃ Storage: -40℃-60℃ | ||
| Working current: 38mA–185mA (max peak) | ||
| Standby current : 30mA | ||
| Working time : 3 to 7days | ||
| Charging power: 5V | ||
| Material : ABS+PC | ||
| Drop test : 1.8m | ||
| Certificate : CE, FCC, RoHS, IP54 | ||
Product Pictures:
