1D Bar Code Reader 2500 Points 3mil Precision Handheld USB Wired CCD Barcode Scanner
Product Description:
IBC-720L CCD barcode scanner is good performance on reading 1D bar codes. Durable, Drop-Resistant & Ergonomic. Made to last day in and day out with high quality ABS plastic for shock-proof ruggedness. This CCD USB barcode scanner equipped with power 32 bit CPU and advanced decoding algorithm which deliver excellent decoding performance, it can read 3mil small tiny barcodes like laser barcode scanners, and this handheld CCD reader also is better at reading scratched, distorted, poor printed barcodes than laser scanners. It is widely used in retail stores, supermarket, library, hospital, pharmacy and other industries.
Product Features:
• 2500 pixels CCD image sensor
• Excellent Decoding Ability for 1D bar codes
• Reading resolution 3mil
• Great decoding accuracy
Product Specification:
| Technical Parameter | |
| Model | IBC-750 |
| Item | Handheld CCD 1D Wired Barcode Scanner |
| Physical Parameter | |
| Type | Handheld Wired Barcode Scanner |
| Material | ABS+TPE+PC |
| Size | Length*Width*Thickness: 165*95*70mm |
| Color | White / Black |
| Power Supply | DC 5V ±5% |
| Weight | 115g (Without the cable) |
| Performance Parameter | |
| Interface | USB, RS232 |
| Sensor | Linear CCD sensor |
| Light Source | 632nm red diode(LED) |
| Professor | 32-bit ARM Cortex-M3 MCU |
| Decoding capability | Codabar, Code 11, Code 93, MSI, Code128, UCC/EAN-128, Code 39, EAN-8, EAN-13, UPC-A, Industrial 25, Standard 25, 2/5 Matrix |
| Resolution | 4mil (0.1mm) PCS45% |
| Depth Of Field | 500mm@20mil/0.5mm, PCS90% |
| Scanning Speed | 300scans/sec |
| Scanning Mode | Manual, Continuous scanning |
| Scanning Width | 5cm-30cm |
| Prompt Mode | Buzzer, Indicator light(LED) |
| Print Contrast | 30% |
| Scanning Angel | Roll35°, Pitch65°, Yaw65° |
| Environment Parameter | |
| Operating Temp. | 0 to 50 ºC / 32 to 122 ºF |
| Storage Temp. | -20 to 70 ºC / -4 to 158 ºF |
| Operating Humidity | 20 – 95% (No condensing) |
| Storage Humidity | 20 – 95% (No condensing) |
| IP Grade | ≥IP54 |
| ESD protection | 15kv |
| Shock Resistance | Withstands multiple times 1.5m drops to concrete |

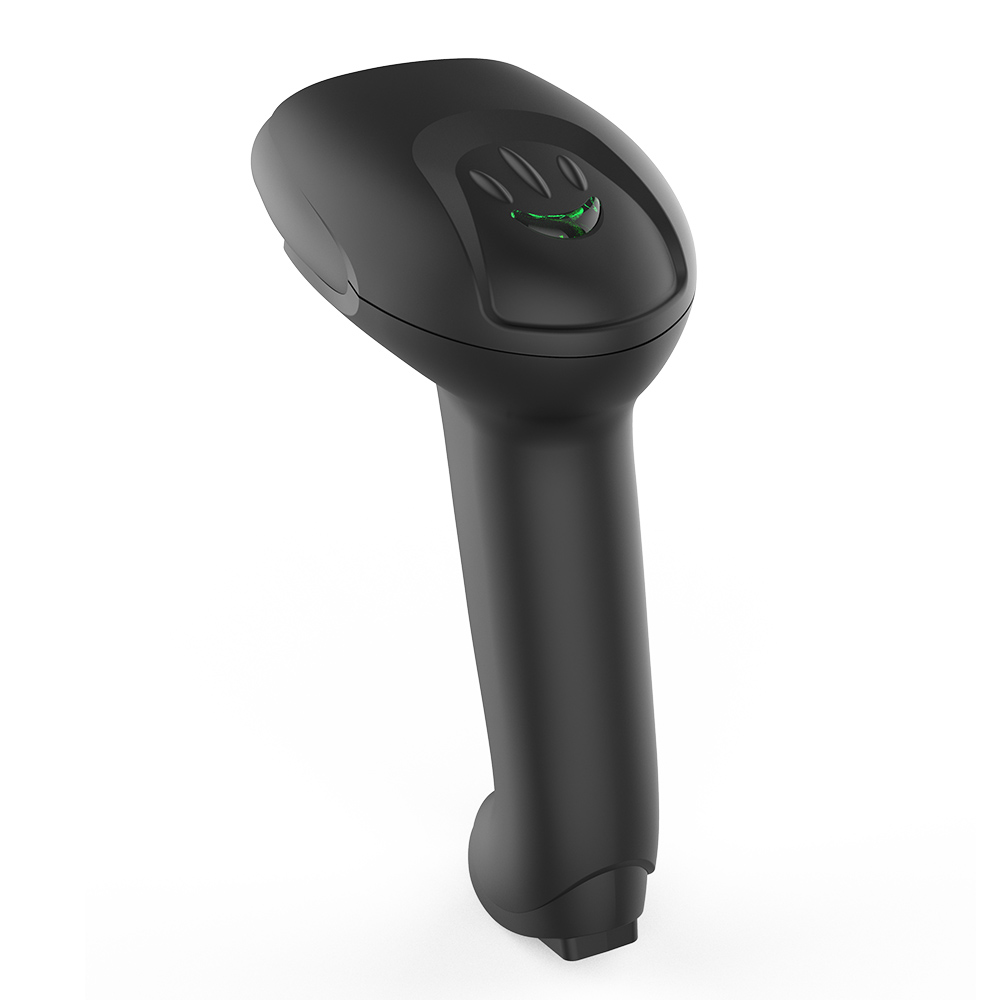

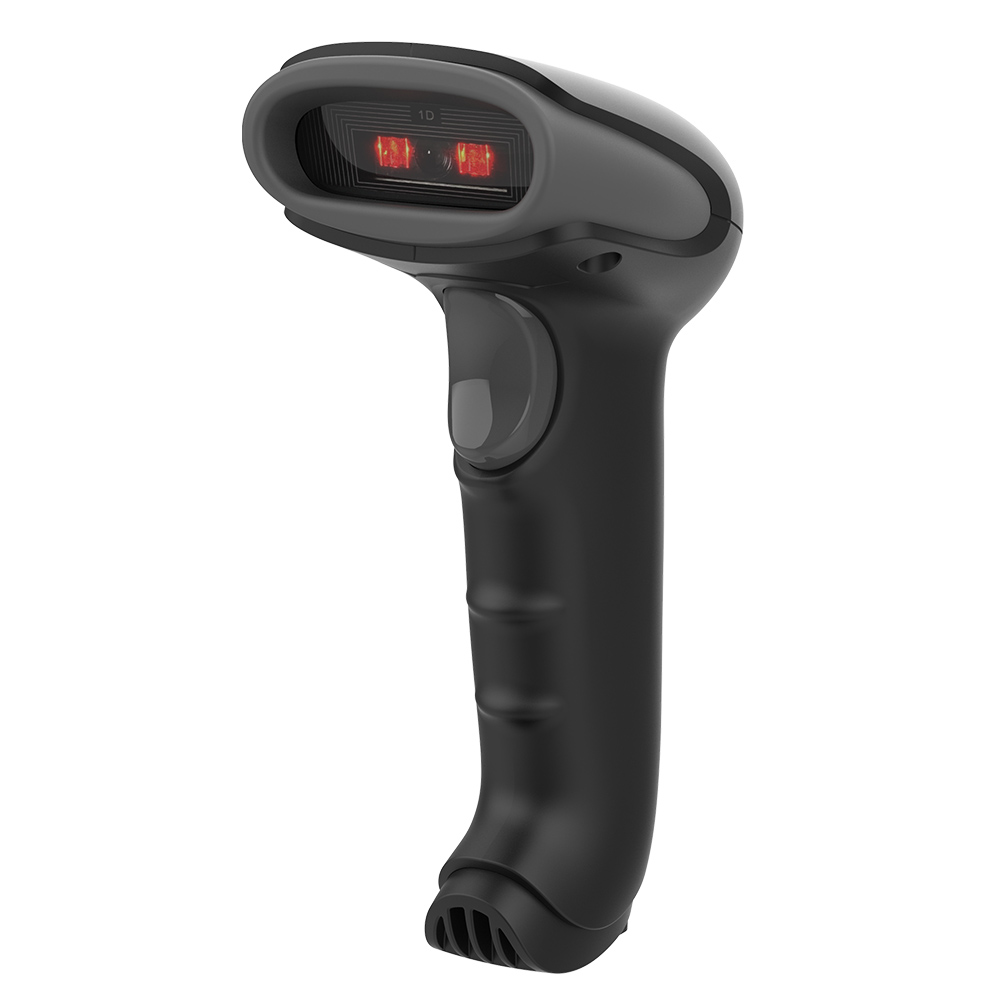

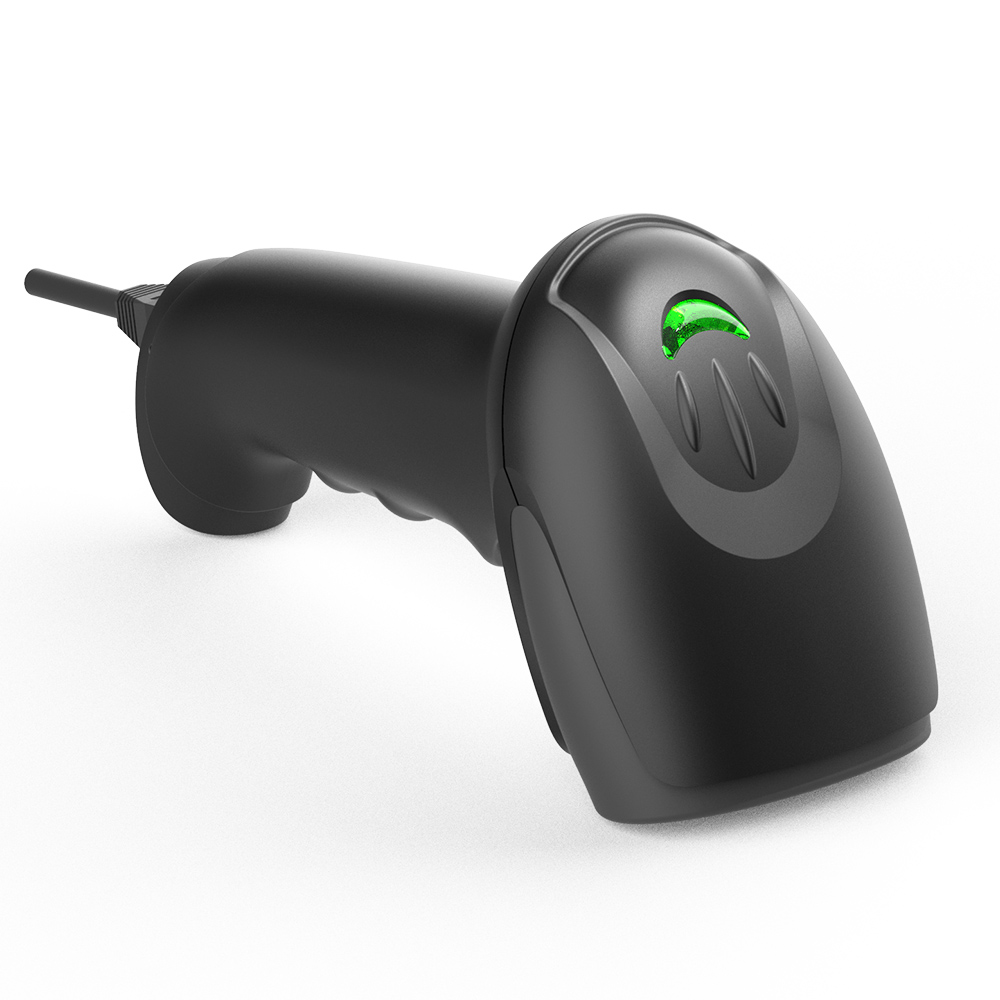

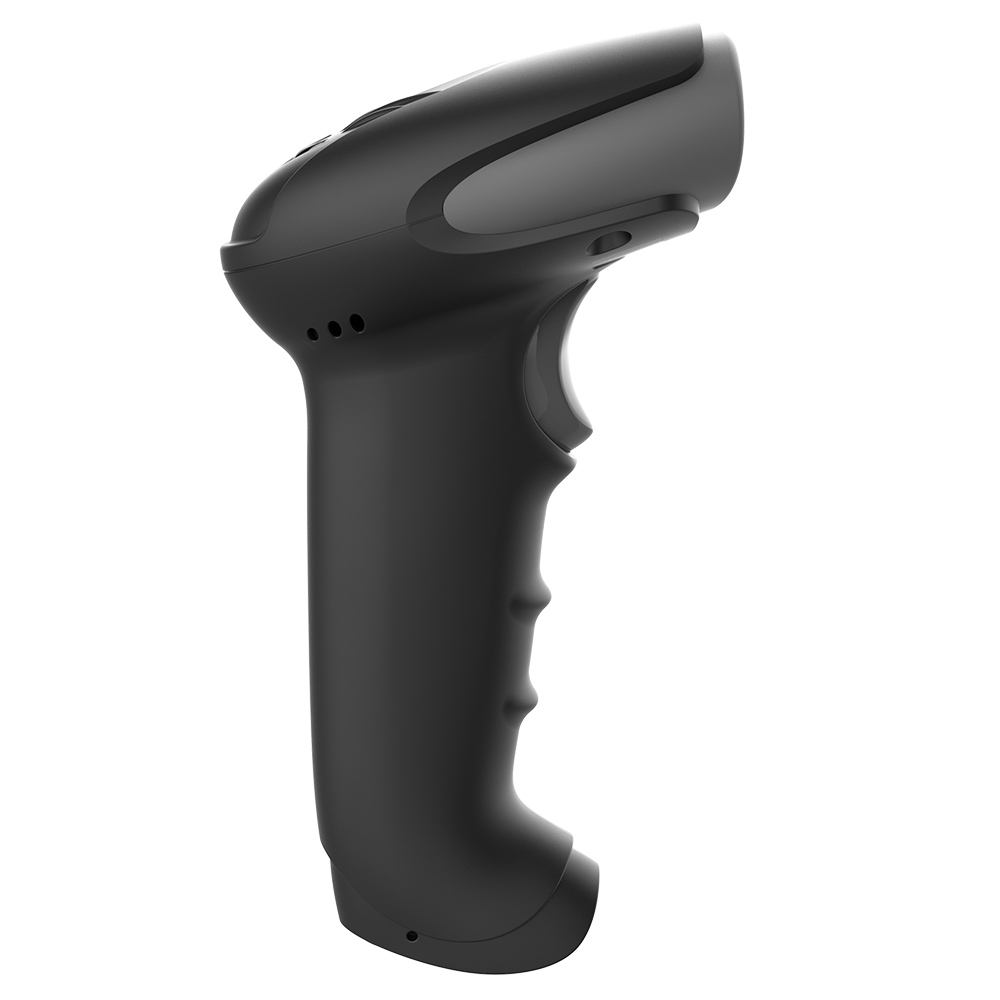

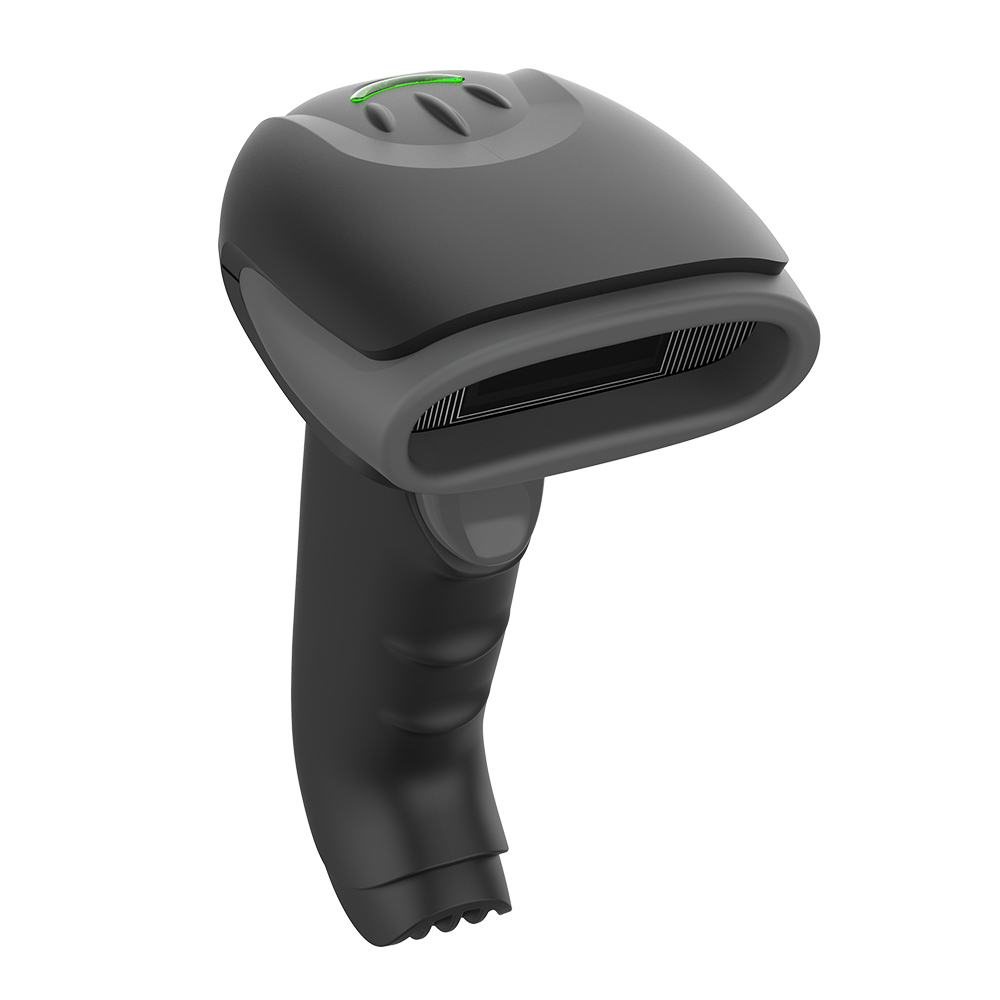

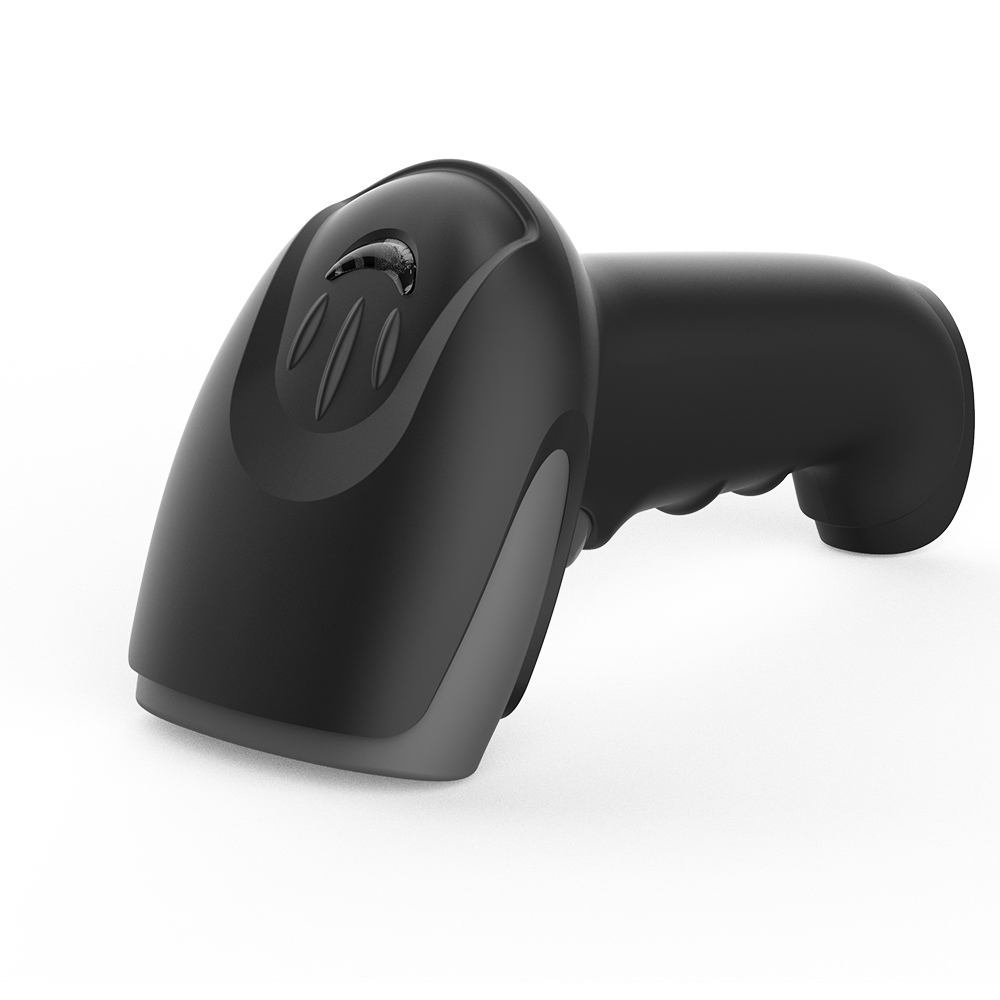

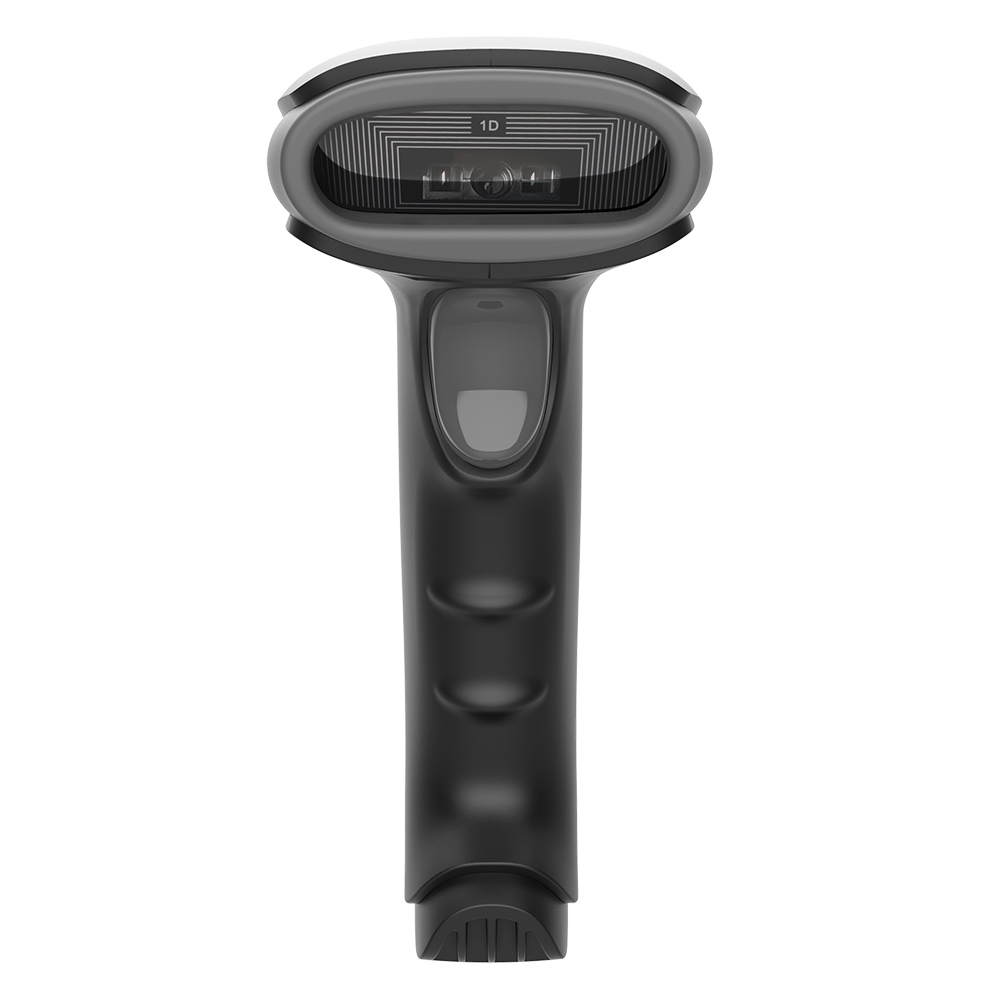

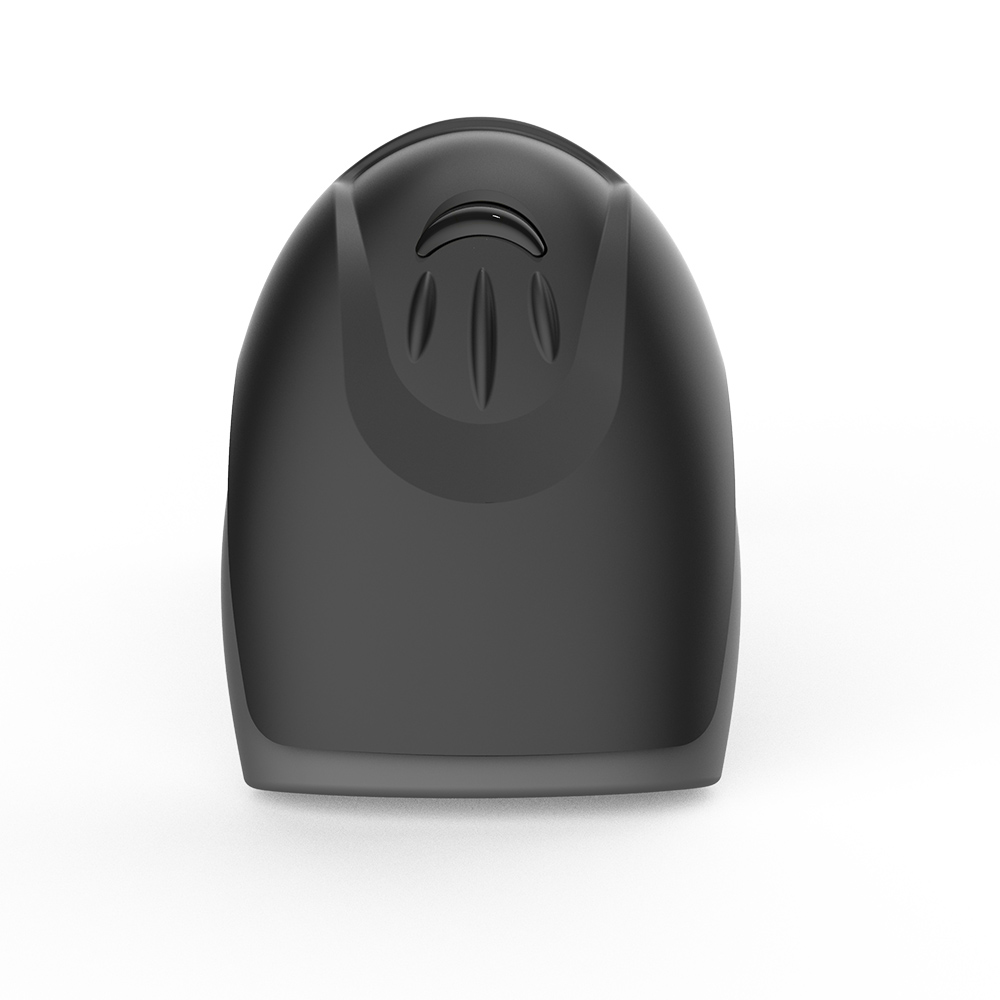

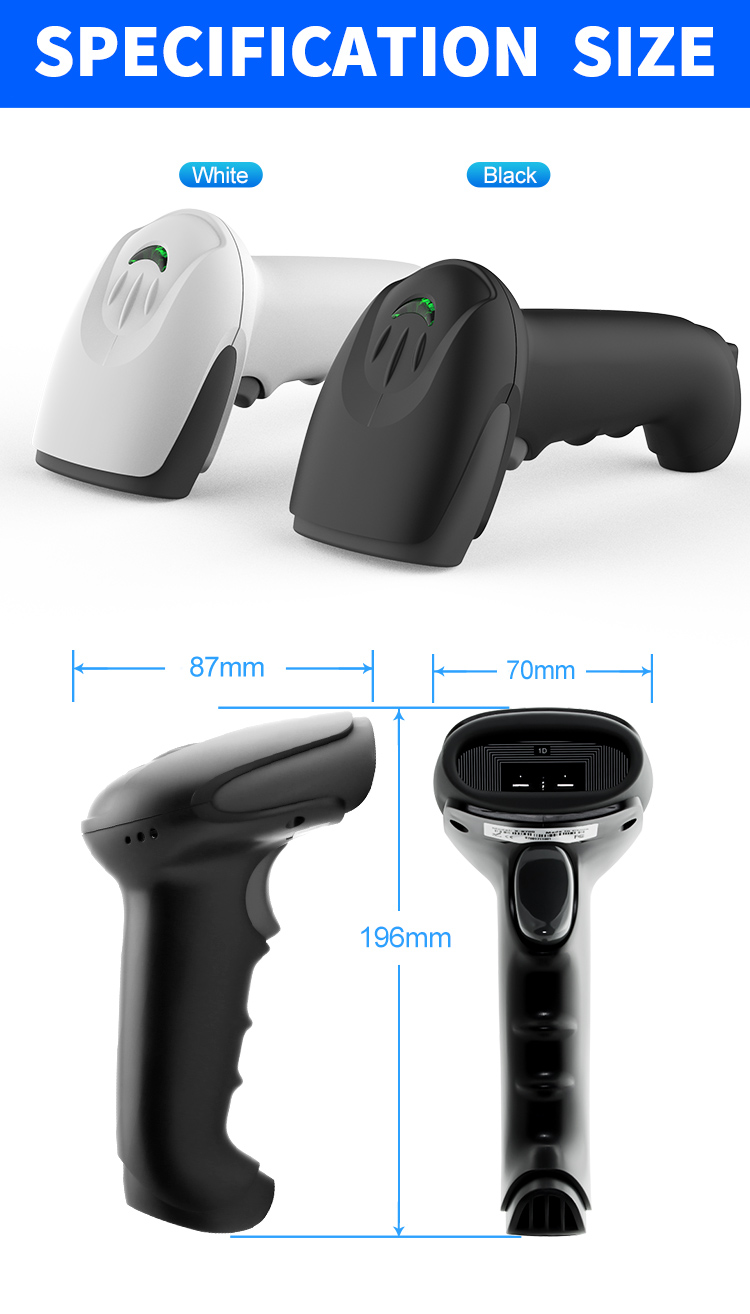

Product Pictures:
