1D 2D USB Wired Wireless Bluetooth Handheld Barcode Scanner QR Code Reader For POS Machine
1D 2D USB Wired Wireless Bluetooth Handheld Barcode Scanner QR Code Reader For POS Machine
- Most Competitive Price
We can custom logo ,label,box,etc as your requirements totally,just contact me for accurate price!
- Customized solutions
- Precision manufacturing.
- Affordable excellence, guaranteed.
- Quality products, worldwide delivery.
*Get A Free Quote With No Obligation
- One-Stop Services,Contact Us For Free Samples
- We Provide Global Delivery By Air/Sea/Train Shipping From Door To Door Or To Designated Port.
- 20+ Years Experienced Team To Offer Suitable Packaging Proposal
1D 2D USB Wired Wireless Bluetooth Handheld Barcode Scanner QR Code Reader For POS Machine
Product Test Video:
Product Description:

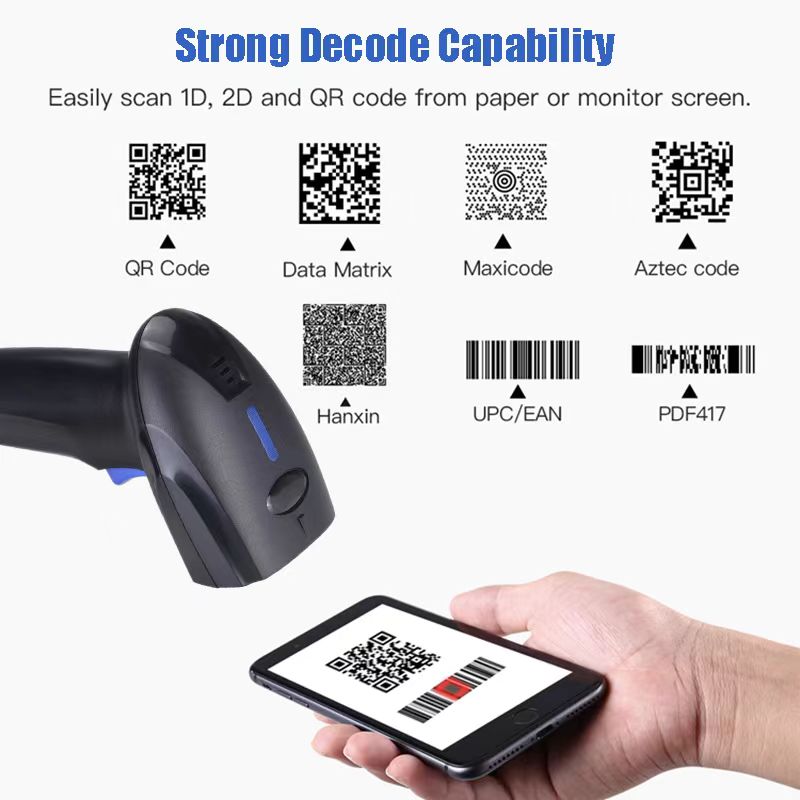

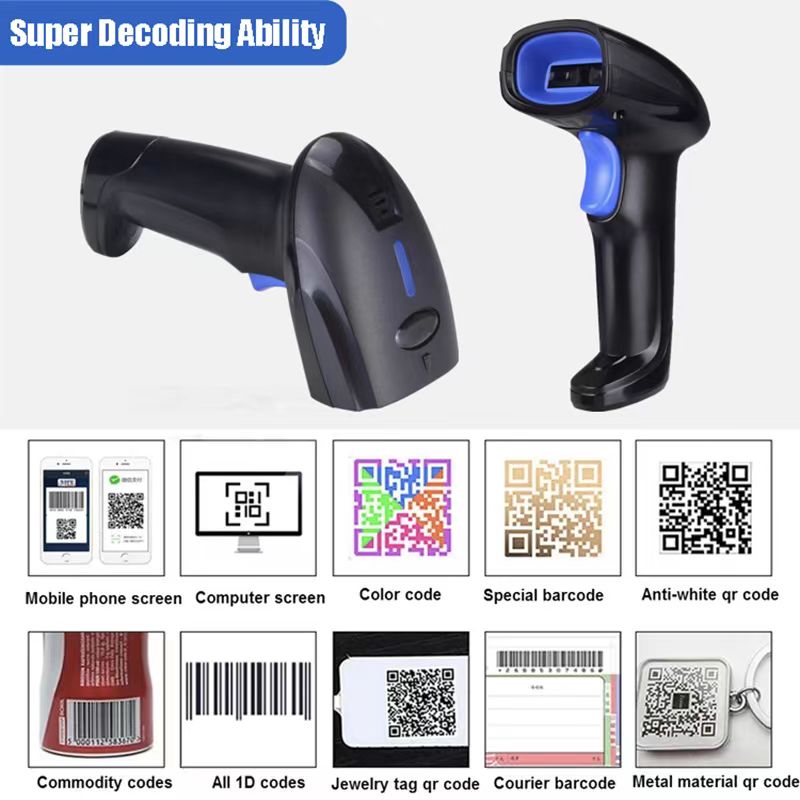

IBC-1100 series CMOS barcode scanner is good performance on reading 1D and 2D barcodes. With super scanning and decoding ability, it can read incomplete and fuzzy codes. With Excellent Error-Correcting Performance, it can scan the decodes for damaged lncomplete Barcode, fuzzy barcode, twsited wrinkled barcode, reflective barcode, colorful and long barcode etc. It supports the multinational language keyboard. It is widely used in Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.
Product Features:
1D 2D Wired Handheld Barcode Scanner IBC-1100:
* Factory direct sale, Low price high performance.
* No driver needed, plug and play.
* Support reading bar codes from screen.
* Applying CMOS image technology, easy to scan.
* Powerful decode ability, fast scanning 1D/2D barcodes.
* Support the multinational language keyboard.
* Supports Handheld / Continuous / Auto-Induction , 3 modes for option.
* Dopt a highly integrated design, high quality shell, have IP45 protection grade.
* Support connection with computer, laptop. Compatible Operating System for Linux, Windows XP,7,8, 10.
1D 2D Wireless Handheld Barcode Scanner IBC-1100R:
* Factory direct sale, Low price high performance.
* With mini USB receiver, plug and play.
* Support reading bar codes from screen.
* Powerful decode ability, fast scanning 1D/2D barcodes.
* Large capacity battery,1800MAH Li-ion battery.
* 2.4GHz wireless and USB wired connection,2modes for option.
* Supports Handheld / Continuous / Auto-Induction , 3modes for option.
* 2.4G Wireless communication distance outdoor 100m,indoor 80m.
* Support connection with computer, laptop. Compatible Operating System for Linux, Windows XP,7,8, 10.
1D 2D Wireless Bluetooth Handheld Barcode Scanner IBC-1100RB:
* Bluetooth/2.4G/Wired Mode, 3modes for option.
* Support reading bar codes from screen.
* 32-Bit ARM processor and scan speed 500scans/sec.
* Powerful decode ability, fast scanning 1D/2D barcodes.”
* Supports Handheld / Continuous / Auto-Induction , 3modes for option
* Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.
* Built-in 1800mAh Battery, it can support 20 hours Continuous scanning and 2 months
standby after 4 hours full charge.
* Support turn on or off the sound, hide/add custom prefix/suffix digits, delete character, add keyboard keys (TAB, CR&LF, etc.)
Product Specification:
| Parameters: | ||
| Product name | 1D 2D Wired Handheld Barcode Scanner | |
| Model | IBC-1100 | |
| CPU: ARM 32-bit Cortex | Sensor: CMOS 640*480 | |
| Resolution : 4mil | Light aimer: 624nm LED | |
| Printing Contract : ≥25% | Material: ABS+PC | |
| Indication: Buzzer & LED | Interface: USB / RS232 / TTL / KBW | |
| Decoding speed: 500scans/sec | Anti inference: 0- 100000Lux Max | |
| Button life : 5000, 000 times | Voltage: 5V DC | |
| Depth of Field | 13mil-EAN13 | 40-250mm |
| 4mil-code39 | 50-90mm | |
| 20mil-QR | 40-290mm | |
| 10mil-PDF417 | 40-260mm | |
| Decode Capability: 1D: UPC-A, UPC-E, EAN-8, EAN- 13, Code 128 , Code 39, Code 93, Code 11, Interleaved 2 of 5 , Matrix 2 of 5 , Standard 2 of 5 , Coda bar , MSI Plessey , RSS , Codabar , ISBN, ISSN , GS1 DataBar(RSS14) etc. 2D: QR Code, Data Matrix , PDF417 , Aztec code , Maxicode , etc. |
||
| Trigger Mode: Handheld, Continuous, Auto-Induction | ||
| Scanning angle: Angle of rotation360° , inclination± 65° , declination ± 60° | ||
| Current: 80mA(working current), 30mA(standby current ) | ||
| Temperature: -20℃-50℃(Working) -40℃-60℃(Storage) | ||
| Drop test : 2m | ||
| Operating Humidity: 5 – 95% (non-condensing) | ||
| Parameters: | ||
| Product name | 1D 2D Wireless Handheld Barcode Scanner | |
| Model | IBC-1100R | |
| Transmission mode: 2.4G wireless/wired | Storage: 10000 barcodes | |
| Distance: 100m/1.5m | CPU: ARM 32-bit Cortex | |
| Sensor: 640*480 CMOS | Interface: USB , USB-COM | |
| Resolution : 4mil | Light aimer: 617nm LED | |
| Battery: 1800mAh | Indication: Buzzer & LED | |
| Decoding speed: 500scans/sec | Illumination: 6500K LEDs | |
| Button life : 5000, 000 times | Printing contract : ≥25% | |
| 250Lux Depth of Field |
13mil-EAN13 | 50-240mm |
| 4mil-code39 | 50-90mm | |
| 20mil-QR | 40-280mm | |
| 10mil-PDF417 | 40-250mm | |
| Decode Capability: 1D: UPC-A, UPC-E, EAN-8, EAN- 13, Code 128 , Code 39, Code 93, Code 11, Interleaved 2 of 5 , Matrix 2 of 5 , Standard 2 of 5, Coda bar , MSI Plessey, RSS , etc. 2D: QR Code, Data Matrix, PDF417 , Aztec code, Maxicode , etc. |
||
| Trigger Mode : Handheld, Continuous, Auto-Induction | ||
| Scanning angle: Angle of rotation360° , inclination± 65° , declination ± 60° | ||
| Working Temperature: -20℃-50℃ | Storage Temperature: -40℃-60℃ | |
| Working current: 38mA– 185mA(max peak) | Standby current : 30mA | |
| Working time : 3 to 7days | Charging power: 5V | |
| Anti inference: 0- 100000Lux Max | Relative Humidity: 0 ~ 95% | |
| Certificate : CE , FCC , RoHS , IP54 | Drop test : 2m | |
| Parameters: | ||
| Product name | 1D 2D Wireless Bluetooth Handheld Barcode Scanner | |
| Model | IBC-1100RB | |
| Transmission mode : Bluetooth/2.4G/Wired | Storage: 10000 barcodes | |
| Distance: 50m/ 100m/ 1.5m | CPU: ARM 32-bit Cortex | |
| Sensor: 640*480 CMOS | Light aimer: 617nm LED | |
| Resolution : 4mil | Indication: Buzzer & LED | |
| Battery: 1800mAh | Illumination: 6500K LEDs | |
| Decoding speed: 500scans/sec | Bit error rate : 1/5million | |
| Button life : 5000, 000 times | Printing contract : ≥25% | |
| 250Lux Depth of Field |
13mil-EAN13 | 50-240mm |
| 4mil-code39 | 50-90mm | |
| 20mil-QR | 40-280mm | |
| 10mil-PDF417 | 40-250mm | |
| Decode Capability: 1D: UPC-A, UPC-E, EAN-8, EAN- 13, Code 128 , Code 39, Code 93, Code 11, Interleaved 2 of 5 , Matrix 2 of 5 , Standard 2 of 5, Coda bar , MSI Plessey, RSS , etc. 2D: QR Code, Data Matrix, PDF417 , Aztec code, Maxicode , etc. |
||
| Trigger Mode : Handheld, Continuous, Auto-Induction | ||
| Scanning angle: Angle of rotation360° , inclination± 65° , declination ± 60° | ||
| Working Temperature: -20℃-50℃ | Storage Temperature: -40℃-60℃ | |
| Working current: 38mA– 185mA(max peak) | Standby current : 30mA | |
| Working time : 3 to 7days | Charging power: 5V | |
| Anti inference: 0- 100000Lux Max | Relative Humidity: 0 ~ 95% | |
| Certificate : CE , FCC , RoHS , IP54 | Drop test : 2m | |
Product Pictures:
