1D 2D USB Handheld Barcode Scanner QR Code Reader Barcode Scanning Gun
Product Testing Video:
Product Description:
IBC-1500L CMOS barcode scanner is good performance on reading 1D and 2D barcodes. With Excellent Error-Correcting Performance, it can scan the decodes for damaged lncomplete Barcode, fuzzy barcode, twsited wrinkled barcode, reflective barcode, colorful and long barcode etc. It is widely used in retail stores, supermarket, library, hospital, pharmacy and other industries.
Product Features:
• Good ergonomic design
• Excellent Decoding Ability, Support All 1D/2D Bar Code
• Support Wechat, Alipay and other payment barcodes
• Plug and play, easy to set up, and quick to scan
Product Specification:
Parameters Sheet | ||
Model No. | IBC-1500L | |
Product Name | 2D Wired Barcode Scanner | |
Physical Parameters | ||
Material | ABS+PC+TPE | |
Power Supply | DC 5V ±5% | |
Power Consumption | 0.85W(Working); 0.55W(Standby); 1.05W(Maximum) | |
Current | 168mA(Working); 109mA(Standby); 200mA(Maximum) | |
Weight | 108g±5g (including cable) | |

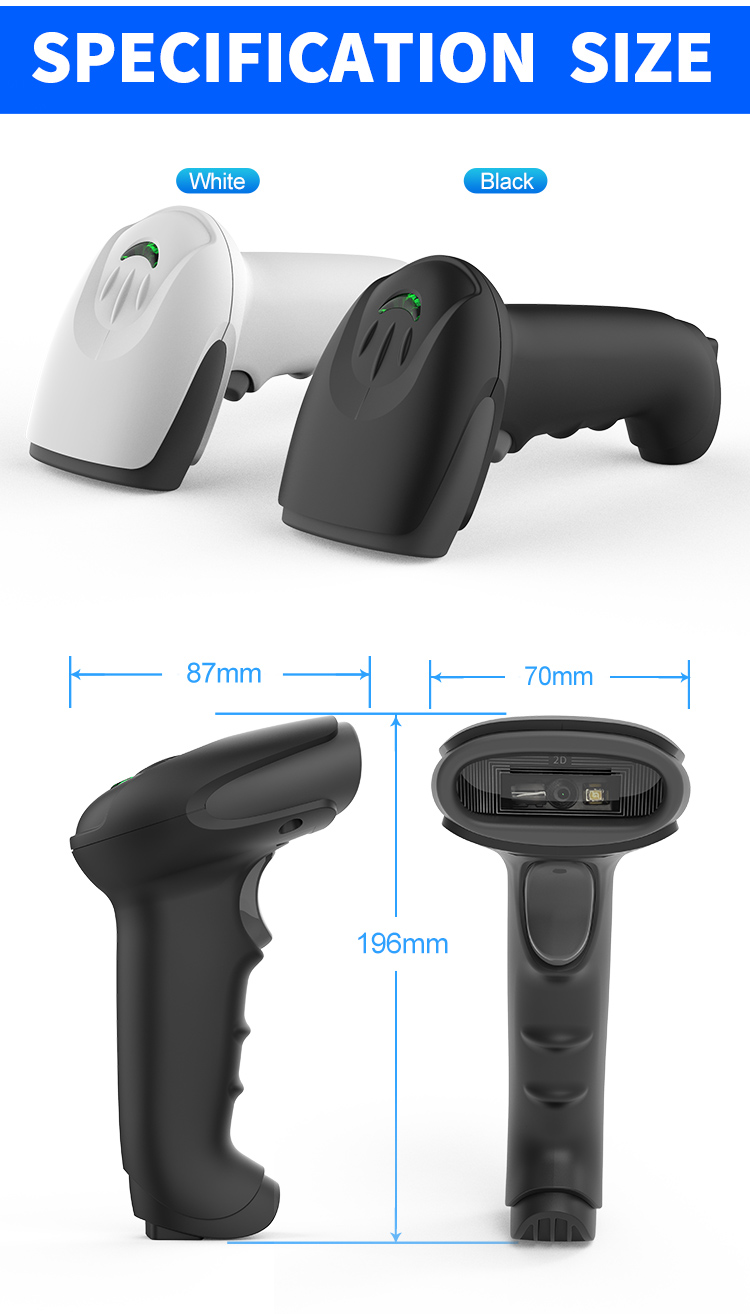

Size | L*W*H: 170 * 70 * 88 (unit:mm) | |
Color | Black or Grey White | |
Button Lifetime | >200000 | |
Performance Parameters | ||
Interface | USB; (RS232 optional) | |

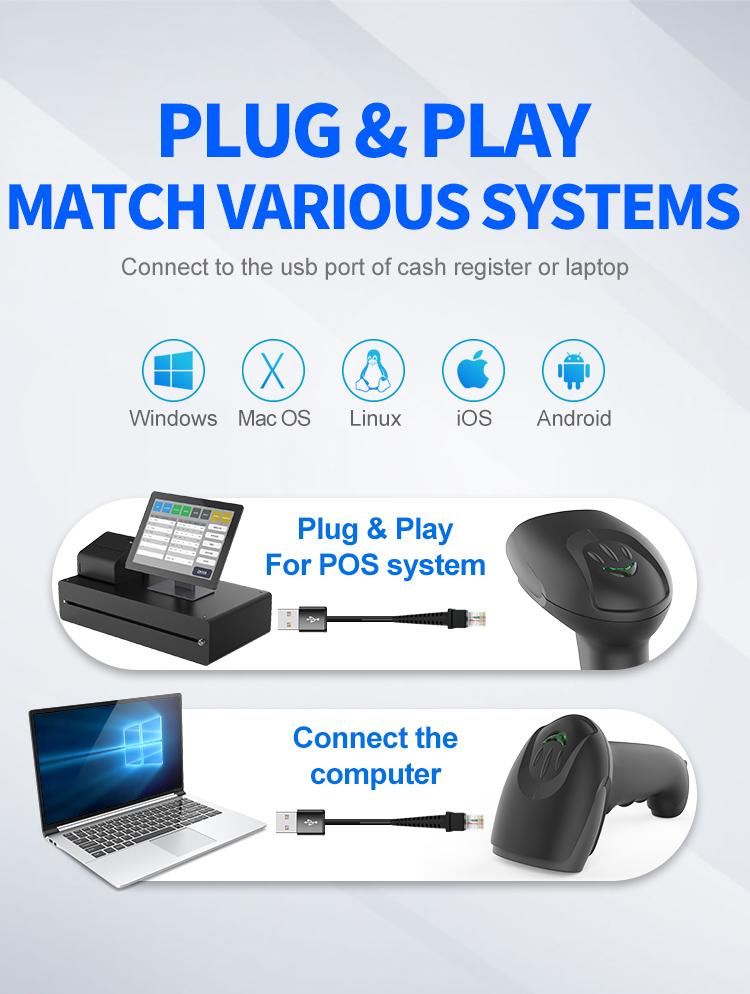

OS | Linux, Android, Windows XP、7、8、10, MAC | |
Keyboard Language | American; French; German; Hungary; Italian; Spanish; (Virtual Keyboard is supported) | |
Light Source | Red LED (Aiming) + White LED (lighting) | |
Resolution | ≥5mil | |
Error Rate | 1/500M | |
Motion tolerance | code 128: 20cm/sec; QR: 25cm/sec | |
Sensor Pixel | 640×480 CMOS sensor | |
Reading Mode | Image | |
Trigger Mode | Manual Mode,Continuous Scanning Mode | |
Reading Range | 10mm-600mm | |
Prompt Mode | Buzzer, Indicator Light(LED) | |
Print Contrast | 30% | |
Reading Angle | Roll360°, Pitch45°, Yew45° | |
Decoding Capacility | 1D | ● Code25-Interleaved ● Code25-Standard ● Code25-Matri ● RSS-14 ● MSI ● UPC-A ● Code39-Regular ● Code39-FullASCII ● Code93-Regular ● Code93-FullASCII ● JAN/EAN-8 ● Code128 ● Code11 ● UPCE0/E1 ● EAN/GSL/UCC-128Auto ● Codabar ● EAN/JAN-13 |
2D | ● Data Matrix ● QR ● PDF417 ● Micro QR ●HanXin ● Micro PDF 417 ● Maxi Code ●Aztec | |
Scanning Depth | QR 9.17 mil(7 byte):6cm – 10cm Data Matrix 9.17mil(7 byte):7cm – 10cm Code93 5.83mil(14 byte):7cm – 10cm |
|
Environmental Parameters | ||
IP Grade | IP42 | |
Operating Temp. | 0 to 50℃ / 32 to 122℉ | |
Storage Temp. | 0 to 50℃ / 32 to 122℉ | |
Operating Humidity | 20% to 85%(No Condensation) | |
Storage Humidity | 20% to 85%(No Condensation) | |
ESD Protection | 15KV air discharge | |
Shock Resistance | Withstands multiple times 1.2m drops to concrete |

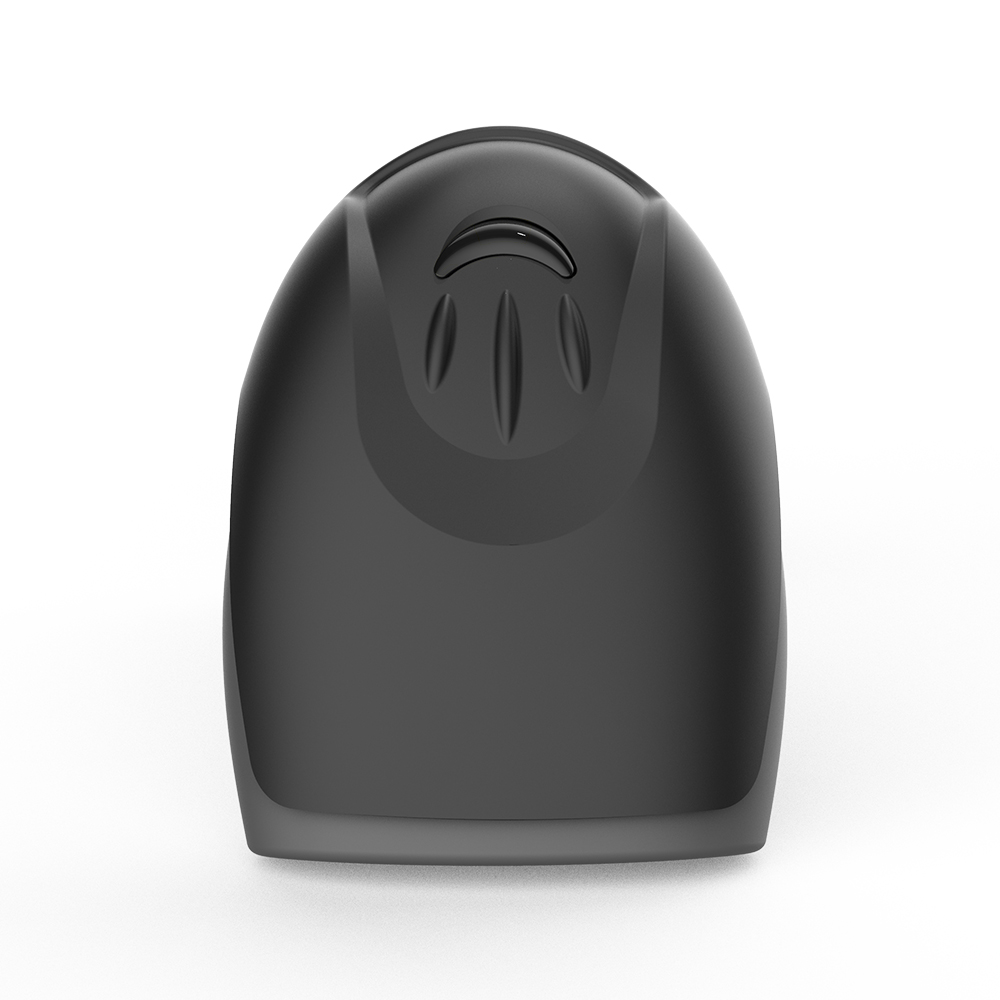

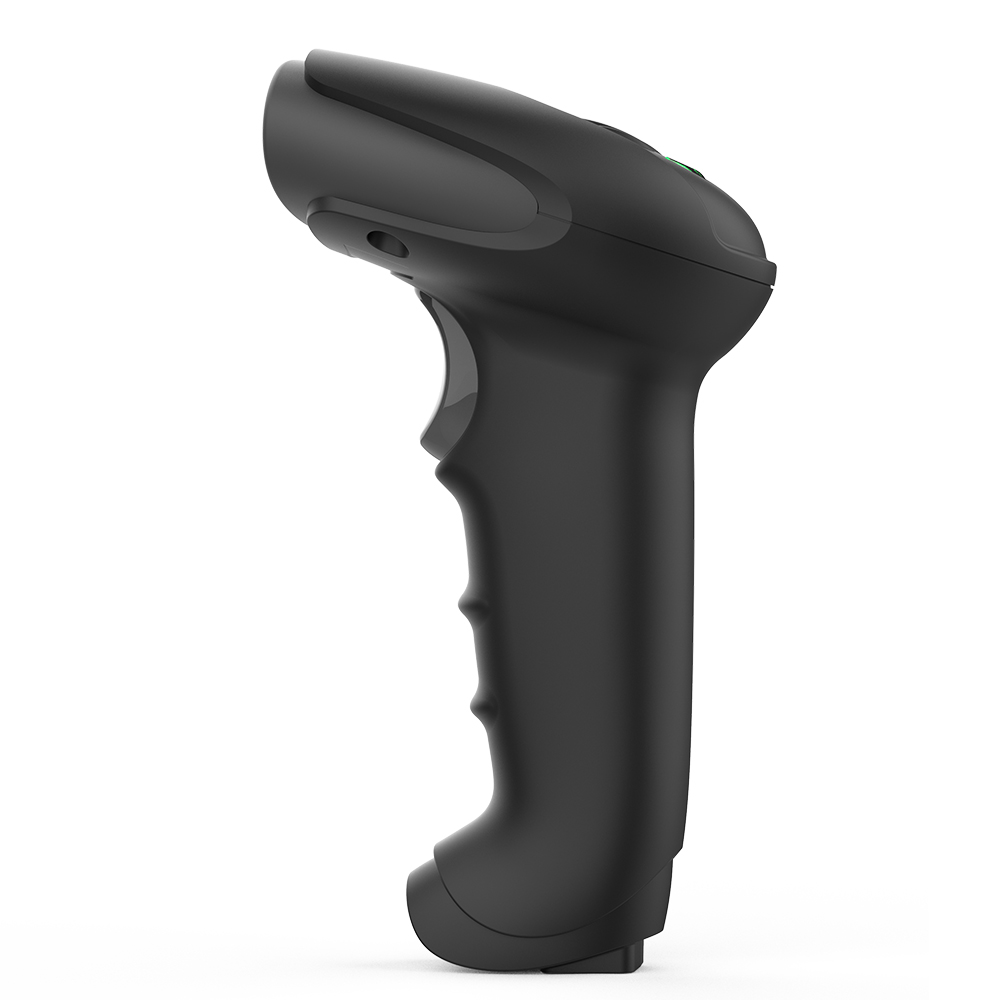

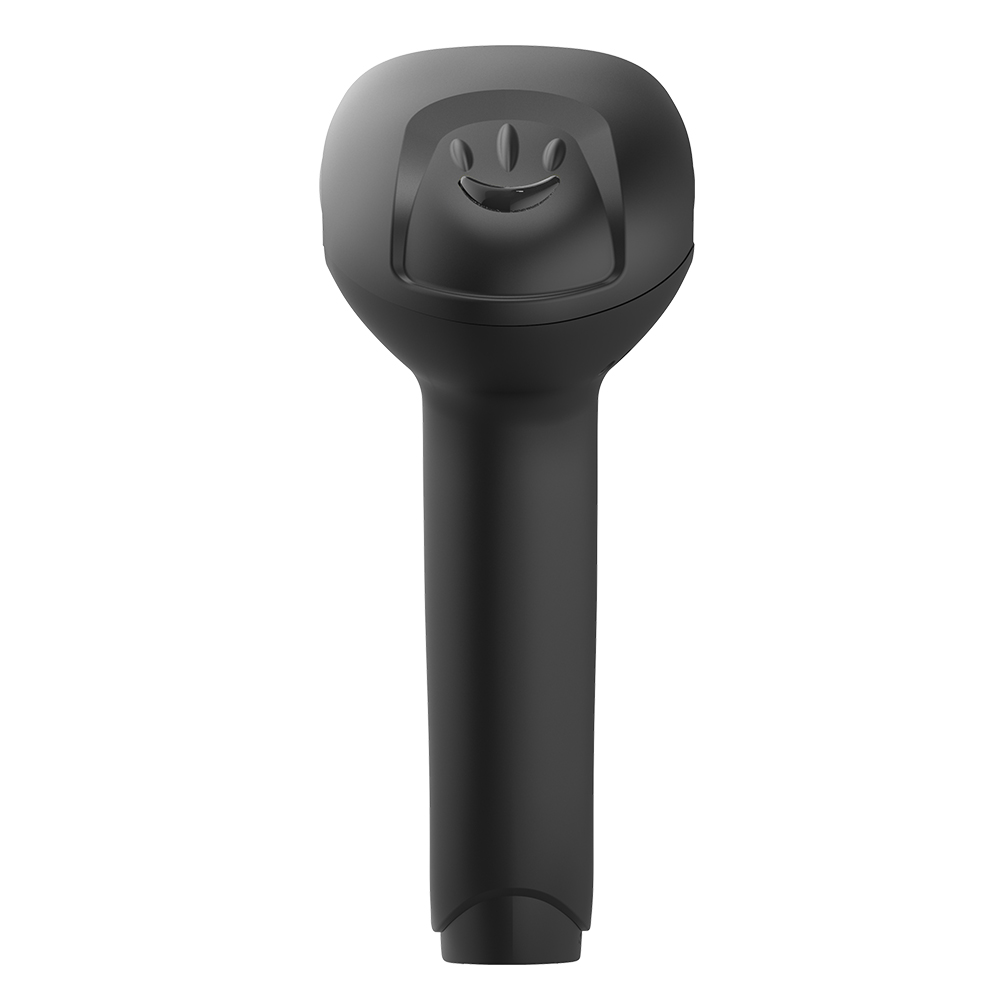

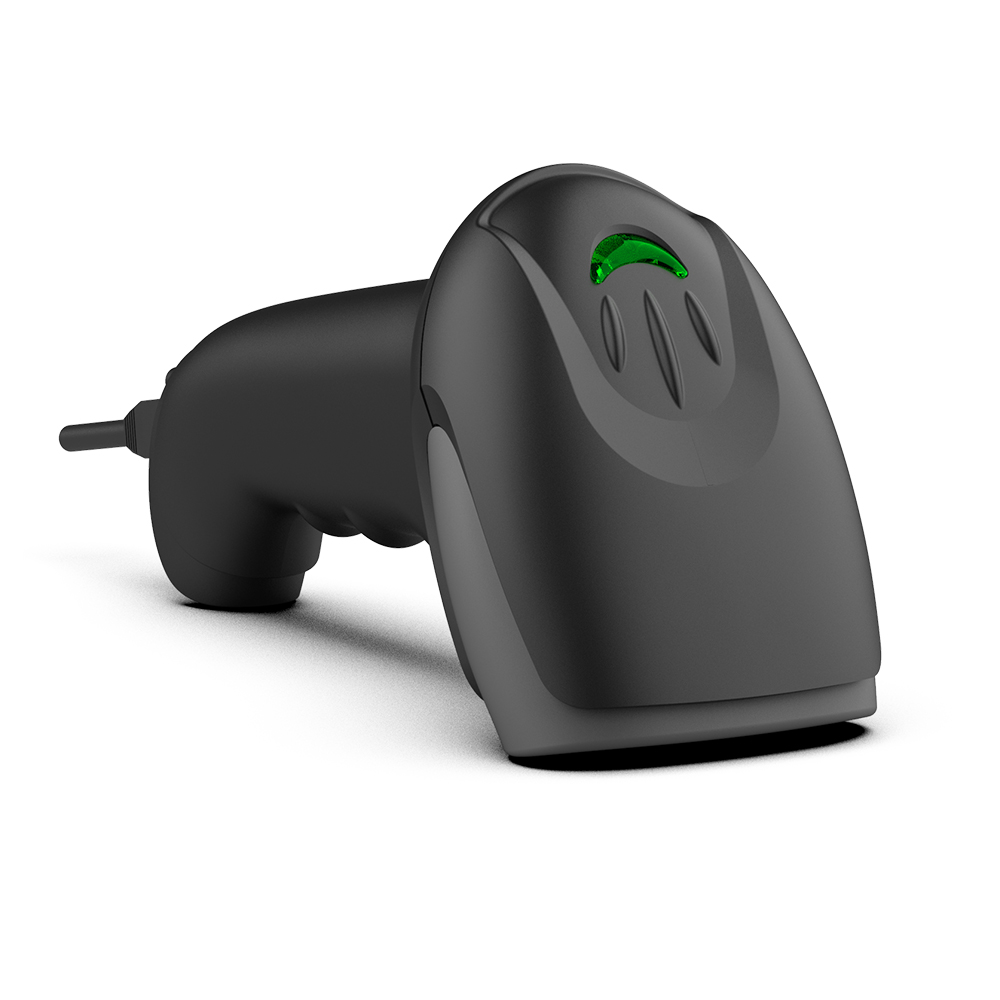

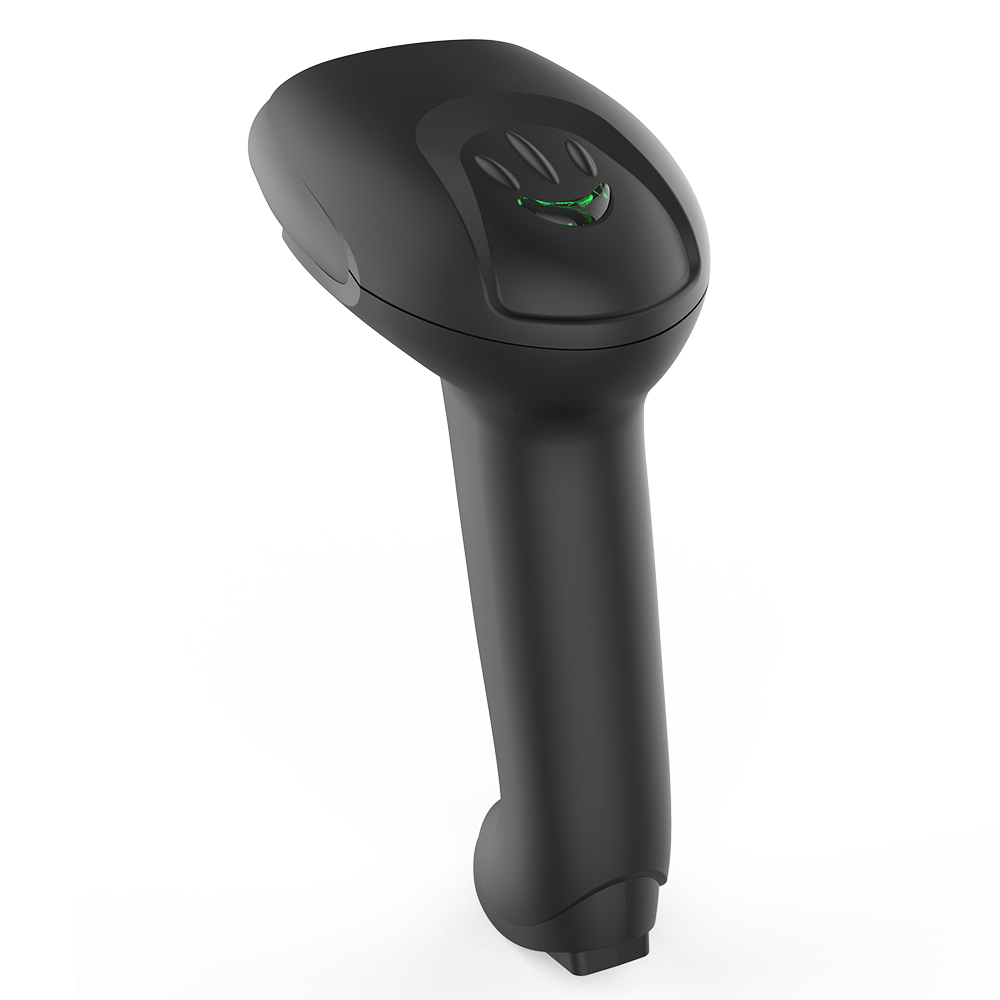

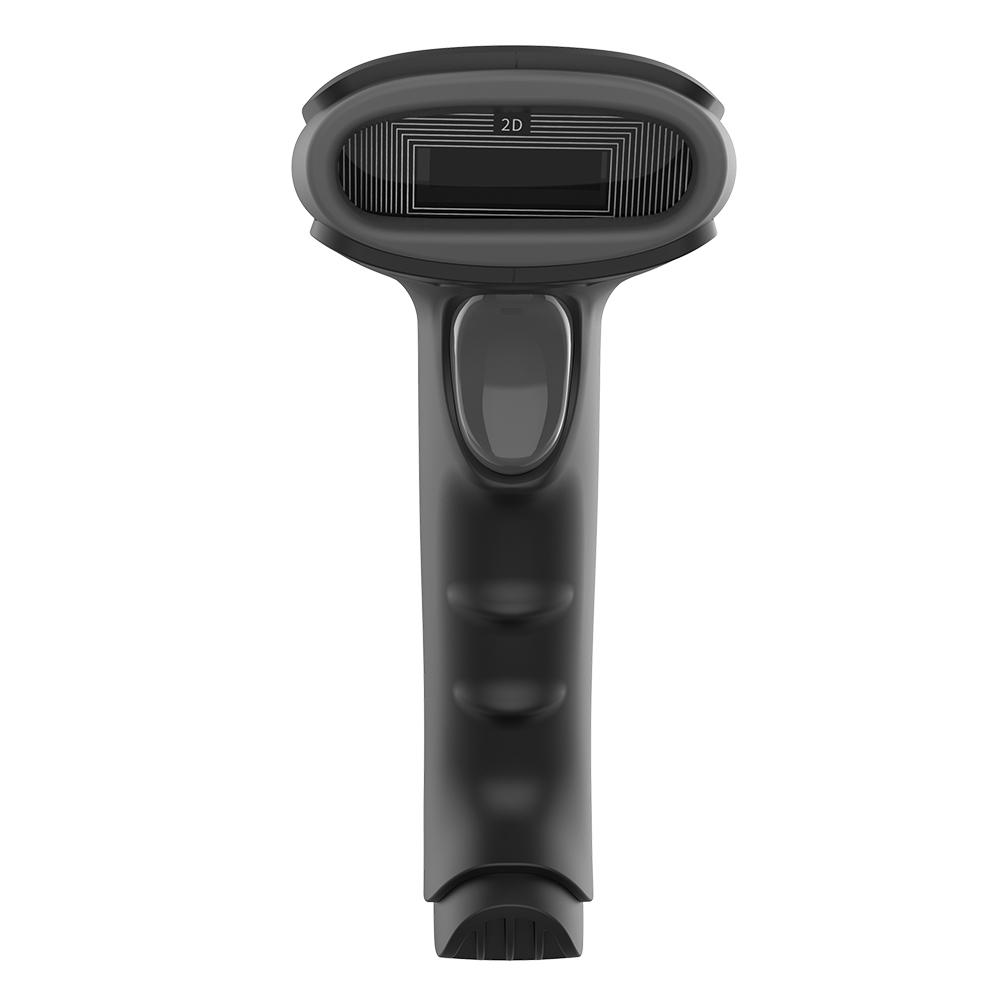

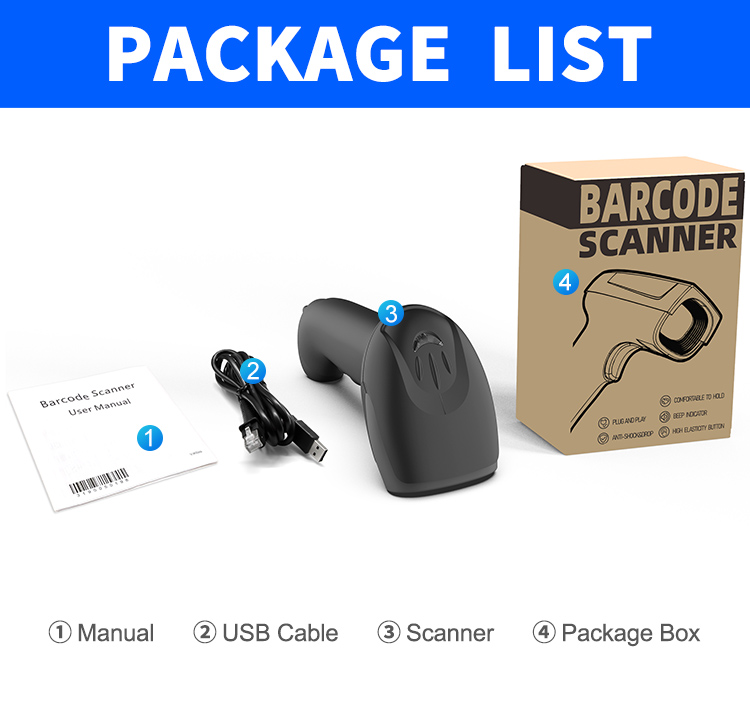

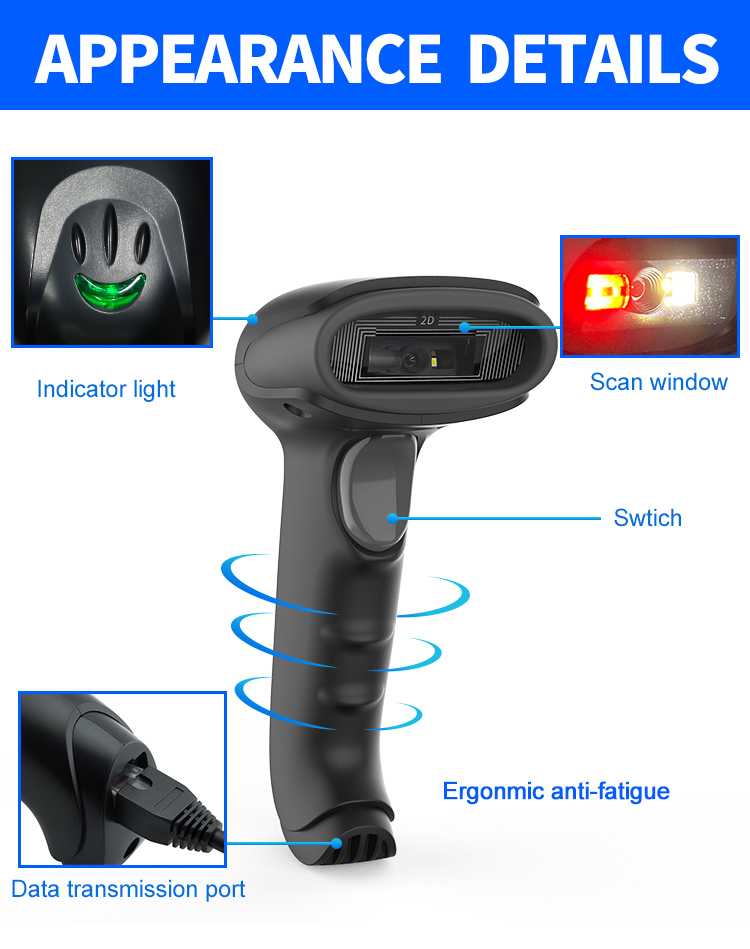

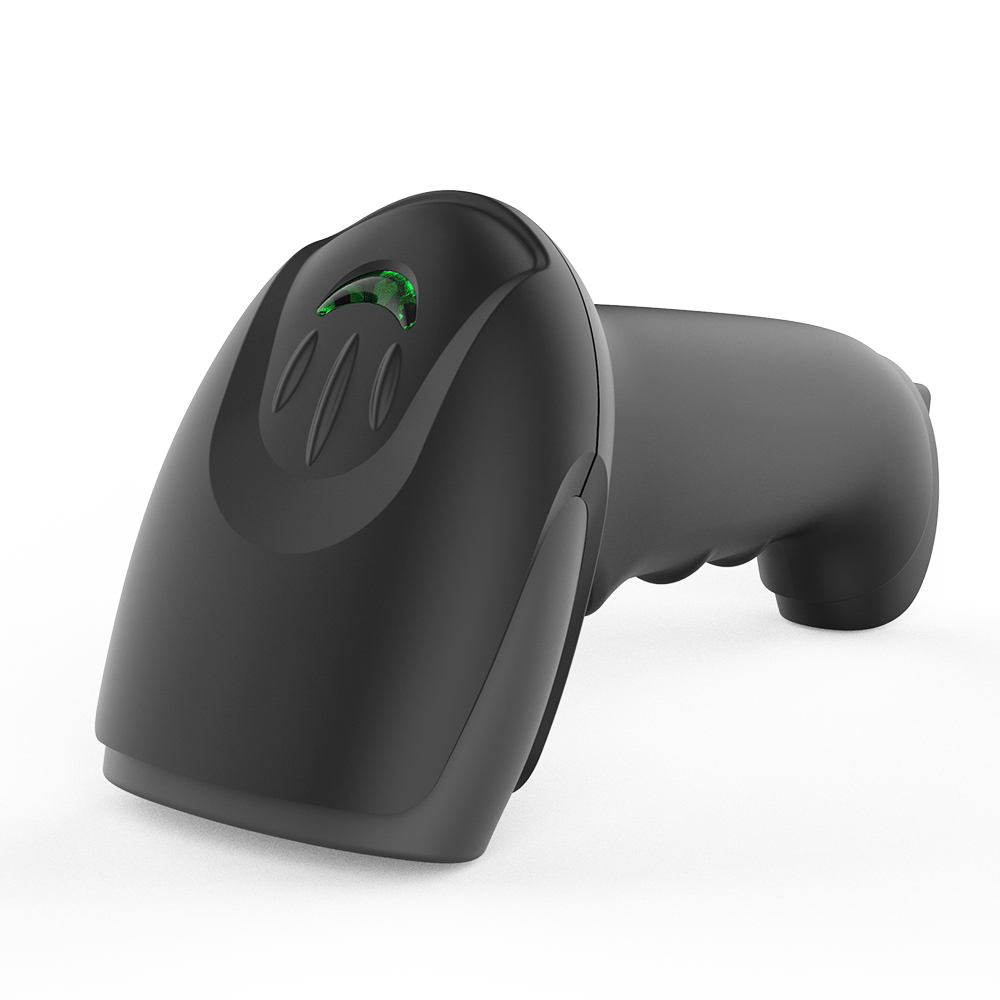

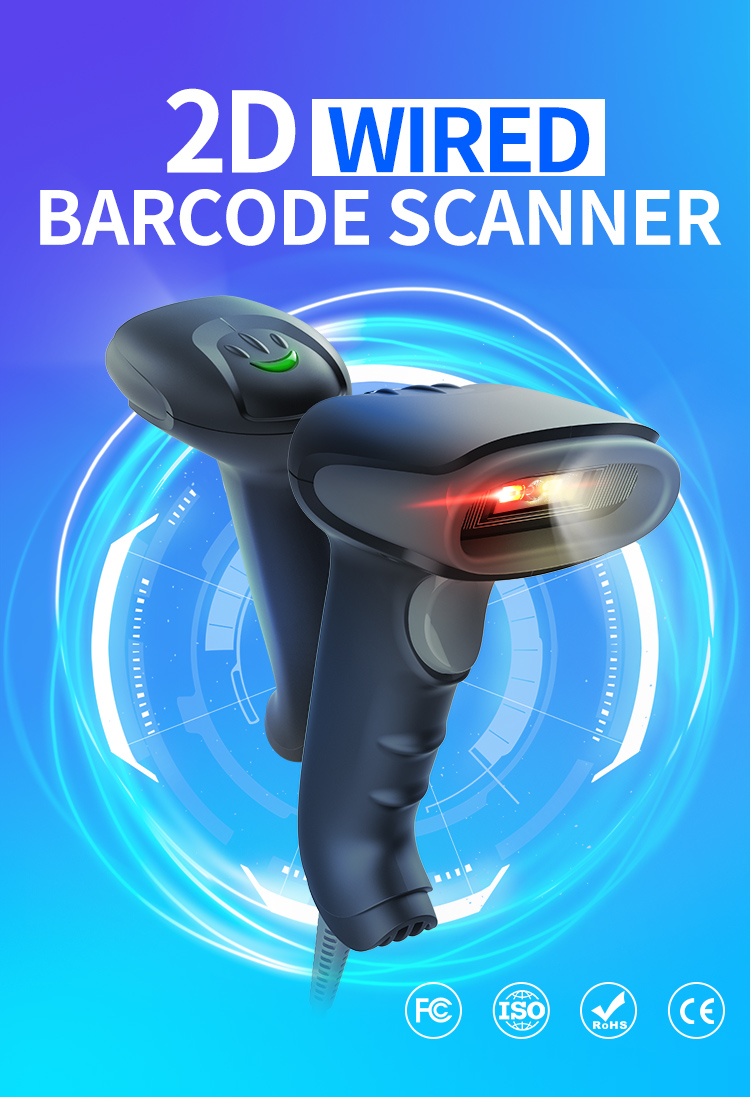

Product Pictures:
