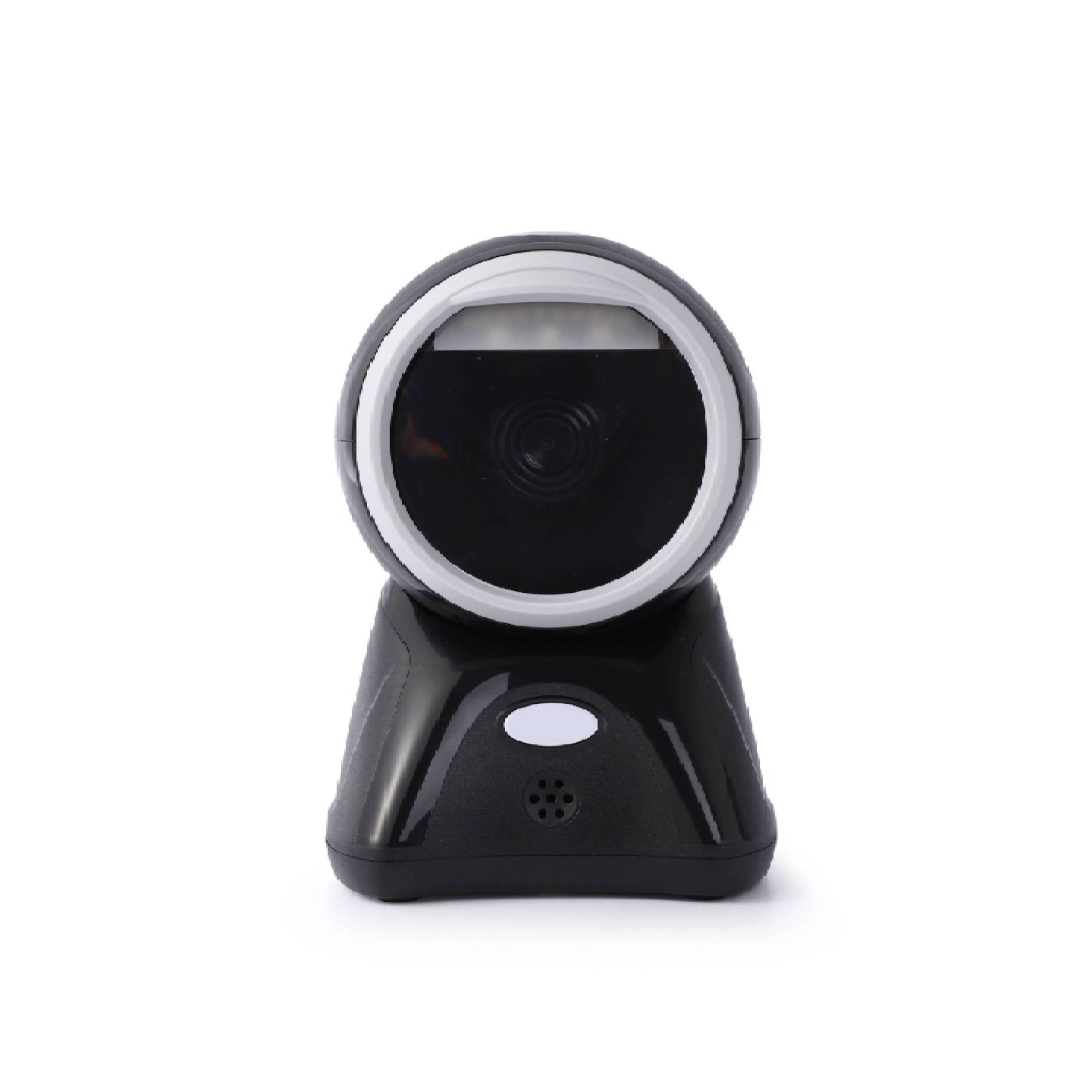

1D 2D Omnidirectional USB Wired Platform QR Code Reader Scanning Desktop Barcode Scanner
Product Description:
IBC-8270 is CMOS desktop barcode scanner. It is strong body with scratch-resistant material. Quickly read various LCD and OLED mobile phone screen codes and printed product codes. Using international advanced image transmission technology, with two-way communication instant error correction feedback, complete a variety of commonly used one-dimensional code and two-dimensional code reading. Supports the reading of paper barcodes, LCD display barcodes, mobile phone screen barcodes, anti-color barcodes, and non-standard barcodes such as print distortion and wrinkle breakage. with Powerful scanning function, it is Excellent at decoding colorful, distorted, poor printed, fuzzy barcodes. Auto-Sensing Scan, when the barcode is close, it will be automaticallyscanned by induction, without manual operation. Adjust the scanning window according to theneeds of the scanning scene. Compatible With Multiple operation system, USB interface is plug and play, no need to set upconvenient and fast. It is the best choice for you to improve your work efficiency. It is widely used in retail stores, supermarket, library, hospital, pharmacy and other industries.
Product Features:
• 300,000 pixels global shutter, with 2M/s Motion Tolerance.
• Fast decoding speeds at 120 FPS/s.
• Precision: 4 mils (3mils supports customization.)
• Easily read the paper, plastic, mobile phones, LCD displays, etc., and even high-precision, wrinkled, damaged, or poorly printed bar codes.
• Bright red LEDs for illuminating scanning surfaces.
• Read all mainstream 1D&2D bar codes.
• Support JPOS/OPOS interfaces
Product Specification:
Model No. | IBC-8270 |
Product Name | 1D 2D Wired Desktop Barcode Scanner |
Performance Parameter | |
Light Source | LED White LED |
Image sensor | LED Red light (Osram from Germany) |
Resolution(maximum) | 640*480 pixels Global Shutter |
Print contrast ratio(minimum) | 0.102mm / 4mils |
Motion tolerance | ≥15% |
Reading Angle | 2M/sec |
Image field of view | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° |
Decoding Capability | 1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. |
2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code | |
Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. | |
Reading Indicators | LED/Buzzer(adjustable tone) |
Typical depth of Field (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) |
5mil CODE128: 1mm—80mm |
5mil EAN-13: 1mm—80mm | |
13.34mil EAN-13 : 5mm—245mm | |
5mil PDF417 : 5mm—70mm | |
10mil PDF417: 5mm—180mm | |
15mil PDF417 : 10mm—280mm | |
20mil DM : 5mm—80mm | |
Physical characteristics | |
Color available | Black&Orange&Blue |
Dimensions(L*W*H) | 112*101*164mm |
Weight | 313g |
Cable | 1.6m |
Electrical Parameter | |
Current | Working current(Standard): < 300 mA Standby current(Standard): < 210 mA |
Input Voltage | 5 VDC (+/-5%)/500mA |
Environmental Parameter | |
ESD protection | Contact discharge: 8 kV; Air discharge: 15kV |
Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. |
Temperature | Operation: -20 to 40 °C |
Storage/Transport: -40 to 70 °C | |
Humidity(non-condensing) | 5 – 95% |
Ambient light | 0 -100,000 lux |
Interfaces | |
Interfaces | RS-232; USB HID; USB COM; HID POS available as per customer’s needs |
