1D 2D Image CMOS Qr Code Barcode Scanner 2.4GHz Handheld Wireless Barcode Scanner
Product Description:

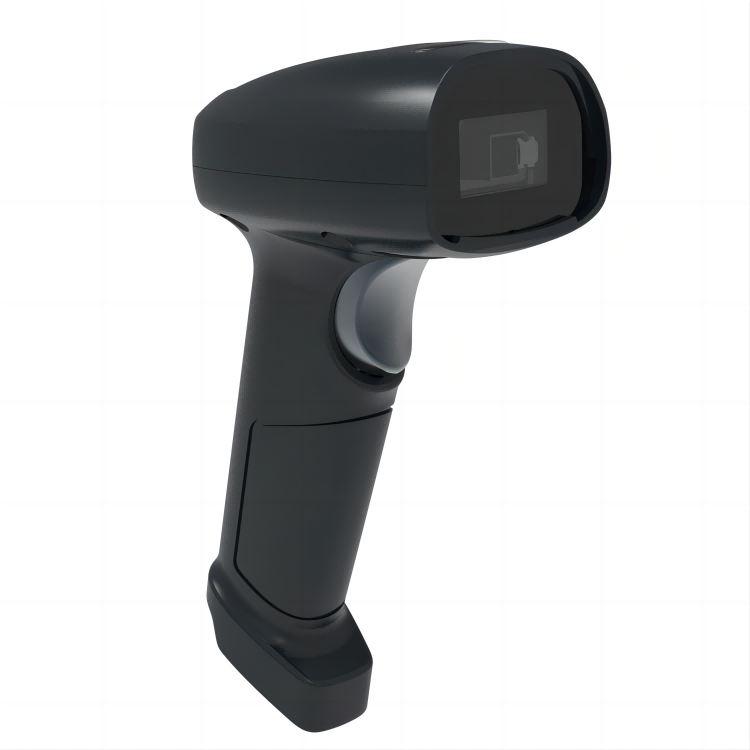

IBC-1300R, it is handheld wired and wireless 2D QR Code Reader. It can scan various 1D and 2D codes. It supports mobile payment goods scanning. This handheld barcode scanner can be easy to operated, plug and play. It is with excellent code scanning performance, widely adaptable to various application scenarios, including supermarkets, convenience stores, hospitals, pharmacies, shoe and clothing stores, tobacco stores, express logistics, warehouse inventory, etc; it is more convenient to scan the QR code to check out.
Product Features:
● Wireless distance: long-distance wireless communication technology is used to achieve mobile scanning within a range of 100m (open space).
● Lithium-ion battery: high-density 2500mAh lithium-ion battery is used, and a full charge supports 5 hours of continuous work.
● Unique decoding technology: using the world’s top decoding algorithm, various one-dimensional and two-dimensional barcodes can be quickly and accurately interpreted.
● High-performance scanning technology: supports scanning of various high-density, damaged and deformed barcodes.
Product Specification:
Model No: IBC-1300R |
Product Name: Handheld 1D 2D Wireless Barcode Scanner |
Physical Characteristics |
Dimensions: 160mm x 64mmx 97mm |
Weight: 188g |
Voltage: +4.2V±10% VDC |
Starting Current: 220mA |
Stand-by Current: 165mA |
Work Current: 260mA |
Performance Characteristics |
Image (Pixels): 640 pixels (H) x 480 pixels (V) |
Light Source: (Aimer) Red color LED; (lllumination) White color LED |
Wireless signal: 2.4 -2.5 GHz bandwidth range |
Roll / Pitch / Yaw: 65°(Yaw), 65°(Pitch), 360°(Roll) |
Print Contrast: 20% minimum reflective difference |
Interfaces Supported: 2.4G (bluetooth optional) |
Battery Specification: 3.7/2500mAh |
Charging Time: 3.5 hours |
Communication Distance: 100m (open space) |
Storage Capacity: 20,000 records (13 characters per record) |
Symbology Decode Capability |
1D: Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industial, Straight 2 of 5 IATA,Matrix 2 of 5,Code 11, Code 128, GS1-128, UPC- A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post (Hong Kong 2 of 5), Korea Post. 2D: Codeblock A, Codeblock F, PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN. |
User Environment |
Humidity: 5% to 95% relative humidity,non-condensing |
Shock Specifications: Designed to withstand 1.5m(5’) drops |
Ambient Light Immunity: 0-100,000 Lux. |
Decode Ranges |
Code39 (5mil): 20mm-95mm |
Code39 (13mil): 30mm-200mm |
Alipay payment code (3*3cm): 60mm-490mm |
Performance may be impacted by bar code quality and environmental conditions |
