1D 2D Bar Code Scanning USB Wired CMOS Image Screen QR Code Reader Handheld Barcode Scanner

1D 2D Bar Code Scanning USB Wired CMOS Image Screen QR Code Reader Handheld Barcode Scanner

We can custom logo ,label,box,etc as your requirements totally,just contact me for accurate price!

*Get A Free Quote With No Obligation

1D 2D Bar Code Scanning USB Wired CMOS Image Screen QR Code Reader Handheld Barcode Scanner

Product Description:

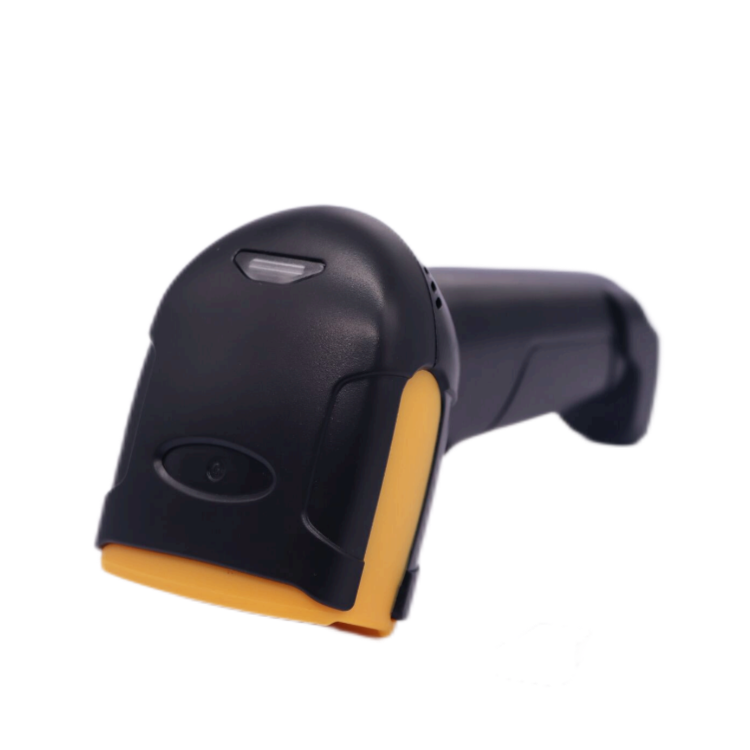

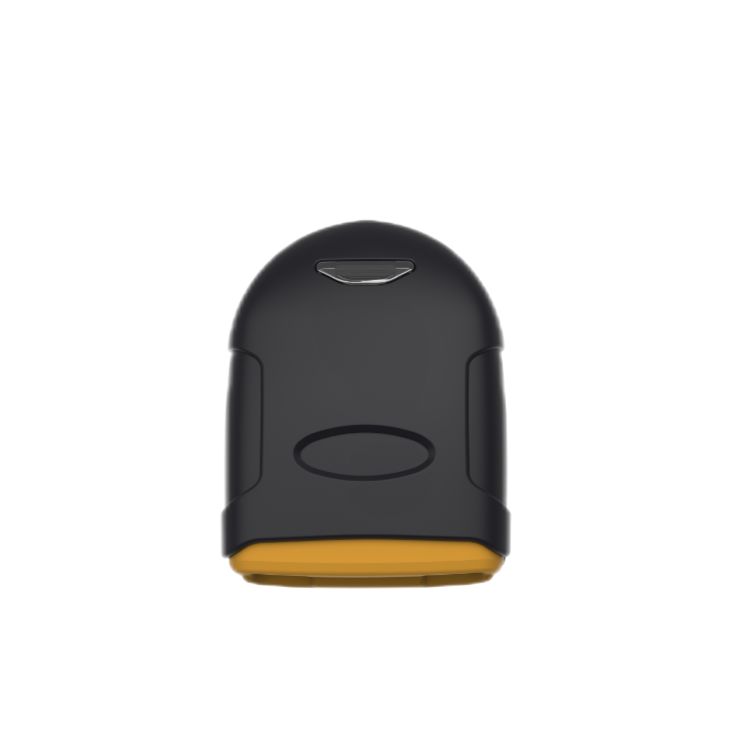

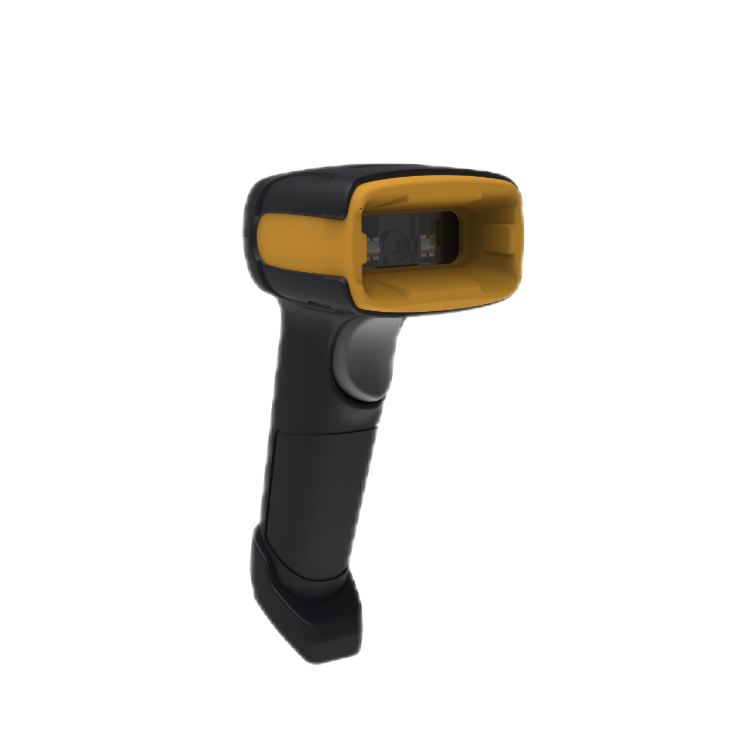

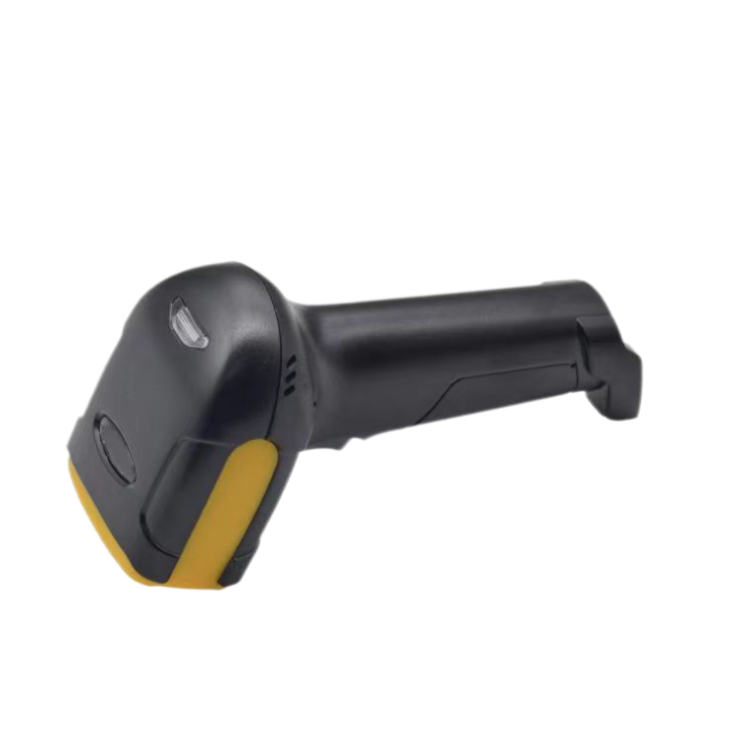

IBC-2800, it is handheld wired 2D QR Code Reader. Ultra fast decoding system. Multiple Configuration Options. The most advanced decoding algorithm is adopted, which can quickly decode various types of barcodes and quickly transmit them to various terminal devices. It can scan various 1D and 2D codes. It supports mobile payment goods scanning. This handheld barcode scanner can be easy to operated, plug and play. It is with excellent code scanning performance, widely adaptable to various application scenarios, including supermarkets, convenience stores, hospitals, pharmacies, shoe and clothing stores, tobacco stores, express logistics, warehouse inventory, etc; it is more convenient to scan the QR code to check out.

Product Features:

● Strong Decoding Ability, VARIATY OF BARCODE DECODING.
● Much more smoothly to read the screen barcode either 1D and 2D. Support Alipay and Wechat.
● Ultra fast decoding system.
● Widely used in the areas of retail, hospital, logistics, and manufacture.

Product Specification:

Model No. IBC-2800
Product Name Handheld 1D 2D Wired Barcode Scanner
Physical Characteristics
Dimensions: 160mm x 97mmx 64mm
Weight: 140.5g
Voltage: 5V
Starting Current: 160mA
Stand-by Current: 120mA
Work Current: 330mA
 Interfaces Supported: USB
Prompting Mode: LED, Buzzer
Performance Characteristics
Image (Pixels): 640 pixels (H)x480 pixels (V)
Light Source: (Aimer) Red color LED; (Illumination) White color LED
Field of View: 28°(H) , 20°(V)
Roll / Pitch / Yaw: 360°,   ±65°,   ±65°
Print Contrast: 20% minimum reflective difference
Motion Tolerances: 40cm/s
Symbology Decode Capability
1D:  Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industial, Straight 2 of 5 IATA,Matrix 2 of 5,Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/ JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post (Hong Kong 2 of 5), Korea Post.
2D:  Codeblock A, Codeblock F, PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN.
Minimum Resolution:  ≥4mil
User Environment
Operating Temperature: -20°C to 60°C
Storage Temperature: -30°C to 70°C
Humidity: 5% to 95% relative hum idity,non-condensing
Shock Specifications: Designed to withstand 1.2m(5’) drops
Ambient Light Immunity: 0-100,000 Lux.
Decode Ranges
Code39(5mil):30mm-80mm Code39(13mil):30mm-180mm
Performance may be impacted by bar code quality and environmental conditions.
